Electronic modules for brakes
The product range of Kendrion contains a variety of electronic components for the control of electromagnetic actuators such as brakes and clutches. A variety of the properties of actuators can be considerably improved using control modules. Reaction times are significantly optimised by overexcitation functions and fast shutdown.
Lowering of the holding voltage improves the thermal behaviour of the actuator and saves energy. There are suitable electronic modules available for different classes of actuators. Depending on the mounting conditions, there are a variety of connection concepts.
Kendrion as a result provides the optimum complementary control electronics for electromagnetic brakes and clutches for all applications.
Products
(46)
|
Title
|
Type
|
Rectifier type
|
Input voltage range (V)
|
Max. current (A)
|
Quick shut down
|
Overexcitation time (s)
|
Temperature range
|
Connector type
|
Certification
|
Output voltage (V)
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Bridge Rectifier - Universal Collection | 32 07323B40 | Bridge Rectifier | 0 bis 500 | 2 | yes over external contact | - | -20…80°C | Screw Terminal | - | Uin x 0, 89 | |
|
|
Half-Wave-Rectifier - Universal Collection | 32 07332B40 | Half-Wave-Rectifier | 0 bis 500 | 2 | yes over external contact | - | -40…100°C | Screw Terminal | - | Uin x 0, 45 | |
|
|
Bridge Rectifier - Universal Collection | 32 07333B40 | Bridge Rectifier | 0 bis 500 | 2 | yes over external contact | - | -40…100°C | Screw Terminal | - | Uin x 0, 89 | |
|
|
Half-Wave-Rectifier - Universal Collection | 32 07332B43UL | Half-Wave-Rectifier | 0 bis 270 | 2 | yes over external contact | - | -40…100°C | Screw Terminal | UL | Uin x 0, 45 | |
|
|
Bridge Rectifier - Universal Collection | 32 07333B43UL | Bridge Rectifier | 0 bis 270 | 2 | yes over external contact | - | -40…100°C | Screw Terminal | UL | Uin x 0, 89 | |
|
|
Overexcitation Rectifier - Universal Collection | 32 77303B00 | Overexcitation Rectifier | 220 bis 500 | 2, 0/1, 0 | yes | 0, 25 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | |
|
|
Hybrid Rectifier - Universal Collection | 32 67304B00 | Hybrid Rectifier | 220 bis 500 | 1, 0/1, 0 | yes | 0, 25 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | |
|
Bridge Rectifier - BEG-142-270 | 13046388 | Bridge Rectifier | 0 bis 270 | 1, 0 | no | - | -40…80°C | Screw Terminal | UL / CSA | Uin x 0, 89 | |
|
|
Bridge Rectifier - BEG-143-270 | 13046390 | Bridge Rectifier | 0 bis 270 | 1, 0 | no | - | -40…80°C | Screw Terminal | UL / CSA | Uin x 0, 89 | |
|

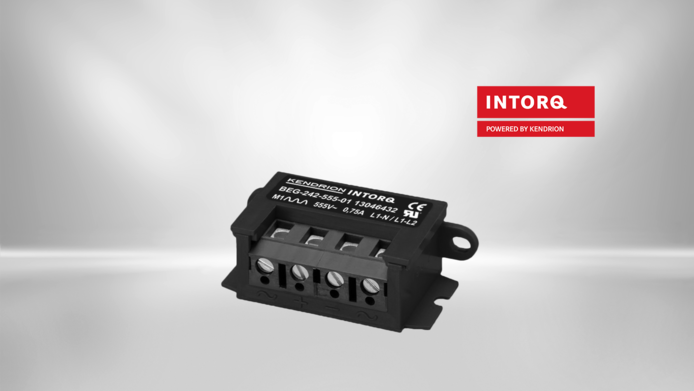

Half-Wave-Rectifier - BEG-242-555-01 | 13046432 | Half-Wave-Rectifier | 0 bis 555 | 1, 0 | no | - | -40…80°C | Screw Terminal | UL / CSA | Uin x 0, 45 | |
|
|
Half-Wave-Rectifier - BEG-243-555-01 | 13046434 | Half-Wave-Rectifier | 0 bis 555 | 1, 0 | no | - | -40…80°C | Screw Terminal | UL / CSA | Uin x 0, 45 | |
|
Bridge Rectifier - BEG-162-270 | 13046436 | Bridge Rectifier | 0 bis 270 | 0, 75 | over contact | - | -40…80°C | Screw Terminal | UL / CSA | Uin x 0, 89 | |
|
|
Bridge Rectifier - BEG-161-270 | 13046437 | Bridge Rectifier | 0 bis 270 | 0, 75 | over contact | - | -40…80°C | Screw Terminal | UL / CSA | Uin x 0, 89 | |
|
Half-Wave-Rectifier - BEG-262-460-01 | 13046438 | Half-Wave-Rectifier | 0 bis 460 | 0, 75 | over contact | - | -40…80°C | Screw Terminal | UL | Uin x 0, 45 | |
|
|

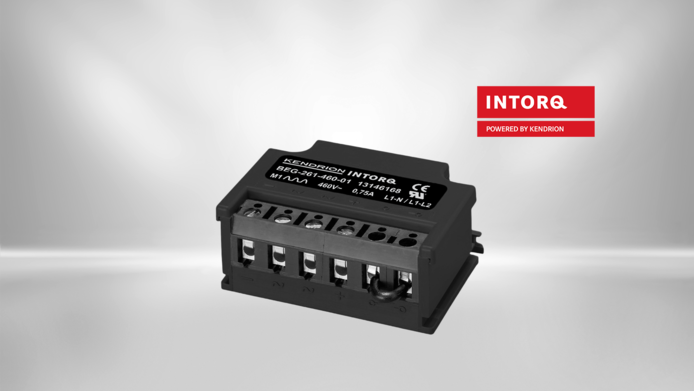

Half-Wave-Rectifier - BEG-261-460-01 | 13046439 | Half-Wave-Rectifier | 0 bis 460 | 0, 75 | over contact | - | -40…80°C | Screw Terminal | UL | Uin x 0, 45 | |
|
|
Half-Wave-Rectifier - BEG-262-555-01 | 13046440 | Half-Wave-Rectifier | 0 bis 555 | 0, 75 | over contact | - | -40…80°C | Screw Terminal | UL | Uin x 0, 45 | |
|
|
Half-Wave-Rectifier - BEG-261-555-01 | 13046441 | Half-Wave-Rectifier | 0 bis 555 | 0, 75 | over contact | - | -40…80°C | Screw Terminal | UL | Uin x 0, 45 | |
|
|
Bridge Rectifier - BEG-161-250-000-1 | 13046442 | Bridge Rectifier | 0 bis 250 | 0, 75 | over contact | - | -40…80°C | Screw Terminal | UL / CSA | Uin x 0, 89 | |
|

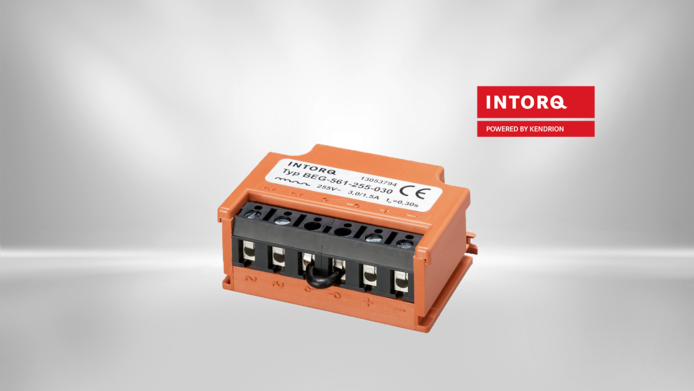

Overexcitation Rectifier - BEG-561-255-030 | 13053794 | Overexcitation Rectifier | 160 bis 235 | 3, 0 / 1, 5 | over contact | 0, 3 | -40…70°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - BEG-561-255-030-3 | 33005324 | Overexcitation Rectifier | 160 bis 255 | 1, 5 / 0, 75 | over contact | 0, 3 | -40…70°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | |
|
|
Overexcitation Rectifier - BEG-561-255-130 | 13053795 | Overexcitation Rectifier | 160 bis 235 | 3, 0 / 1, 5 | over contact | 1, 3 | -40…70°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 |
