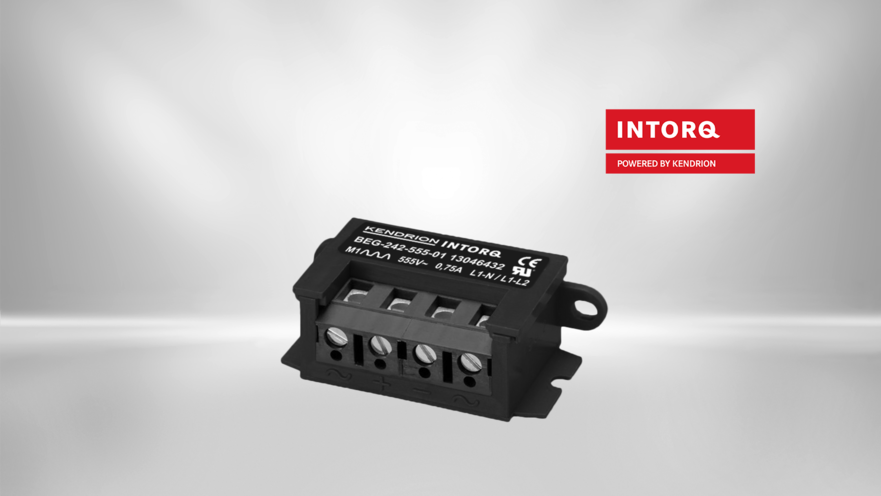

Half-Wave-Rectifier - BEG-242-555-01
13046432
The Compact Collection 4-pole half-wave rectifiers conduce to supply electromagnetic DC-brakes and clutches with half-wave rectified AC voltage.
Technical details
| Description | Value |
|---|---|
| Rectifier type | Half-Wave-Rectifier |
| Input voltage range | 0 bis 555 V |
| Max. current | 1,0 A |
| Quick shut down | no |
| Overexcitation time | - s |
| Temperature range | -40…80°C |
| Connector type | Screw Terminal |
| Certification | UL / CSA |
| Output voltage | Uin x 0,45 V |
