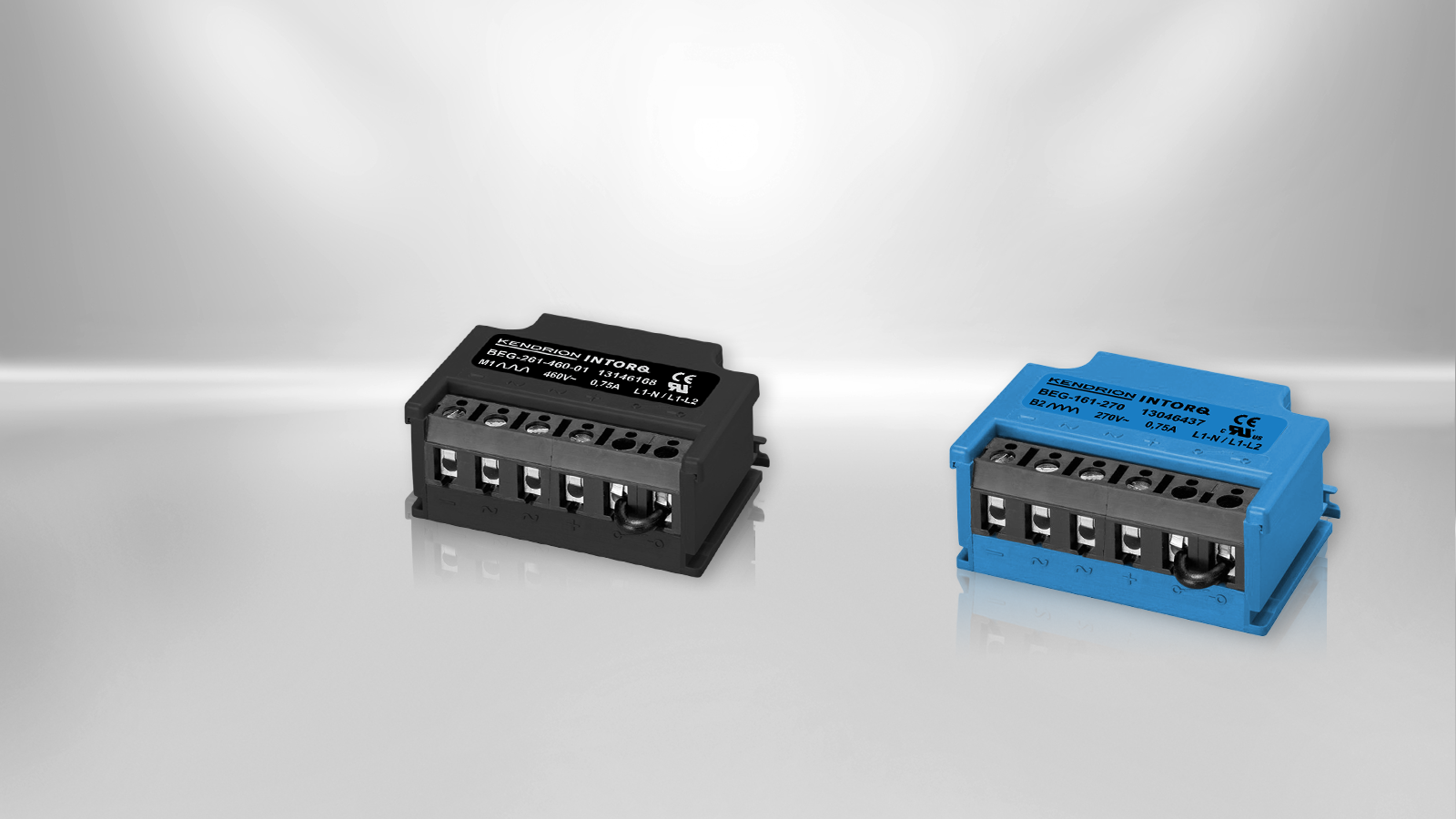

Electronic modules for brakes
The product range of Kendrion contains a variety of electronic components for the control of electromagnetic actuators such as brakes and clutches. A variety of the properties of actuators can be considerably improved using control modules. Reaction times are significantly optimised by overexcitation functions and fast shutdown.
Lowering of the holding voltage improves the thermal behaviour of the actuator and saves energy. There are suitable electronic modules available for different classes of actuators. Depending on the mounting conditions, there are a variety of connection concepts.
Kendrion as a result provides the optimum complementary control electronics for electromagnetic brakes and clutches for all applications.
Products
(46)
show results as grid
show results as list
|
Title
|
Type
ascending
descending
|
Rectifier type
ascending
descending
|
Input voltage range (V)
ascending
descending
|
Max. current (A)
ascending
descending
|
Quick shut down
ascending
descending
|
Overexcitation time (s)
ascending
descending
|
Temperature range
ascending
descending
|
Connector type
ascending
descending
|
Certification
ascending
descending
|
Output voltage (V)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

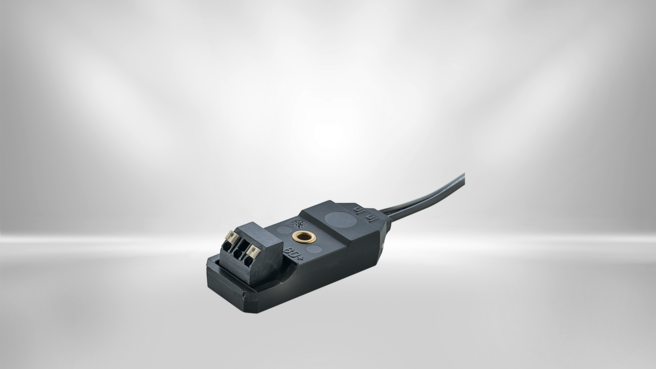

Overexcitation Rectifier - Slim Collection
|
32 77101B53 | Overexcitation Rectifier | 100 bis 240 | 2, 0/1, 0 | yes | 0, 25 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 / 0, 45 | to the product |
|
|
Overexcitation Rectifier - Slim Collection
|
32 17101B53 | Overexcitation Rectifier | 100 bis 240 | 2, 0/1, 0 | no | 0, 25 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 / 0, 45 | to the product |
|
|
Overexcitation Rectifier - Slim Collection
|
32 77101B50 | Overexcitation Rectifier | 220 bis 500 | 2, 0/1, 0 | yes | 0, 25 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 / 0, 45 | to the product |
|
|
Overexcitation Rectifier - Slim Collection
|
32 17101B50 | Overexcitation Rectifier | 220 bis 500 | 2, 0/1, 0 | no | 0, 25 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 / 0, 45 | to the product |
|
|
Bridge Rectifier - Slim Collection
|
32 07103B53 | Bridge Rectifier | 0 bis 240 | 0, 8 | no | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 | to the product |
|
|
Bridge Rectifier - Slim Collection
|
32 67103B53 | Bridge Rectifier | 100 bis 240 | 0, 8 | yes | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 | to the product |
|
|
Bridge Rectifier - Slim Collection
|
32 07103B50 | Bridge Rectifier | 0 bis 500 | 0, 7 | no | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 | to the product |
|
|
Bridge Rectifier - Slim Collection
|
32 67103B50 | Bridge Rectifier | 220 bis 500 | 0, 7 | yes | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 89 | to the product |
|
|
Half-Wave Rectifier - Slim Collection
|
32 07102B53 | Half-Wave-Rectifier | 0 bis 240 | 0, 5 | no | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 45 | to the product |
|
|
Half-Wave Rectifier - Slim Collection
|
32 07102B50 | Half-Wave-Rectifier | 0 bis 500 | 0, 5 | yes | - | -20…80°C | Spring Clamp | UL (ab Q2/2022) | Uin x 0, 45 | to the product |
|
|
PWM-Module - Slim Collection
|
34 10125C01 | PWM Module | 24 bis 48 | 4, 0/2, 0 | no | 0, 2 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | 16, 8 VDC | to the product |
|
|
PWM-Module - Slim Collection
|
34 70125C01 | PWM Module | 24 bis 48 | 4, 0/2, 0 | yes | 0, 2 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | 16, 8 VDC | to the product |
|
|
PWM-Module - Slim Collection
|
34 10125C02 | PWM Module | 24 bis 48 | 4, 0/2, 0 | no | 0, 2 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | 12 VDC | to the product |
|
|
PWM-Module - Slim Collection
|
34 70125C02 | PWM Module | 24 bis 48 | 4, 0/2, 0 | yes | 0, 2 | -20…80°C | Spring Clamp | UL (ab Q2/2022) | 12 VDC | to the product |
|

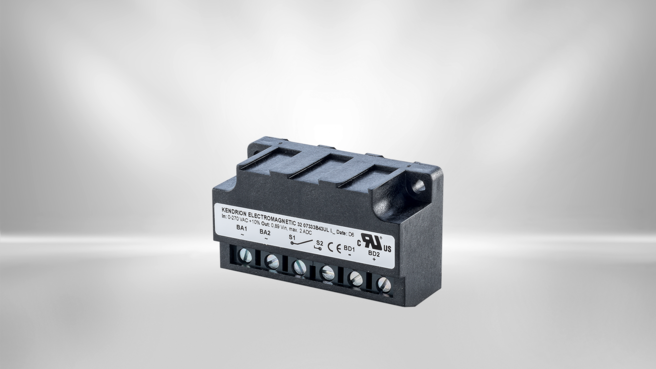

Overexcitation Rectifier - Universal Collection
|
32 17320B00 | Overexcitation Rectifier | 220 bis 500 | 2, 0/1, 0 | yes over external contact | 0, 25 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | to the product |
|
|
Overexcitation Rectifier - Universal Collection
|
32 17320B03 | Overexcitation Rectifier | 110 bis 240 | 3, 0/1, 5 | yes over external contact | 0, 25 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | to the product |
|
|
Overexcitation Rectifier - Universal Collection
|
32 17320B13 | Overexcitation Rectifier | 110 bis 240 | 3, 0/1, 5 | yes over external contact | 0, 5 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | to the product |
|
|
Overexcitation Rectifier - Universal Collection
|
32 17320B23 | Overexcitation Rectifier | 110 bis 240 | 3, 0/1, 5 | yes over external contact | 1, 1 | -20…80°C | Screw Terminal | - | Uin x 0, 89 / 0, 45 | to the product |
|
|
Overexcitation Rectifier - Universal Collection
|
32 17321B00 | Overexcitation Rectifier | 220 bis 500 | 2, 0/1, 0 | yes over external contact | 0, 25 | -20…80°C | Screw Terminal + Brainds | - | Uin x 0, 89 / 0, 45 | to the product |
|
|
Overexcitation Rectifier - Universal Collection
|
32 17321B00 | Overexcitation Rectifier | 220 bis 500 | 3, 0/1, 5 | yes over external contact | 0, 25 | -20…80°C | Screw Terminal + Brainds | - | Uin x 0, 89 / 0, 45 | to the product |
|
|
Half-Wave Rectifier - Universal Collection
|
32 07322B40 | Half-Wave-Rectifier | 0 bis 500 | 2 | yes over external contact | - | -20…80°C | Screw Terminal | - | Uin x 0, 45 | to the product |
