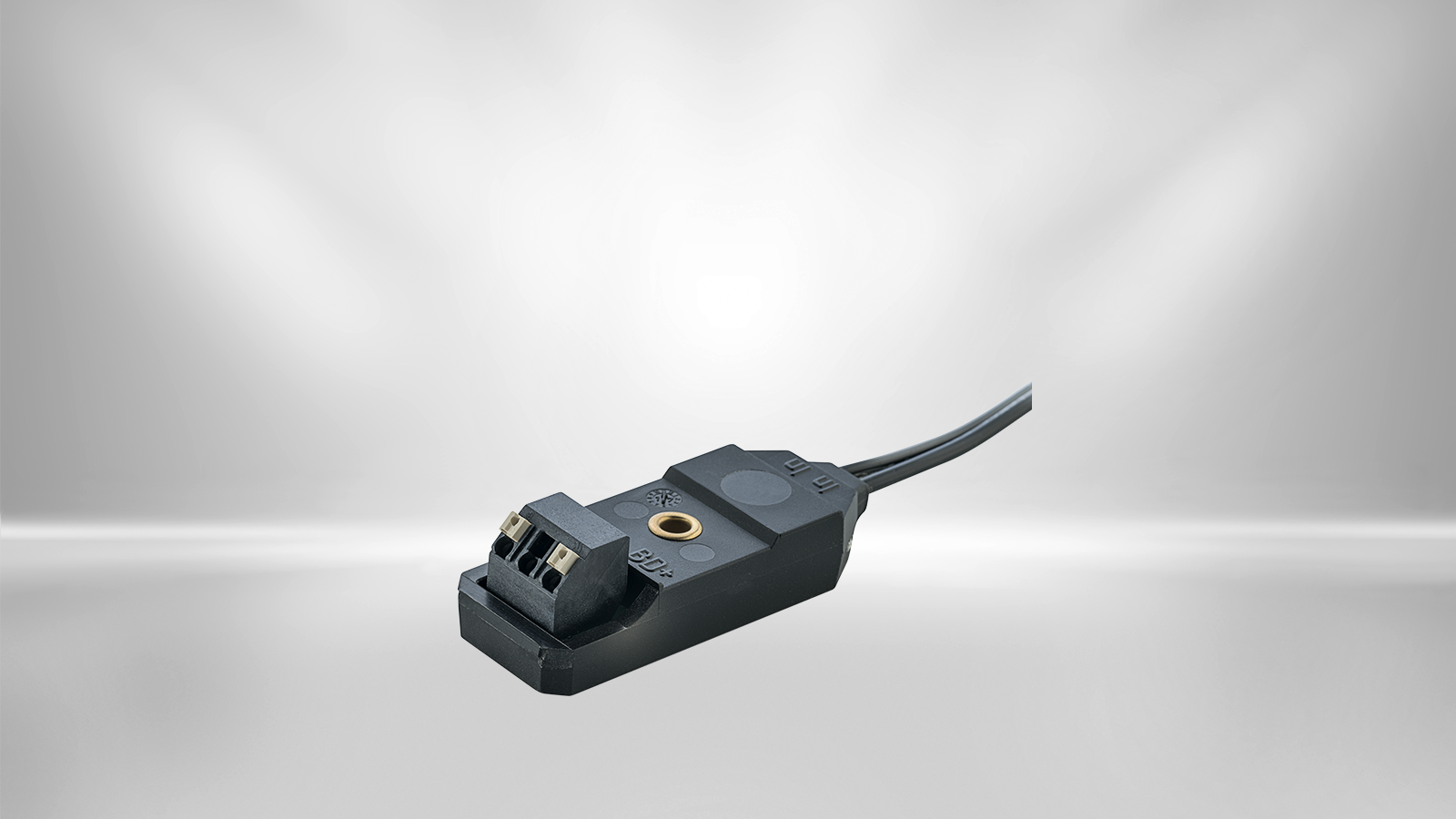

Overexcitation Rectifier - Slim Collection

32 17101B53

Thanks to its extremely compact design, the overexcitation rectifier can be installed in very restricted space. The module features a central bore for screw fixing inside the terminal box. It can also be installed by using an adhesive pad. These types of Slim Collection AC operate as a time controlled rectifier with integrated electronic fast turn-off through voltage detection.



Features


  •  Very small design
  • Cost-effective
  • Versatile options for assembly and connection through central hole
  • Overexcitation function
  • Integrated fast shutdown
  • Energy savings up to 75%
  • Dimensions (LxWxH): 60x24x19 mm
Page as a PDF

Technical details

Description Value
Rectifier type Overexcitation Rectifier
Input voltage range 100 bis 240 V
Max. current 2,0/1,0 A
Quick shut down no
Overexcitation time 0,25 s
Temperature range -20…80°C
Connector type Spring Clamp
Certification UL (ab Q2/2022)
Output voltage Uin x 0,89 / 0,45 V
