Inductors for surface and contour

Efficient, contactless inductors for precise temperature control and uniform heat distribution in industrial heating applications on surfaces and contours.

Surface and Contour Inductors – precise and uniform heating

Surface and contour inductors enable contactless heating of flat and curved tool and component surfaces. Electromagnetic induction generates heat directly within the electrically conductive material, delivering energy precisely where it is needed.

The uniform energy input during inductive heating enables precise temperature control and high process dynamics Since no heating media such as thermal oil or steam are required, infrastructure and maintenance costs are reduced. In addition, thinner tool walls can reduce thermal mass and, consequently, energy consumption.

Benefits at a glance

  • Uniform, widespread heat input
  • Tools with thinner walls are possible
  • Higher process dynamics due to lower thermal mass
  • Non-contact and reproducible
  • Continuous operation up to 300°C
  • Lower infrastructure costs
  • Designed for the application’s geometry and temperature

Typical applications

  • Food industry
  • Packaging technology
  • Graphic arts industry
  • Vessel and equipment manufacturing

Applications of induction systems for surface and contour

Food industry

Uniform heating of tools and process surfaces in food processing.

Packaging technology

Heating of tools in packaging machines.

Vessel and equipment manufacturing

Heating of domed vessels, boilers, and large cylinders using contour inductors.

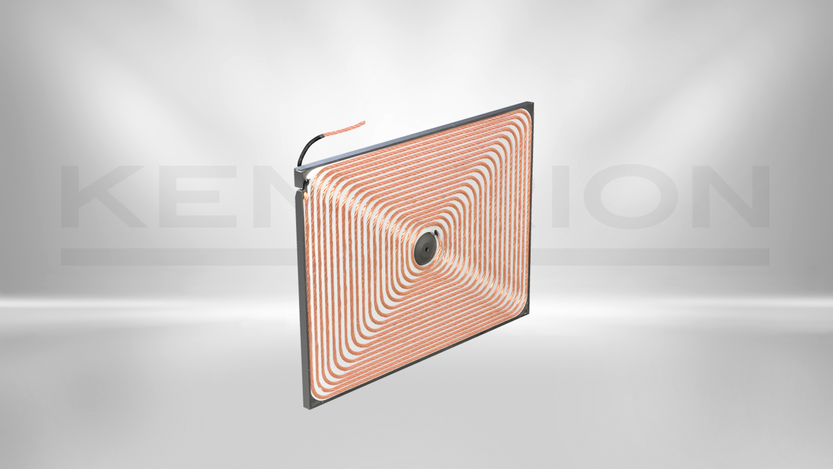

Surface Inductors

Uniform Heating of Flat Surfaces

Surface inductors are designed for the uniform heating of flat or slightly curved tool surfaces. Their design enables targeted heat input across large areas, ensuring reproducible heating processes and precise temperature control.

By generating heat directly within the tool material, thinner tool walls can be used, reducing thermal mass. This enables shorter heating and cooling times, faster process response and lower energy consumption.

Typical applications include heating tools in packaging machines, food processing equipment and embossing tools in the printing industry.

Contour Inductors

Precise heating of curved surfaces

Contour inductors are specifically designed for heating curved surfaces, such as containers, vessels and cylindrical components. Their geometry is adapted to the shape of the component, enabling targeted and uniform heat input even on strongly curved surfaces.

Contactless heating enables precise temperature control without the need for thermal oil, steam or direct contact with the heated surface. The inductors can be customized to the component geometry, material and thermal requirements of the application.

Typical applications include industrial vessels, tanks, cooking pots, woks and large cylinders, particularly in food processing and industrial process heating.

Surface or contour inductor?

Two Questions to Help You Decide

 Surface inductorcontour inductor
Is the surface to be heated flat or only slightly curved?YesNo
Is the surface highly curved, such as in tanks or boilers?NoYes

Not sure?

Send us the geometry, material, desired temperature, and process duration.
We’ll determine which solution is right for you.

Contact now

Are you looking for technical information about our inductors?

Discover our Product Finder!

Our Standard inductors are available in different designs.

To our surface inductors

To our contour inductors

Why heat inductively?

Many systems today still use thermal oil, steam, or infrared for heating. Induction requires no media, no pipes, and no seals. This reduces the risk of leaks and minimizes maintenance requirements. Furthermore, the application generates no waste heat from combustion or the heating medium.

  • Contactless energy transfer with no wear parts on the inductor
  • No water cooling required
  • No thermal oil, no steam, no risk of leaks
  • Fieldbus-compatible; connects to Profinet, CANopen, or EtherCAT via our induction generators
  • Fast, precise temperature control

Download

Brochures and Flyers
Flyer | Inductive Heating
PDF - 667 KB
PDF - 668 KB

FAQs: Inductors for surface and contour

What is the difference between surface inductors and contour inductors?

The main difference lies in the shape of the surface to be heated. Surface inductors are designed for flat or slightly curved tool surfaces, while contour inductors are specifically suited for highly curved surfaces, such as tanks, cooking pots, or large cylinders. Both types enable targeted induction heating of the respective surfaces.

What temperatures can the inductors reach?

The inductors are designed for continuous operation at temperatures of up to 250 °C. Depending on the model, the temperature ranges of the standard models are between 200 °C and 240 °C.

Do the inductors require water cooling?

No, the inductors operate without water cooling.

How are the inductors designed?

The inductors are designed using numerical field calculations and adapted to the specific geometry and thermal requirements.

How are the surface inductors powered?

The surface inductors are designed for use with Kendrion induction generators. For more information, visit Induction Generators.
