Contour inductors
Inductive Heating for Shaped Tool Surfaces
Kendrion contoured heating inductors provide uniform, contactless heating of complex tool surfaces. They are used in plastics processing and food industry applications where precise and reproducible heat distribution is required. The homogeneous energy input enables reduced tool wall thickness, lowers thermal mass, and improves process dynamics while reducing energy consumption. Contoured heating inductors are designed individually for each application using numerical field simulation and are adapted to the specific geometric and thermal requirements.
The systems are suitable for continuous operating temperatures of up to 240 °C and operate without water cooling. This reduces infrastructure and maintenance requirements while increasing operational reliability.
|
Title
|
Type
|
Dimensions (W x H x D)
|
Heated Section
|
Rated power
|
Temperature range
|
Power density
|
Heating circuits
|
Inductor current
|
Inductor voltage
|
Efficency
|
Duty cycle
|
Electrical control
|
Electrical connection
|
Product status
|
Certifications / Standards
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

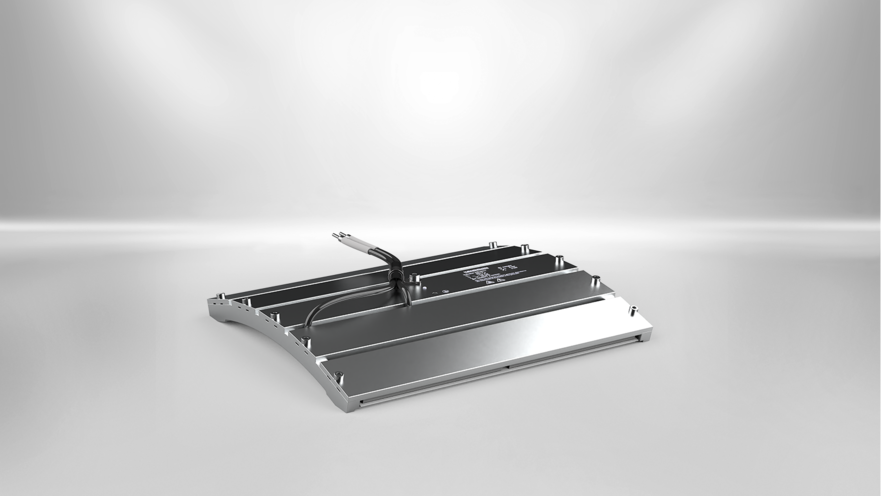

Inductor contour HS10017 | Inductor for heating curved surfaces | 246 mm x 275 mm x 30 mm | approx. 627 cm² | 3, 0 kW | 0 ... 240°C | 48 kW/m² | 1 | 12, 5 A | 500 Vrms | approx. 98 % | 100 % duty cycle | For connection to Kendrion induction generators | stranded wires | Standard Product | Low Voltage Directive |
