Modular I/O
Modular I/O terminal with EtherCAT fieldbus connection

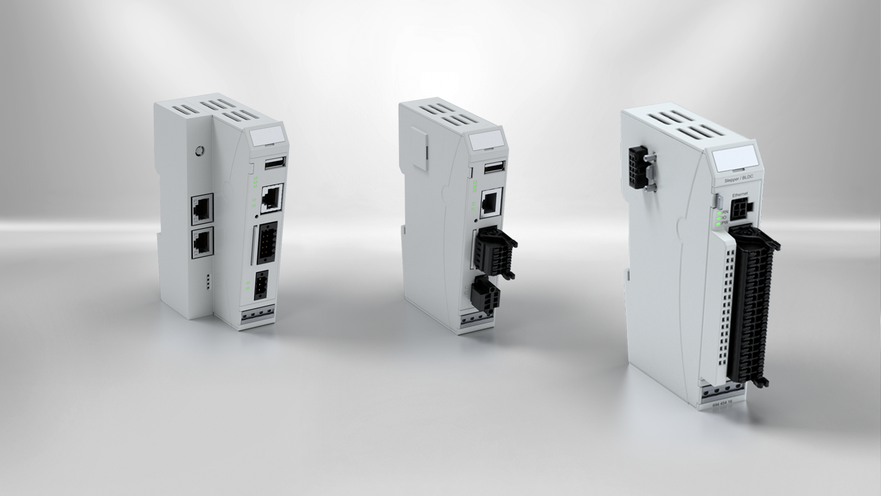

The Kuhnke FIO is a modular I/O terminal with EtherCAT fieldbus connection. The FIO I/O terminal consists of a Bus Coupler or a controller and various I/O modules for connecting the process signals. The EtherCAT protocol is maintained up to the last module. If required, safety technology can be integrated in the form of safety I/O modules. All decentralized EtherCAT Bus Terminals are modularly expandable and are suitable for connecting sensors and actuators in control cabinets.
- EtherCAT down to the last terminal
- Perfect module variety
- Included Safety
Products
(58)
|
Title
|
Type
|
Function
|
Dimensions (W x H x D)
|
Product status
|
Mounting
|
Certifications
|
IP-Protection Class
|
Model
|
Integrated function
|
Field bus interfaces
|
Status indication
|
Housing material
|
Supply voltage
|
Operating temperature
|
Immunity
|
Digital I/Os (integrated)
|
Analogue I/Os (integrated)
|
Interfaces
|
identification-number
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Kuhnke FIO AI4 U/I/R/T 24 Bit |
694 445 51 | analogue - easy configuration | 25 x 120 x 90 mm | In preparation | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | - | 0(4)...20 mA; 0...10 V / -10...+10 V; 0…250 Ohm / 0…500 Ohm / 0…1 kOhm / 0…2 kOhm / 0…5 kOhm / 0…10 kOhm; PT100 / Ni100 oder PT1000 / Ni1000 oder Thermo /Typ B, E, J, K, N, R, S, T | - | - | |
|
Kuhnke FIO DO8 Relay NO |
694 452 05 | Digital OUT Relais | 25 x 120 x 90 mm | standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | outputs: 8 relay outputs, NO, 2A | - | - | - | |
|
|
Kuhnke FIO Mix 111 CoE |
694 444 66 | multifunctional | 25 x 120 x 90 mm | In preparation | - | CE, UL | IP 20 | Control cabinet module | 2 x AI (0…10 V, 12 Bit), 4 x event counter (200kHz), 2 x Encoder A-B-Z (100 kHz), 2 x frequency generator or 4x PTO or 4 x PWM (100 kHz), (Die Nutzung reduziert die Anzahl der verfügbaren IOs) | EtherCAT / CoE | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | 12 x DI 24 V (adjustable filter times), 8 x DO (4 x 24 V 0, 5 A (HighSide) / 4 x 24 V 0, 2 A (PushPull)) | 2 x AI (0…10 V, 0/4 …20 mA, 12 Bit), 2 x AO (0…10 V, 0/4 …20 mA, 12 Bit) | - | - | |
|
|
Kuhnke FIO Stepper Control |
694 454 56 | motion control | 25 x 120 x 90 mm | Standard product | - | CE, UL are prepared | IP 20 | Control cabinet modul | DSP-402 Profile Position, Profile Velocity, Homing | EtherCAT | - | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +50°C | - | Outputs: 3 x 2 phase step-motor, 3 x brake, 1 x 0.5 A / Inputs: 6 x limit switches, 3 x reference | - | 3 x 2 phase stepper motor: supply voltage: 12 - 48 V DC; rated motor current: 1.8 Aeff/axis; peak current 2.5 Aeff/axis; overtemperature protection from 85°C on board | - | |
|
|
Kuhnke FIO OC AI4 12 Bit (CoE) |
694 434 65 | analogue - easy configuration, OC technology | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT / COE | LEDs allocated to the point of termination | IP 20 | 24 V (-15% / +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | - | inputs: 4 AI 0..10V, 0(4)..20mA 12Bit | - | - | |
|
|
Kuhnke FIO DI16 1ms 2-wire |
694 451 43 | Digital IN 2-wire | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 16 DI 1ms, 16 x 24 VDC | - | - | - | |
|
|
Kuhnke FIO OC Counter-Encoder (CoE) |
694 434 53 | Counter, multifunctional, OC technology | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet module | Safe analogue value transmission to the Safety PLC, 2 x counter/encoder: RS422 32Bit 5MHz or 5/24V SE 32 Bit 1, 6 MHz or SSI 18-32 Bit 80-1000kbit/s or EnDAT 2.1 100 kHz-2 MHz or 6 x event counter HTL/TTL 32 Bit 1kHz | EtherCAT / CoE | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | not included | not included | not included | - | |
|
Kuhnke FIO Bus Coupler 3A |
694 400 00 | communication | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LED, EtherCAT Status | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | - | - | - | - | |
|
Kuhnke FIO Bus Coupler DI16-DO16 |
694 400 10 | communication, Digital IN, Digital OUT | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | - | - | - | EtherCAT Status, LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 16 DI 3ms / outputs: 16 DO 0, 5A | - | EtherCAT In/Out | - | |
|
|
Kuhnke FIO DI16 DO16 5ms 0,5A |
694 450 01 | Digital IN, Digital OUT | 25 x 120 x 90 mm | Special edition | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 16 DI 5ms / outputs: 16 DO 0.5A | - | - | - | |
|
|
Kuhnke FIO DI16 DO8 1ms 1A |
694 450 02 | Digital IN, Digital OUT | 25 x 120 x 90 mm | Special edition | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 16 DI 1ms / outputs: 8 DO 1A | - | - | - | |
|
|
Kuhnke FIO DI16 DO16 1ms 0,5A |
694 450 03 | Digital IN, Digital OUT | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 16 DI 1ms / outputs: 16 DO 0.5A | - | - | - | |
|
|
Kuhnke FIO DI8 DO8 5ms 0,5A |
694 450 04 | Digital IN, Digital OUT | 25 x 120 x 90 mm | Special edition | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 8 DI 5ms / outputs: 8 DO 0.5A | - | - | - | |
|
|
Kuhnke FIO DI8 DO8 1ms 0,5A |
694 450 05 | Digital IN, Digital OUT | 25 x 120 x 90 mm | Special edition | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 8 DI 1ms / outputs: 8 DO 0.5A | - | - | - | |
|
|
Kuhnke FIO DI16 DO16 1ms 0,5A LS |
694 450 13 | Digital IN, Digital OUT | 25 x 120 x 90 mm | Special edition | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 16 DI 1ms / outputs: 16 DO 0.5A low switching | - | - | - | |
|
|
Kuhnke FIO DI32 1ms |
694 451 02 | Digital IN | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 32 DI 1ms | - | - | - | |
|
|
Kuhnke FIO DI16 1ms |
694 451 03 | Digital IN | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 16 DI 1ms | - | - | - | |
|
|
Kuhnke FIO DO16 0,5A |
694 452 01 | Digital OUT | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | outputs: 16 DO 0.5A | - | - | - | |
|
|
Kuhnke FIO DO8 1A |
694 452 02 | Digital OUT | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | outputs: 8 DO 1A | - | - | - | |
|
|
Kuhnke FIO DO8 2A |
694 452 06 | Digital OUT | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | outputs: 8 DO 2A (∑max.10A) | - | - | - | |
|
|
Kuhnke FIO DO16 1A 2-wire |
694 452 41 | Digital OUT 2-wire | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | outputs: 16 DO 1.0A, 16 x GND | - | - | - |
