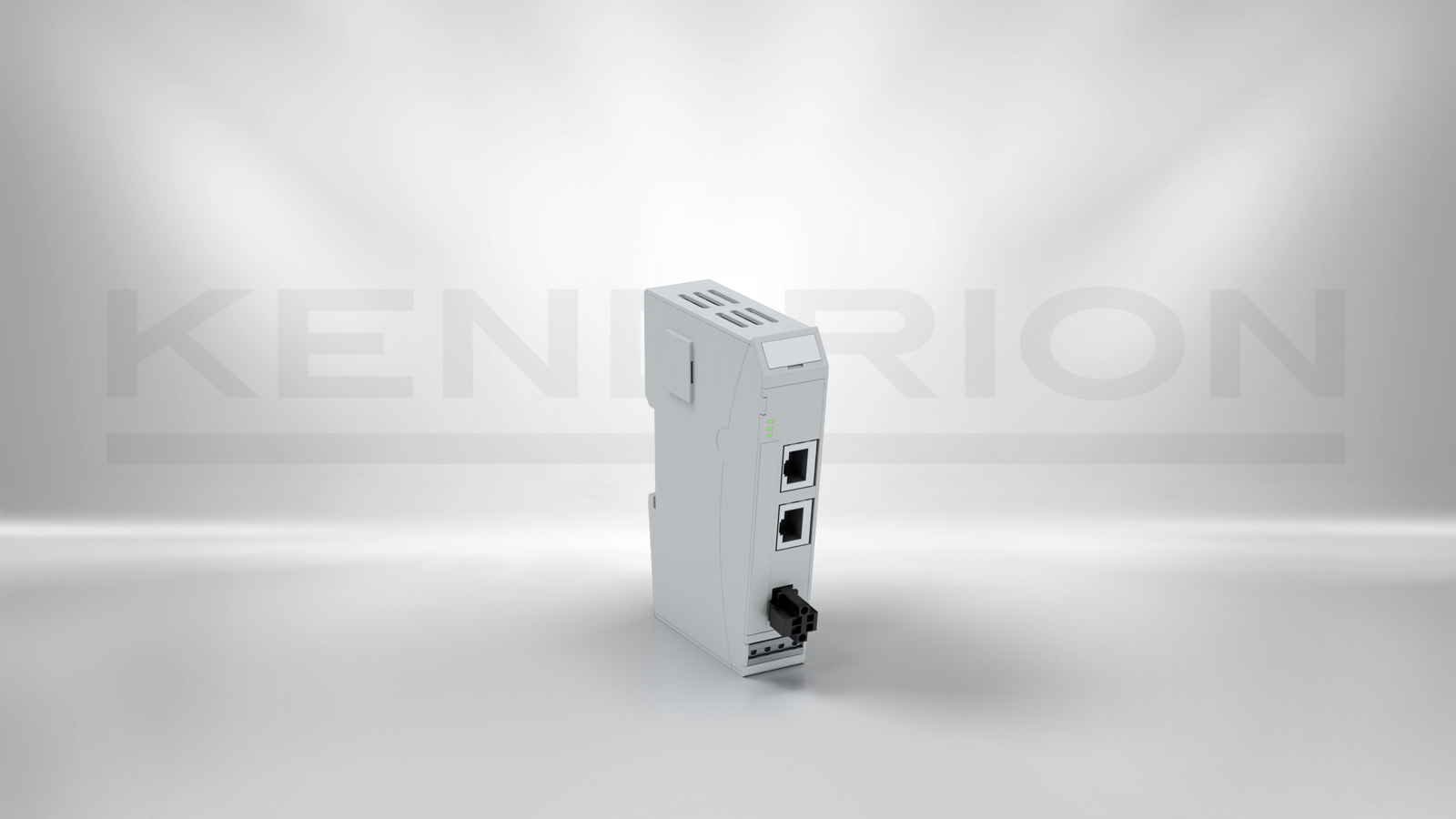

Kuhnke FIO
Bus Coupler 3A

694 400 00

Kuhnke's FIO is a system of I/O modules for interconnecting the process signals in an EtherCAT network. It consists of the bus coupler and a range of I/O modules. The bus coupler converts the physical transfer technology (twisted pair) to LVDS (E-bus) and generates the system voltages required by the LVDS modules. The standard 100 Base Tx lines used for office network communications connect to the one side, the I/O modules for the process signals connect to the other. This is how the EtherCAT protocol is retained right through to the last I/O module. At the end of the modular unit, the feed and return loops are terminated automatically.

  • 2 x RJ45 socket
  • Status display via LEDs
  • Electronics supply for FIO expansion modules 3 A

Technical details

Description Value
Function communication
Model Control cabinet modul
Product status Standard product
Field bus interfaces EtherCAT
Type of connection Spring-assisted connector
Status indication LED, EtherCAT Status
Housing material Aluminium frame, plastic housing
Dimensions (W x H x D) 25 x 120 x 90 mm
IP-Protection Class IP 20
Supply voltage 24 V DC (-15% ... +20%)
Operating temperature 0 ... +55°C
Immunity Zone B according to EN 61131-2
Certifications CE, UL
