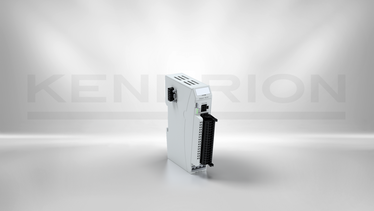

Kuhnke FIO
DI16 DO16 1ms 0,5A LS

694 450 13

The digital Kuhnke FIO I/O modules relay the binary control signals to the actuators and analyze the input signals of the automation device galvanically separated from the process level. The Kuhnke FIO DI16 / DO16 module has 16 outputs (low switching), each output can be loaded with up to 0.5A. In addition, the module offers 16 inputs with an input delay of 1ms. The primary and secondary sides of the module are separated by optocouplers. This galvanic decoupling makes it possible to switch off the supply of the outputs via only one safety component. The signal status of each channel is indicated by LEDs. The generation of a variant that supports distributed clocks is possible on request.

  • 16 digital inputs for 24 VD with input filter 1 ms
  • 16 short-circuit-proof outputs with output current up to 0.5 A, zero-switching
  • Status display locally assigned to the terminal point
  • Fast connection  with PUSH-IN spring connection

Technical details

Description Value
Function Digital IN, Digital OUT
Model Control cabinet modul
Digital I/Os (integrated) inputs: 16 DI 1ms / outputs: 16 DO 0.5A low switching
Product status Special edition
Field bus interfaces EtherCAT
Type of connection female plug with PUSH IN spring connection
Status indication LEDs allocated to the point of termination
Housing material Aluminium frame, plastic housing
Dimensions (W x H x D) 25 x 120 x 90 mm
IP-Protection Class IP 20
Supply voltage 24 V DC (-15% ... +20%)
Operating temperature 0 ... +55°C
Immunity Zone B according to EN 61131-2
Certifications CE, UL
