Kuhnke FIO
Bus Coupler DI16-DO16
694 400 10

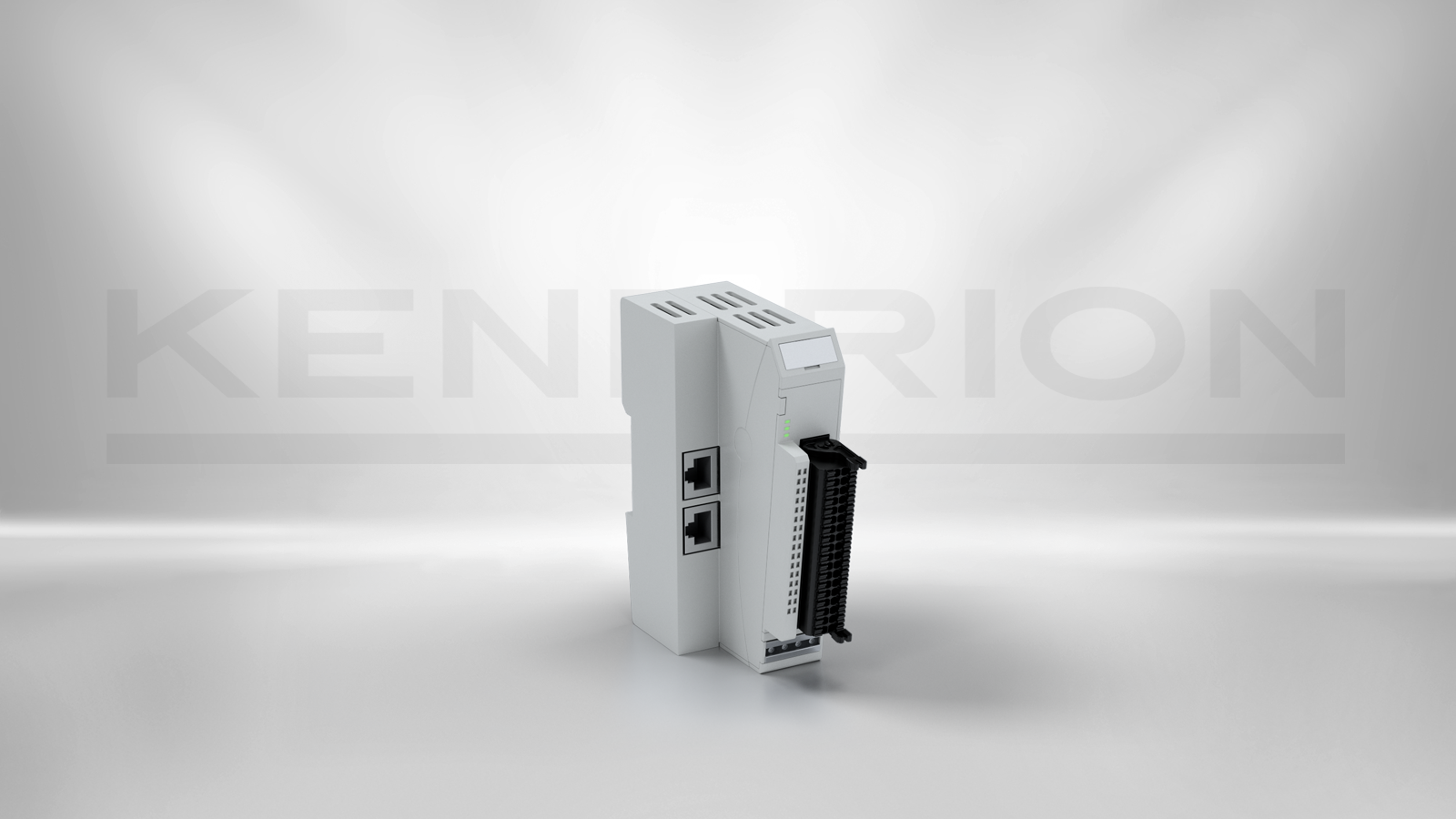

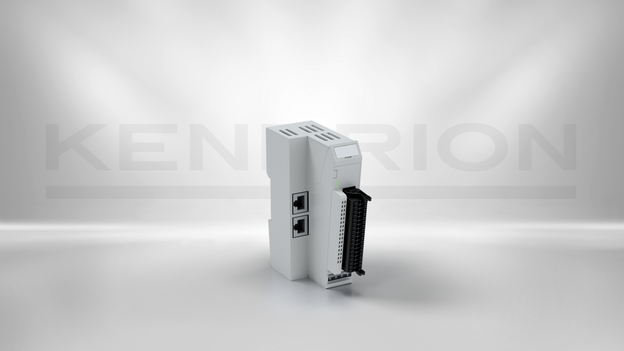

Kuhnkes FIO is a system of I/O modules for interconnecting the process signals in an EtherCAT network. It consists of the bus coupler and a range of I/O modules. The bus coupler converts the physical transfer technology (twisted pair) to LVDS (E-bus) and generates the system voltages required by the LVDS modules. The standard 100 Base Tx lines used for office network communications connect to the one side.
- 2 x RJ45 socket
- Electronic power supply for FIO expansion modules 2 A
- 16 digital inputs for 24 VD with input filter 1 ms
- 16 short-circuit-proof outputs with output current up to 0.5 A
- Status display locally assigned to the terminal point
Technical details
| Description | Value |
|---|---|
| Function | communication, Digital IN, Digital OUT |
| Model | |
| Digital I/Os (integrated) | inputs: 16 DI 3ms / outputs: 16 DO 0,5A |
| Interfaces | EtherCAT In/Out |
| Product status | Standard product |
| Field bus interfaces | |
| Type of connection | Spring-assisted connector |
| Status indication | EtherCAT Status, LEDs allocated to the point of termination |
| Housing material | Aluminium frame, plastic housing |
| Dimensions (W x H x D) | 25 x 120 x 90 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | 24 V DC (-15% ... +20%) |
| Operating temperature | 0 ... +55°C |
| Immunity | Zone B according to EN 61131-2 |
| Certifications | CE, UL |
