Linear solenoids

Discover our Standard portfolio Single stroke solenoids, bistable solenoids and heavy duty solenoids from Kendrion of linear solenoids.


Need some help? Try our new Linear Solenoid Product Guide.

Start Product Guide

Products (105)

High Power Linear Solenoid LHS090

LHS0900009

Duty cycle 100 %
Power consumption 51.9 W
Stroke 25 mm
Inital force 70 N
Go to product

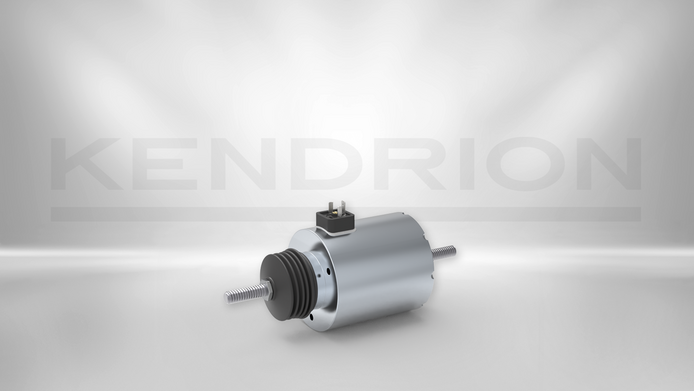

High Power Linear Solenoid LHS100

LHS1000003

Duty cycle 100 %
Power consumption 58 W
Stroke 30 mm
Inital force 70 N
Go to product

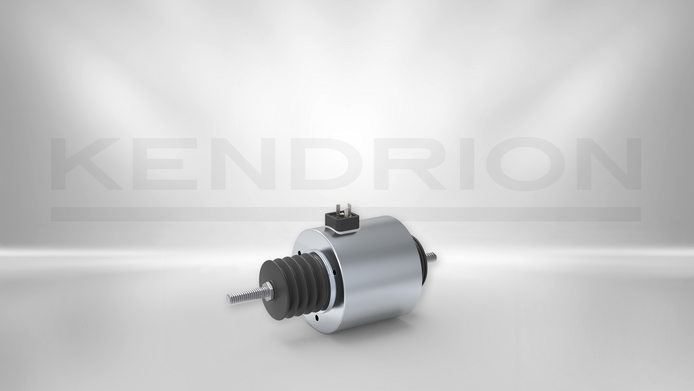

High Power Linear Solenoid LHS115

LHS1150010

Duty cycle 100 %
Power consumption 52.6 W
Stroke 30 mm
Inital force 100 N
Go to product

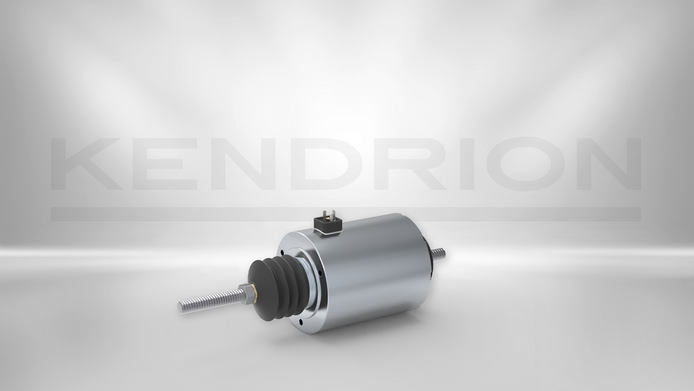

High Power Linear Solenoid LHS135

LHS1350010

Duty cycle 100 %
Power consumption 81.1 W
Stroke 40 mm
Inital force 170 N
Go to product

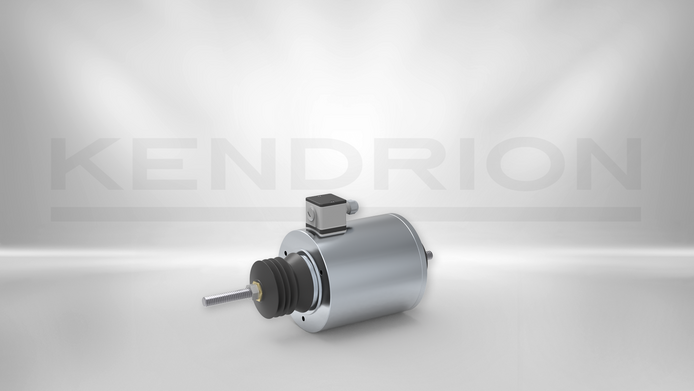

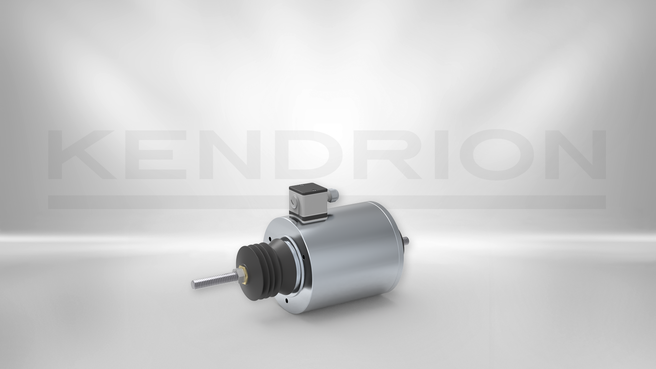

High Power Linear Solenoid LHS170

LHS1700005

Duty cycle 100 %
Power consumption 132 W
Stroke 50 mm
Inital force 280 N
Go to product

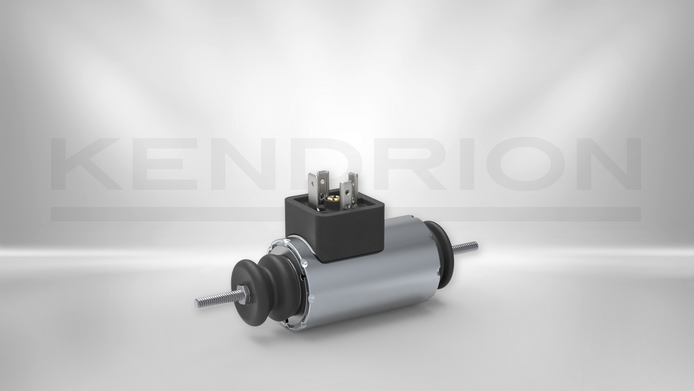

Reversible Linear Solenoid LHR035

LHR0350001

Duty cycle 100 %
Power consumption 12 W
Stroke 7 mm
Inital force 6 N
Go to product

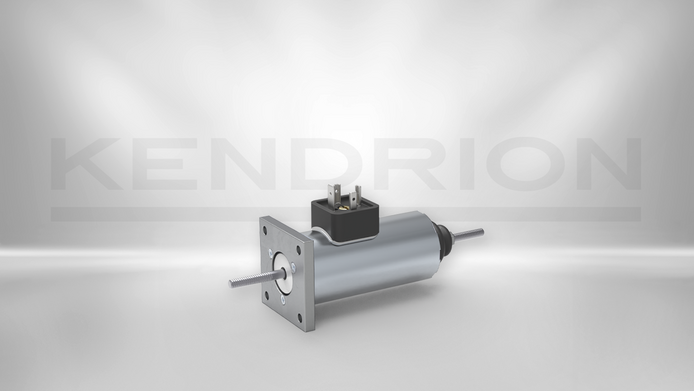

Reversible Linear Solenoid LHR040

1192438

Duty cycle 100 %
Power consumption 19 W
Stroke 8 mm
Inital force 10 N
Go to product

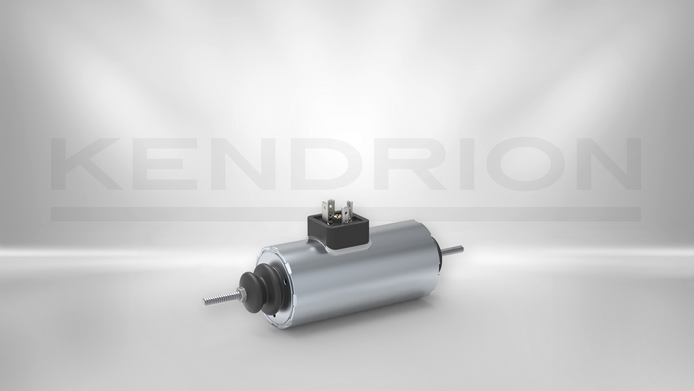

Reversible Linear Solenoid LHR050

1192541

Duty cycle 100 %
Power consumption 18 W
Stroke 10 mm
Inital force 16 N
Go to product

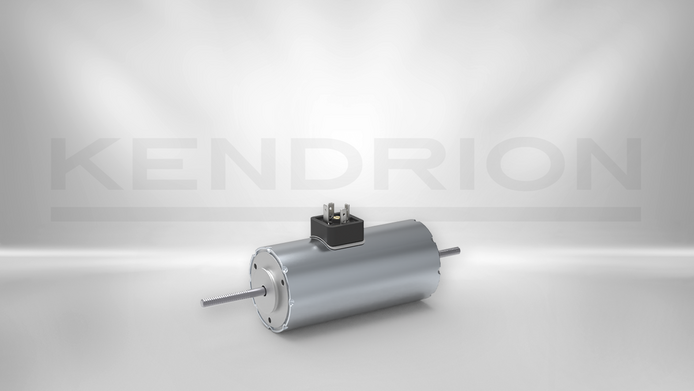

Reversible Linear Solenoid LHR060

1192639

Duty cycle 100 %
Power consumption 28 W
Stroke 12 mm
Inital force 32 N
Go to product

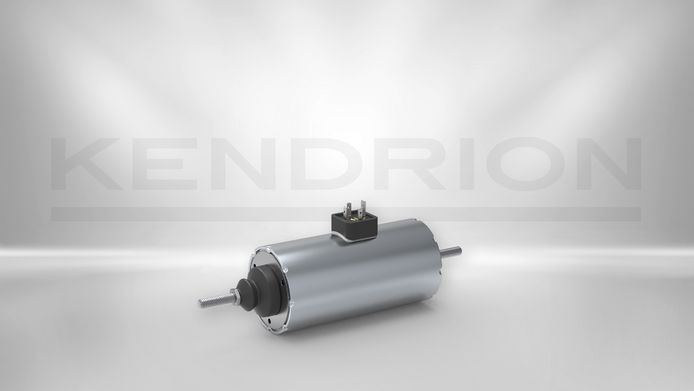

Reversible Linear Solenoid LHR070

1192735

Duty cycle 100 %
Power consumption 34 W
Stroke 15 mm
Inital force 37 N
Go to product

Reversible Linear Solenoid LHR080

LHR0800003

Duty cycle 100 %
Power consumption 45 W
Stroke 20 mm
Inital force 55 N
Go to product

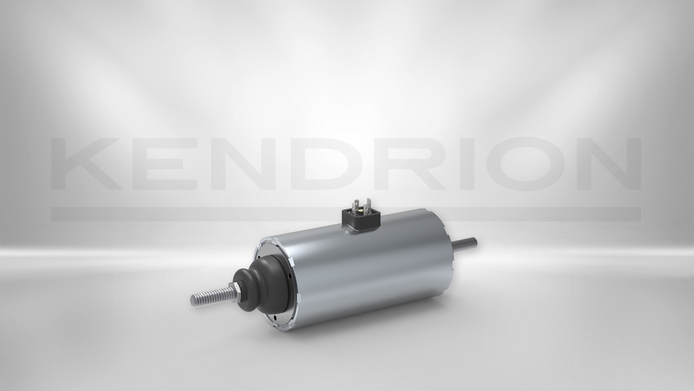

Reversible Linear Solenoid LHR090

LHR0900001

Duty cycle 100 %
Power consumption 52 W
Stroke 25 mm
Inital force 73 N
Go to product

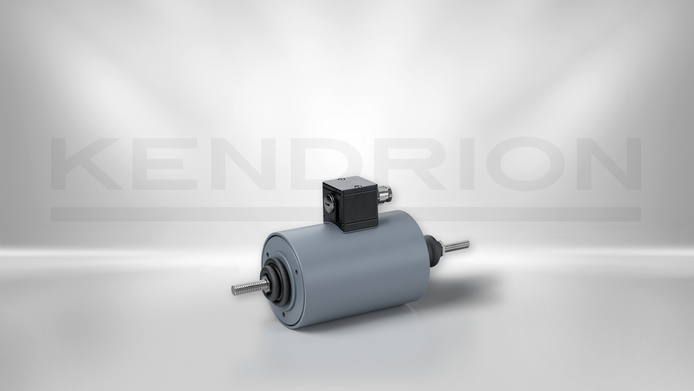

Reversible Linear Solenoid LHR115

LHR1150001

Duty cycle 100 %
Power consumption 50 W
Stroke 30 mm
Inital force 100 N
Go to product

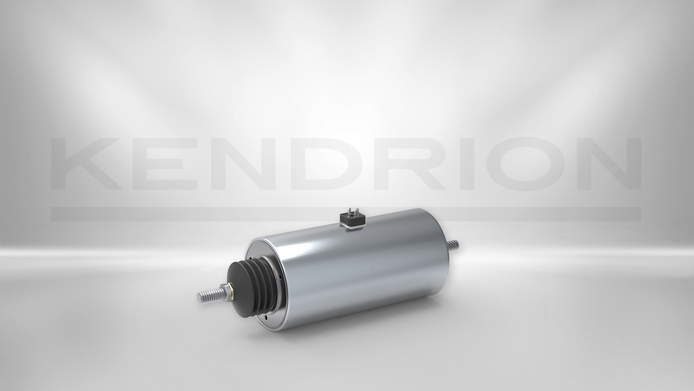

Reversible Linear Solenoid LHR135

LHR1350006

Duty cycle 100 %
Power consumption 81.1 W
Stroke 40 mm
Inital force 170 N
Go to product

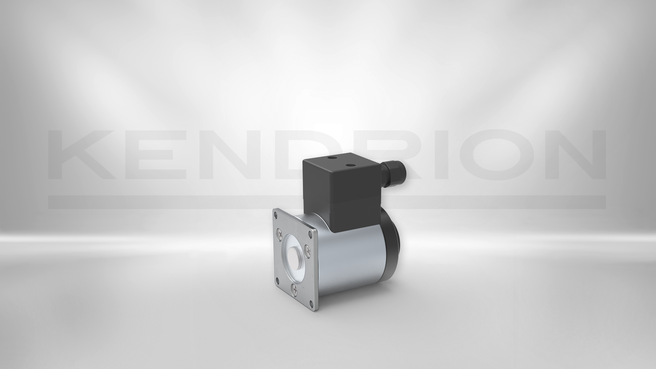

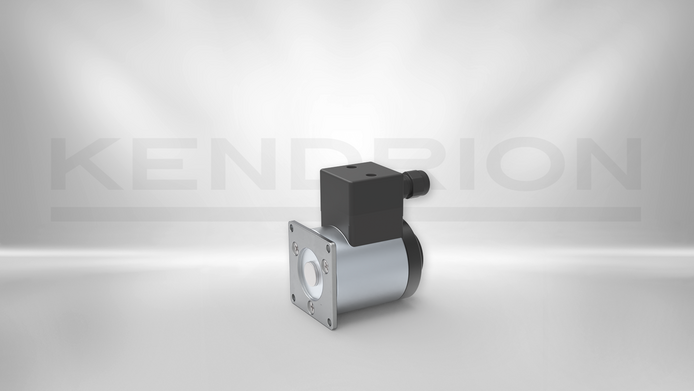

Valve Actuator D50

41050019

Duty cycle 100 %
Power consumption 15 W
Stroke 4 mm
Inital force 40 N
Go to product

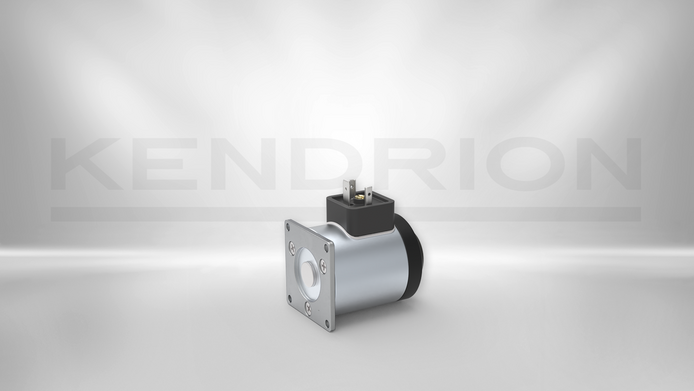

Valve Actuator D51

41050023

Duty cycle 100 %
Power consumption 16 W
Stroke 4 mm
Inital force 40 N
Go to product

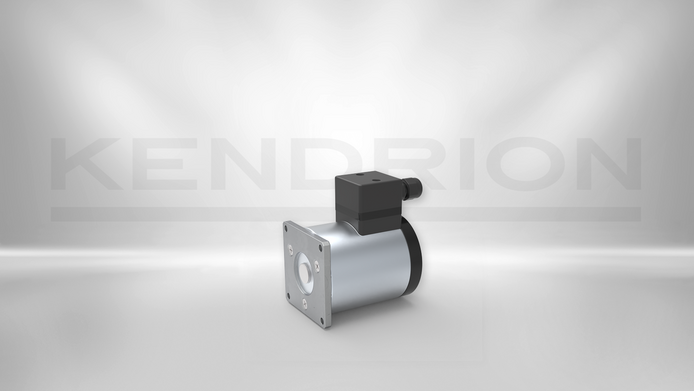

Valve Actuator D62

41060043

Duty cycle 100 %
Power consumption 18.3 W
Stroke 4 mm
Inital force 75 N
Go to product

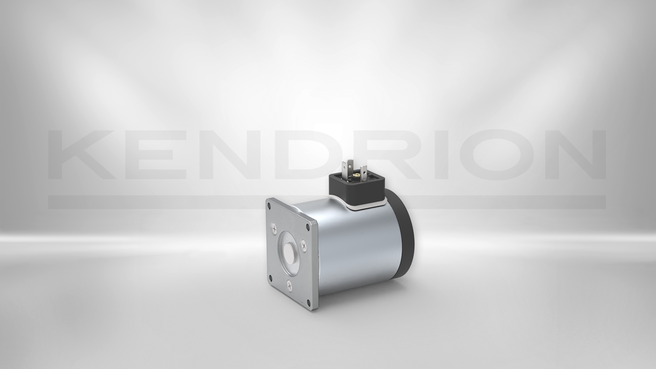

Valve Actuator D63

50013732

Duty cycle 100 %
Power consumption 18.3 W
Stroke 4 mm
Inital force 75 N
Go to product

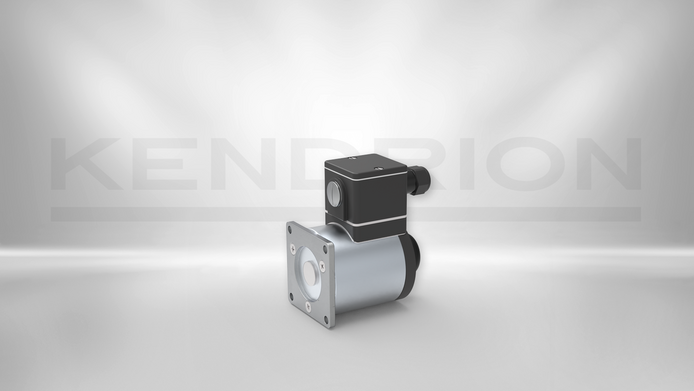

Valve Actuator D72

41070031

Duty cycle 100 %
Power consumption 25 W
Stroke 6 mm
Inital force 86 N
Go to product

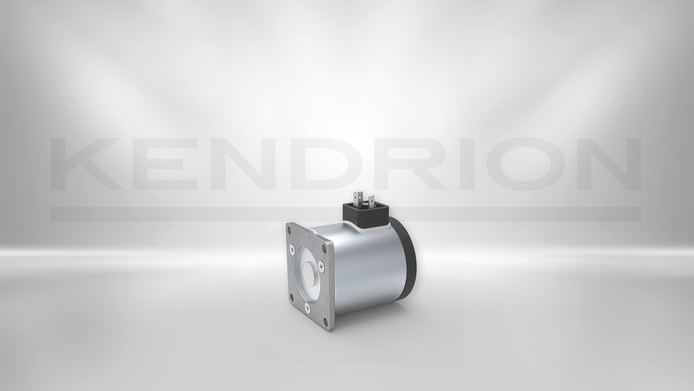

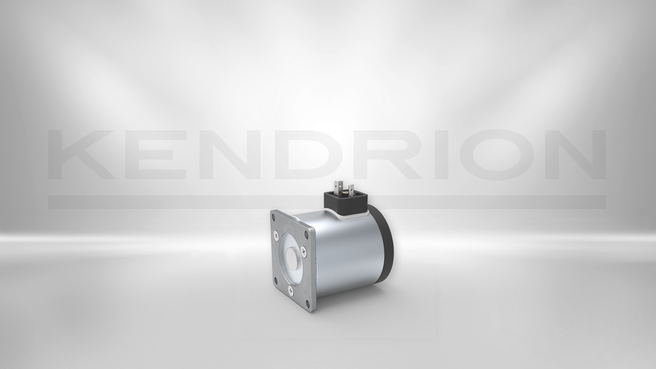

Valve Actuator D73

41070030

Duty cycle 100 %
Power consumption 23.2 W
Stroke 6 mm
Inital force 100 N
Go to product

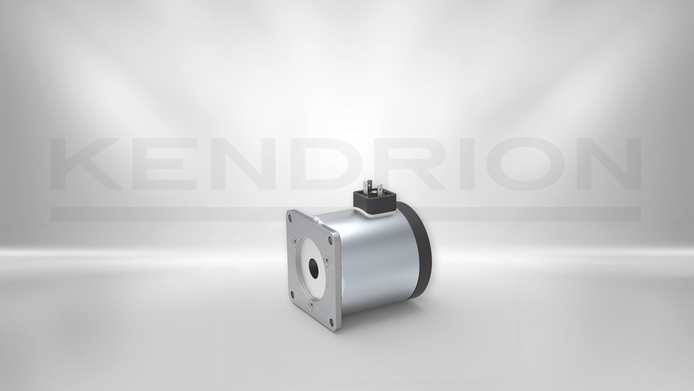

Valve Actuator D89

41090052

Duty cycle 100 %
Power consumption 28.3 W
Stroke 8 mm
Inital force 125 N
Go to product
Title
Type
Duty cycle (%)
Power consumption (W)
Stroke (mm)
Inital force (N)
Nominal voltage (V)
End force (N)
Return spring
Length
Width
Height
Design
Protection class
Thermal class
Connection
Solenoid weight (g)
Armature weight (g)
Special Features
Product Line
Details
High Power Linear Solenoid LHS090 LHS0900009 100 51.9 25 70 24 230 No 111 90 90 No IP 54 F 155 Plug 4600 950 - High Power Linear Solenoids
High Power Linear Solenoid LHS100 LHS1000003 100 58 30 70 24 530 No 130 100 100 No IP 54 F 155 Plug 6600 1200 - High Power Linear Solenoids
High Power Linear Solenoid LHS115 LHS1150010 100 52.6 30 100 24 450 No 118 115 115 No IP 54 F 155 Plug 7000 1100 - High Power Linear Solenoids
High Power Linear Solenoid LHS135 LHS1350010 100 81.1 40 170 24 500 No 184 135 135 No IP 54 F 155 Plug 14000 3000 - High Power Linear Solenoids
High Power Linear Solenoid LHS170 LHS1700005 100 132 50 280 24 1250 No 212 170 170 No IP 54 F 155 Terminal box with/without cable 19000 4300 - High Power Linear Solenoids
Reversible Linear Solenoid LHR035 LHR0350001 100 12 7 6 24 18 No 66 35 35 No IP 54 F 155 Plug 350 100 - Reversible Linear Solenoids
Reversible Linear Solenoid LHR040 1192438 100 19 8 10 24 25 No 94 40 40 No IP 54 F 155 Plug 700 150 - Reversible Linear Solenoids
Reversible Linear Solenoid LHR050 1192541 100 18 10 16 24 75 No 112 50 50 No IP 54 F 155 Plug 1300 250 - Reversible Linear Solenoids
Reversible Linear Solenoid LHR060 1192639 100 28 12 32 24 150 No 132 60 60 No IP 20 F 155 Plug 2600 400 - Reversible Linear Solenoids
Reversible Linear Solenoid LHR070 1192735 100 34 15 37 24 240 No 152 70 70 No IP 54 F 155 Plug 3700 650 - Reversible Linear Solenoids
Reversible Linear Solenoid LHR080 LHR0800003 100 45 20 55 24 310 No 158 80 80 No IP 54 F 155 Plug 5200 900 - Reversible Linear Solenoids
Reversible Linear Solenoid LHR090 LHR0900001 100 52 25 73 24 270 No 320.9 90 90 No IP 54 F 155 Plug 7600 1400 - Reversible Linear Solenoids
Reversible Linear Solenoid LHR115 LHR1150001 100 50 30 100 24 450 No 185.4 115 115 No IP 54 F 155 Plug 12000 1600 - Reversible Linear Solenoids
Reversible Linear Solenoid LHR135 LHR1350006 100 81.1 40 170 24 570 No 291 135 135 No IP 54 F 155 Plug 18500 2500 - Reversible Linear Solenoids
Valve Actuator D50 41050019 100 15 4 40 24 75 No 59 50 50 No IP 40 B 130 Terminal box with/without cable 600 80 Flange on the pressure side Valve Actuator Solenoid
Valve Actuator D51 41050023 100 16 4 40 24 75 No 58 50 50 No IP 65 B 130 Plug 600 80 Flange on the pressure side Valve Actuator Solenoid
Valve Actuator D62 41060043 100 18.3 4 75 24 175 No 78 62 62 No IP 40 B 130 Terminal box with/without cable 1400 100 Flange on the pressure side Valve Actuator Solenoid
Valve Actuator D63 50013732 100 18.3 4 75 24 175 No 78 62 62 No IP 40 B 130 Plug 1400 100 Flange on the pressure side Valve Actuator Solenoid
Valve Actuator D72 41070031 100 25 6 86 24 300 No 80 72 72 No IP 40 B 130 Terminal box with/without cable 1900 200 Flange on the pressure side Valve Actuator Solenoid
Valve Actuator D73 41070030 100 23.2 6 100 24 300 No 80 72 72 No IP 40 B 130 Plug 1900 200 Flange on the pressure side Valve Actuator Solenoid
Valve Actuator D89 41090052 100 28.3 8 125 24 375 No 95 88 88 No IP 40 B 130 Plug 3250 400 Flange on the pressure side Valve Actuator Solenoid
