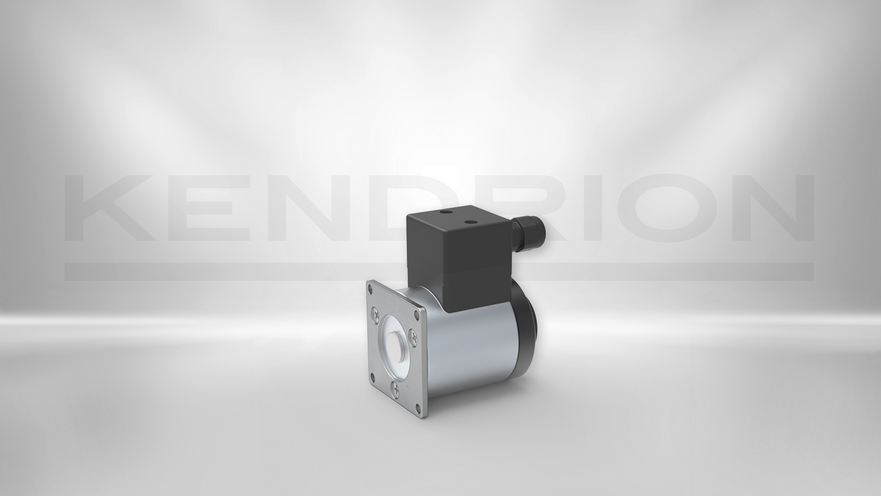

Valve Actuator D50
41050019
Valve Actuators are linear solenoids with short stroke travels and high magnetic forces for precise switching of valves.
The valve actuator is based on the force effect exerted on ferromagnetic bodies in the magnetic field. The electrical energy is converted into mechanical kinetic energy. The armature is reset by spring, weight or magnetic forces.
The valve actuator is available in different versions and tested according to DIN VDE 0580/07.2000.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 15 W |
| Stroke | 4 mm |
| Inital force | 40 N |
| Nominal voltage | 24 V |
| End force | 75 N |
| Return spring | No |
| Dimensions (length, width, height) | 59 x 50 x 50 mm |
| Length | 59 |
| Width | 50 |
| Height | 50 |
| Design | No |
| Protection class | IP 40 |
| Thermal class | B 130 |
| Connection | Terminal box with/without cable |
| Solenoid weight | 600 g |
| Armature weight | 80 g |
| Special Features | Flange on the pressure side |
| Product Line | Valve Actuator Solenoid |
