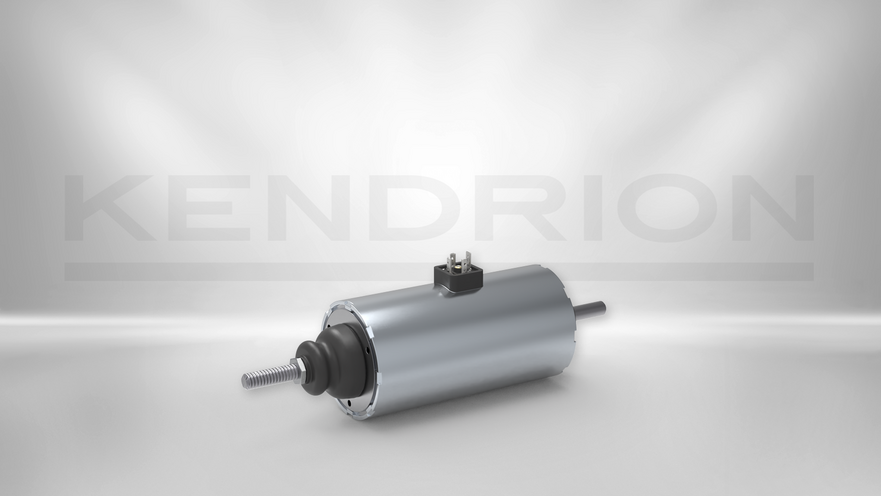

Reversible Linear Solenoid LHR090
LHR0900001
The Reversible Linear Solenoid LHR090 is characterized by high performance. It is delivered with a horizontal characteristic curve. The armature is led on both sides with maintenance-free precision bearings coated with Teflon. This results in a very high resistance to wear, granting consistent solenoid performance throughout a long service life. The reversing solenoid is available in different versions.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 52 W |
| Stroke | 25 mm |
| Inital force | 73 N |
| Nominal voltage | 24 V |
| End force | 270 N |
| Return spring | No |
| Dimensions (length, width, height) | 320 x 90 x 90 mm |
| Length | 320.9 |
| Width | 90 |
| Height | 90 |
| Design | No |
| Protection class | IP 54 |
| Thermal class | F 155 |
| Connection | Plug |
| Solenoid weight | 7600 g |
| Armature weight | 1400 g |
| Product Line | Reversible Linear Solenoids |
