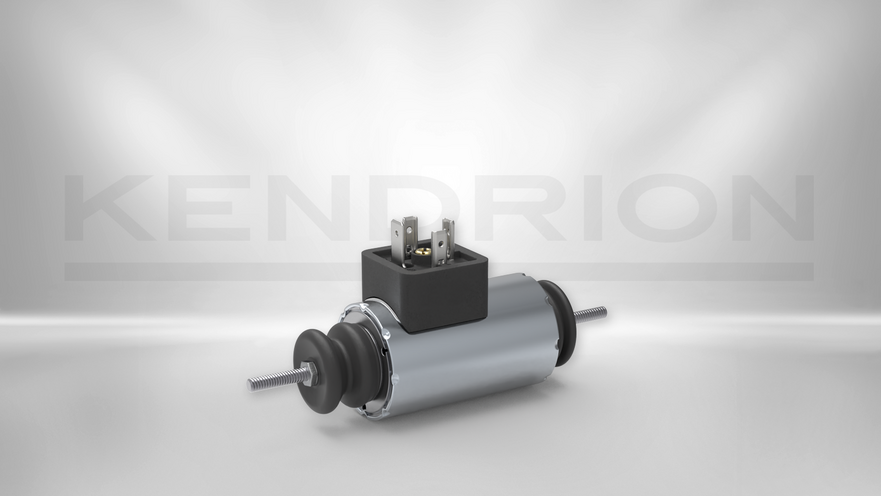

Reversible Linear Solenoid LHR035
LHR0350001
Reversible Linear Solenoids of the LHR series are characterized by high performance. They are delivered with a horizontal characteristic curve. The armature is led on both sides with maintenance-free precision bearings coated with Teflon. This results in a very high resistance to wear, granting consistent solenoid performance throughout a long service life. The reversing solenoids are available in different versions.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 12 W |
| Stroke | 7 mm |
| Inital force | 6 N |
| Nominal voltage | 24 V |
| End force | 18 N |
| Return spring | No |
| Dimensions (length, width, height) | 66 x 35 x 35 mm |
| Length | 66 |
| Width | 35 |
| Height | 35 |
| Design | No |
| Protection class | IP 54 |
| Thermal class | F 155 |
| Connection | Plug |
| Solenoid weight | 350 g |
| Armature weight | 100 g |
| Product Line | Reversible Linear Solenoids |
