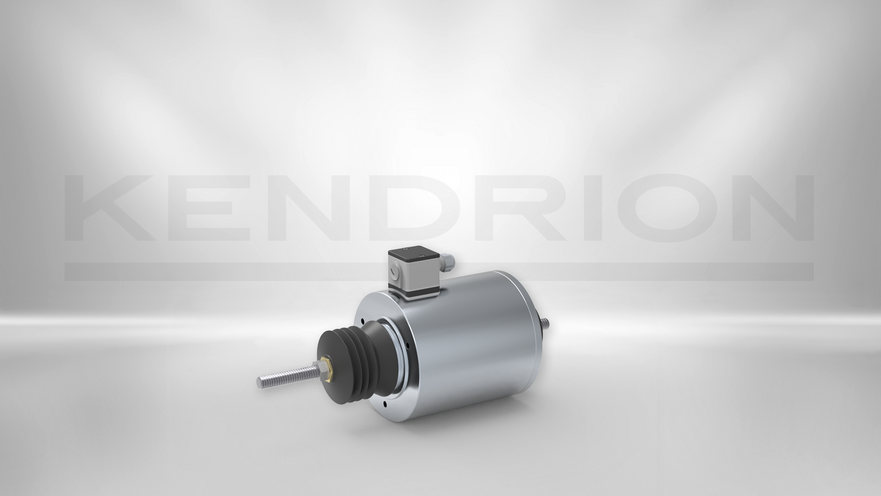

High Power Linear Solenoid LHS170
LHS1700005
High power solenoids of the LHS series are solenoids with strong holding forces. They are delivered with a horizontal characteristic curve. The armature is led on both sides with maintenance-free precision bearings. This results in a very high resistance to wear, granting consistent solenoid performance throughout a long service life. The LHS high performance solenoids are available in different versions.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 132 W |
| Stroke | 50 mm |
| Inital force | 280 N |
| Nominal voltage | 24 V |
| End force | 1250 N |
| Return spring | No |
| Dimensions (length, width, height) | 212 x 170 x 170 mm |
| Length | 212 |
| Width | 170 |
| Height | 170 |
| Design | No |
| Protection class | IP 54 |
| Thermal class | F 155 |
| Connection | Terminal box with/without cable |
| Solenoid weight | 19000 g |
| Armature weight | 4300 g |
| Product Line | High Power Linear Solenoids |
