Linear solenoids

Discover our Standard portfolio Single stroke solenoids, bistable solenoids and heavy duty solenoids from Kendrion of linear solenoids.


Need some help? Try our new Linear Solenoid Product Guide.

Start Product Guide

Products (105)

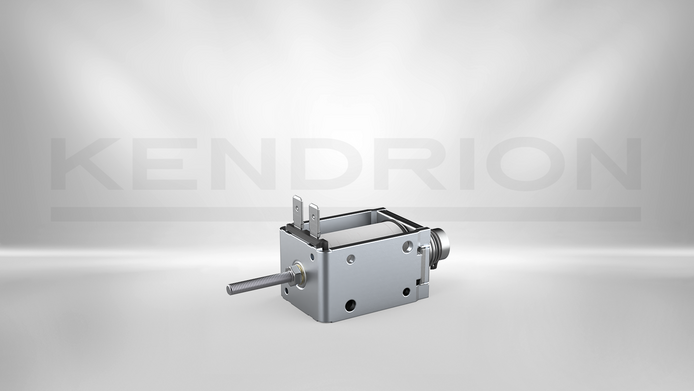

Frame Linear Solenoid LCL 28x33

4000628AE34V02

Duty cycle 100 %
Power consumption 13.4 W
Stroke 10 mm
Inital force 3.5 N
Go to product

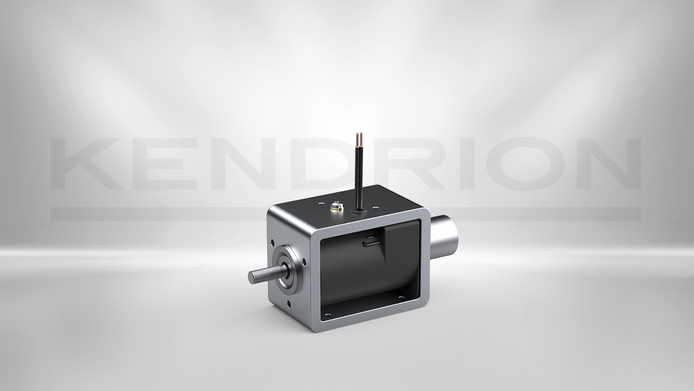

Frame Linear Solenoid LCL 30x35

43030003

Duty cycle 100 %
Power consumption 10.9 W
Stroke 15 mm
Inital force 3 N
Go to product

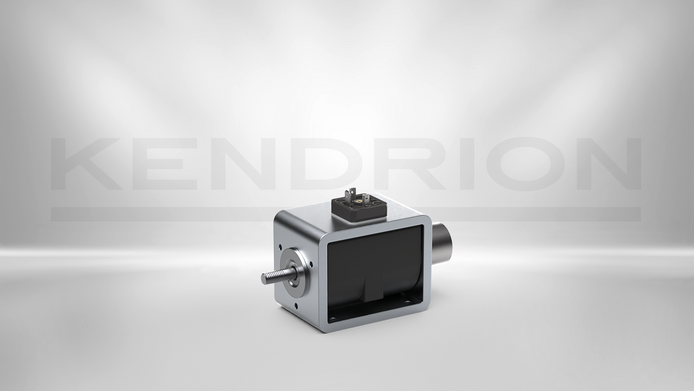

Frame Linear Solenoid LCL 30x35

43030004

Duty cycle 100 %
Power consumption 10.9 W
Stroke 15 mm
Inital force 3 N
Go to product

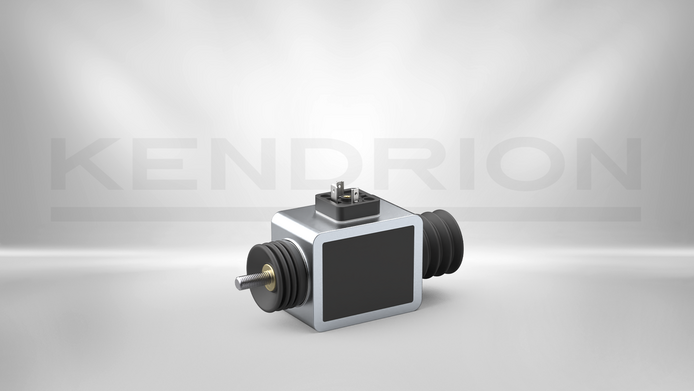

Frame Linear Solenoid LCL 30x35

43030006

Duty cycle 100 %
Power consumption 10.4 W
Stroke 15 mm
Inital force 3 N
Go to product

Frame Linear Solenoid LCL 40x50

43040016

Duty cycle 100 %
Power consumption 15.9 W
Stroke 20 mm
Inital force 9 N
Go to product

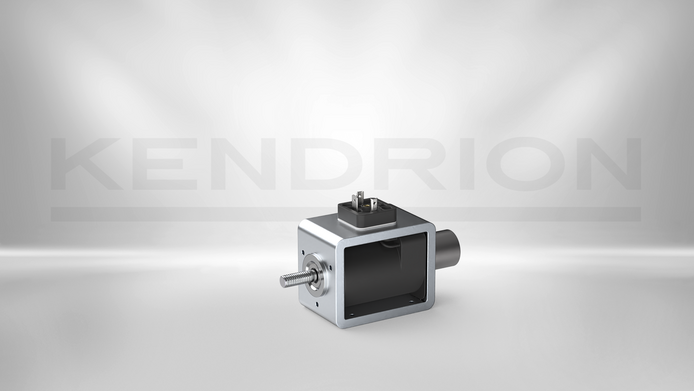

Frame Linear Solenoid LCL 40x50

43040020

Duty cycle 100 %
Power consumption 15.9 W
Stroke 20 mm
Inital force 9 N
Go to product

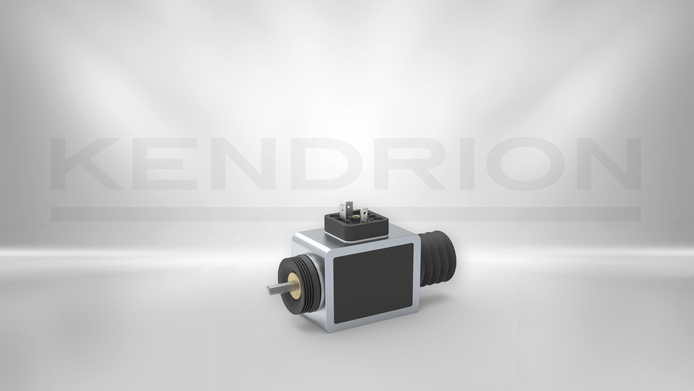

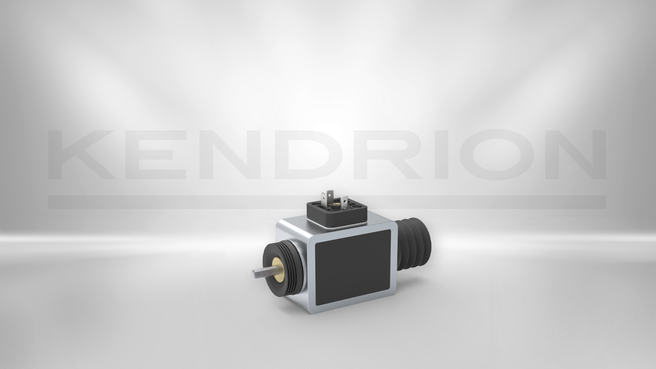

Frame Linear Solenoid LCL 40x50

43040022

Duty cycle 100 %
Power consumption 15.9 W
Stroke 20 mm
Inital force 9 N
Go to product

Frame Linear Solenoid LCL 48x60

43050003

Duty cycle 100 %
Power consumption 20.7 W
Stroke 25 mm
Inital force 13 N
Go to product

Frame Linear Solenoid LCL 48x60

43050004

Duty cycle 100 %
Power consumption 20.7 W
Stroke 25 mm
Inital force 13 N
Go to product

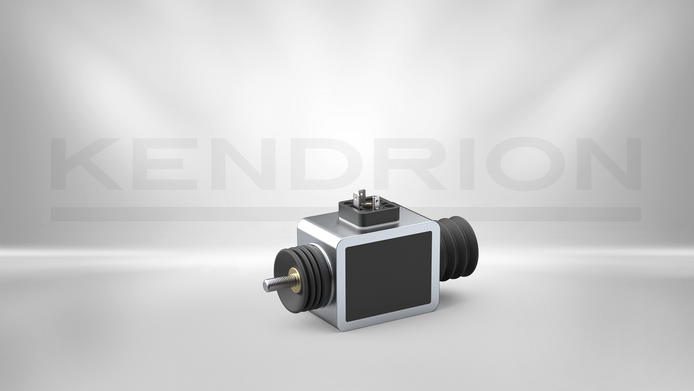

Frame Linear Solenoid LCL 48x60

43050005

Duty cycle 100 %
Power consumption 20.7 W
Stroke 25 mm
Inital force 13 N
Go to product

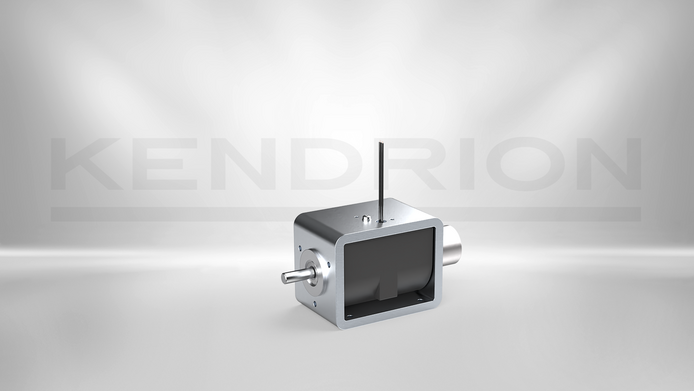

Frame Linear Solenoid LCL 60x70

43060001

Duty cycle 100 %
Power consumption 26.7 W
Stroke 25 mm
Inital force 25 N
Go to product

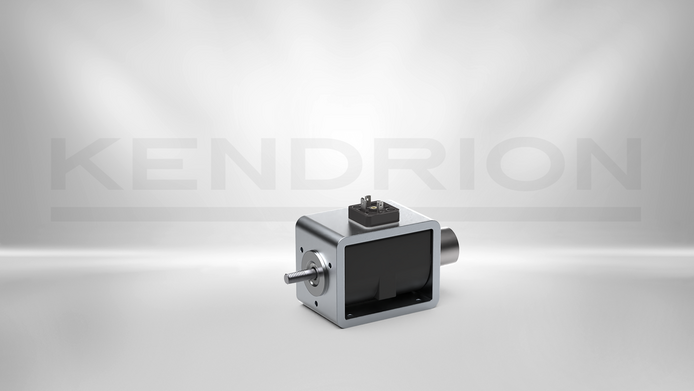

Frame Linear Solenoid LCL 60x70

43060002

Duty cycle 100 %
Power consumption 26.7 W
Stroke 25 mm
Inital force 25 N
Go to product

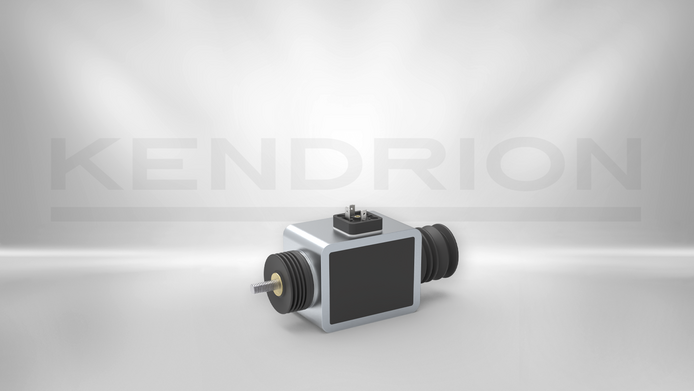

Frame Linear Solenoid LCL 60x70

43060005

Duty cycle 100 %
Power consumption 26.7 W
Stroke 25 mm
Inital force 25 N
Go to product

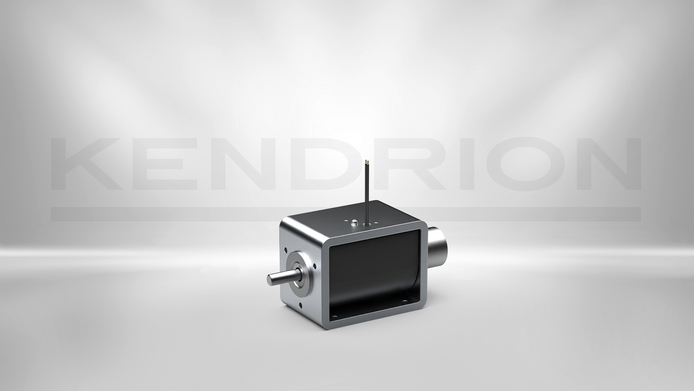

Frame Linear Solenoid LCL 70x80

43070001

Duty cycle 100 %
Power consumption 37.4 W
Stroke 30 mm
Inital force 40 N
Go to product

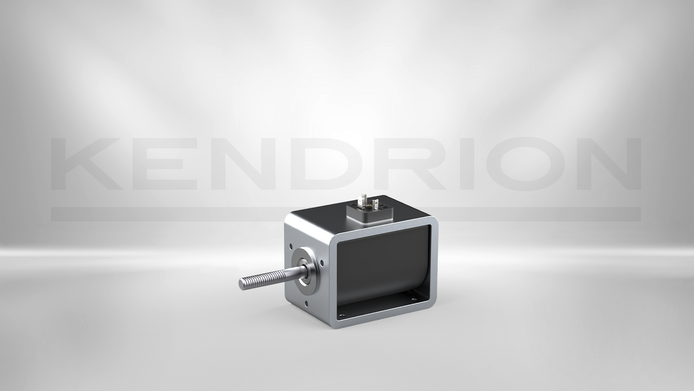

Frame Linear Solenoid LCL 70x80

43070002

Duty cycle 100 %
Power consumption 37.4 W
Stroke 30 mm
Inital force 40 N
Go to product

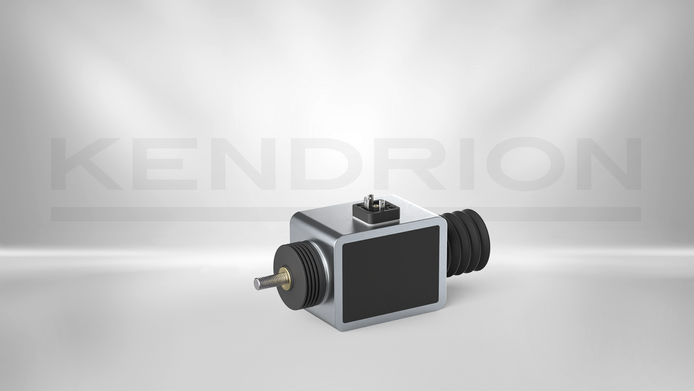

Frame Linear Solenoid LCL 70x80

43070003

Duty cycle 100 %
Power consumption 37.4 W
Stroke 30 mm
Inital force 40 N
Go to product

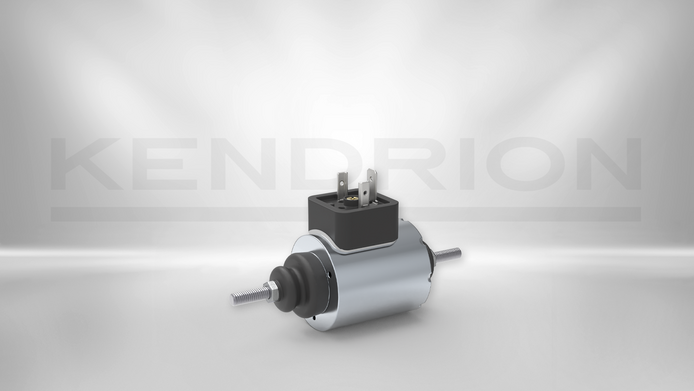

High Power Linear Solenoid LHS040

LHS0400004

Duty cycle 100 %
Power consumption 12.3 W
Stroke 8 mm
Inital force 8 N
Go to product

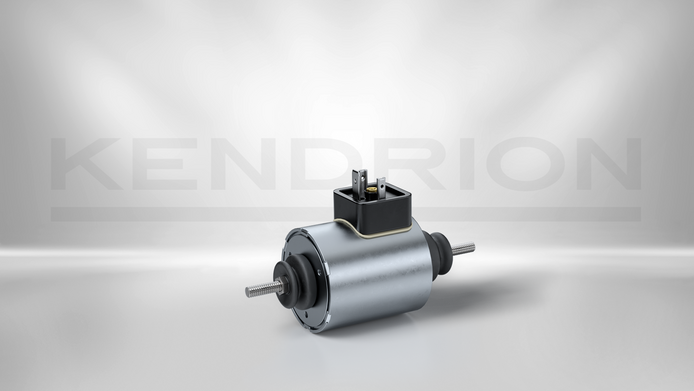

High Power Linear Solenoid LHS050

LHS0500014

Duty cycle 100 %
Power consumption 16.5 W
Stroke 10 mm
Inital force 17.5 N
Go to product

High Power Linear Solenoid LHS060

LHS0600008

Duty cycle 100 %
Power consumption 26 W
Stroke 12 mm
Inital force 35 N
Go to product

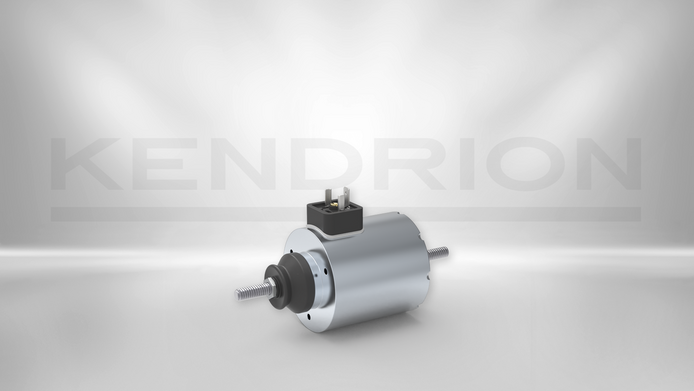

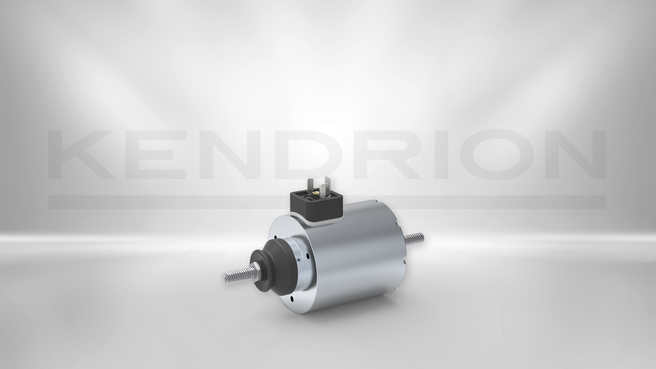

High Power Linear Solenoid LHS070

LHS0700011

Duty cycle 100 %
Power consumption 32.9 W
Stroke 15 mm
Inital force 45 N
Go to product

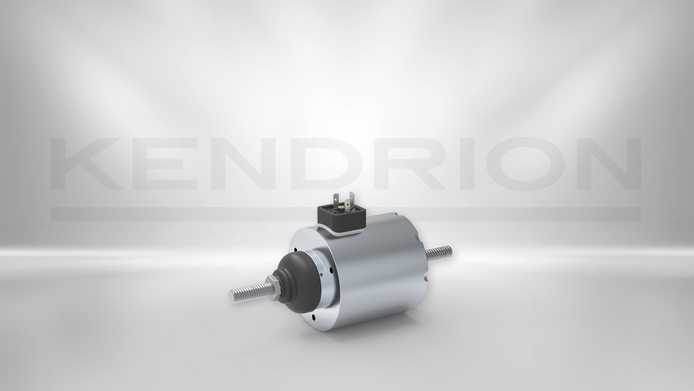

High Power Linear Solenoid LHS080

LHS0800001

Duty cycle 100 %
Power consumption 35 W
Stroke 20 mm
Inital force 44 N
Go to product
Title
Type
Duty cycle (%)
Power consumption (W)
Stroke (mm)
Inital force (N)
Nominal voltage (V)
End force (N)
Return spring
Length
Width
Height
Design
Protection class
Thermal class
Connection
Solenoid weight (g)
Armature weight (g)
Special Features
Product Line
Details
Frame Linear Solenoid LCL 28x33 4000628AE34V02 100 13.4 10 3.5 24 10 Optional via spring kit 48.3 34 28 No IP 00 F 155 Plug - - - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 30x35 43030003 100 10.9 15 3 24 8.5 Optional via spring kit 50 30 35 No IP 40 B 130 Leads / cable 250 55 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 30x35 43030004 100 10.9 15 3 24 8.5 Optional via spring kit 50 30 35 No IP 40 B 130 Plug 250 55 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 30x35 43030006 100 10.4 15 3 24 8.5 Optional via spring kit 56 30 35 No IP 54/65 B 130 Plug 250 55 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 40x50 43040016 100 15.9 20 9 24 20 Optional via spring kit 70 40 50 No IP 40 B 130 Leads / cable 660 125 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 40x50 43040020 100 15.9 20 9 24 20 Optional via spring kit 70 40 50 No IP 40 B 130 Plug 660 125 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 40x50 43040022 100 15.9 20 9 24 20 Optional via spring kit 76 40 50 No IP 54/65 B 130 Plug 660 125 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 48x60 43050003 100 20.7 25 13 24 37 Optional via spring kit 75 48 60 No IP 40 B 130 Leads / cable 1160 230 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 48x60 43050004 100 20.7 25 13 24 37 Optional via spring kit 75 48 60 No IP 40 B 130 Plug 1160 230 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 48x60 43050005 100 20.7 25 13 24 37 Optional via spring kit 75 48 60 No IP 54/65 B 130 Plug 1160 230 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 60x70 43060001 100 26.7 25 25 24 90 Optional via spring kit 90 60 70 No IP 40 B 130 Leads / cable 2040 410 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 60x70 43060002 100 26.7 25 25 24 90 Optional via spring kit 90 60 70 No IP 40 B 130 Plug 2040 410 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 60x70 43060005 100 26.7 25 25 24 90 Optional via spring kit 103 60 70 No IP 54/65 B 130 Plug 2040 410 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 70x80 43070001 100 37.4 30 40 24 125 Optional via spring kit 105 70 80 No IP 40 B 130 Leads / cable 3250 630 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 70x80 43070002 100 37.4 30 40 24 125 Optional via spring kit 105 70 80 No IP 40 B 130 Plug 3250 630 - Single Stroke Linear Solenoids
Frame Linear Solenoid LCL 70x80 43070003 100 37.4 30 40 24 125 Optional via spring kit 119 70 80 No IP 54/65 B 130 Plug 3250 630 - Single Stroke Linear Solenoids
High Power Linear Solenoid LHS040 LHS0400004 100 12.3 8 8 24 25 No 56 40 40 No IP 54 B 130 Plug 420 100 - High Power Linear Solenoids
High Power Linear Solenoid LHS050 LHS0500014 100 16.5 10 17.5 24 90 No 67 50 50 No IP 54 F 155 Plug 750 120 - High Power Linear Solenoids
High Power Linear Solenoid LHS060 LHS0600008 100 26 12 35 24 120 No 78 60 60 No IP 54 F 155 Plug 1300 250 - High Power Linear Solenoids
High Power Linear Solenoid LHS070 LHS0700011 100 32.9 15 45 24 170 No 89 70 70 No IP 54 F 155 Plug 2000 400 - High Power Linear Solenoids
High Power Linear Solenoid LHS080 LHS0800001 100 35 20 44 24 150 No 95 80 80 No IP 54 F 155 Plug 3200 530 - High Power Linear Solenoids
