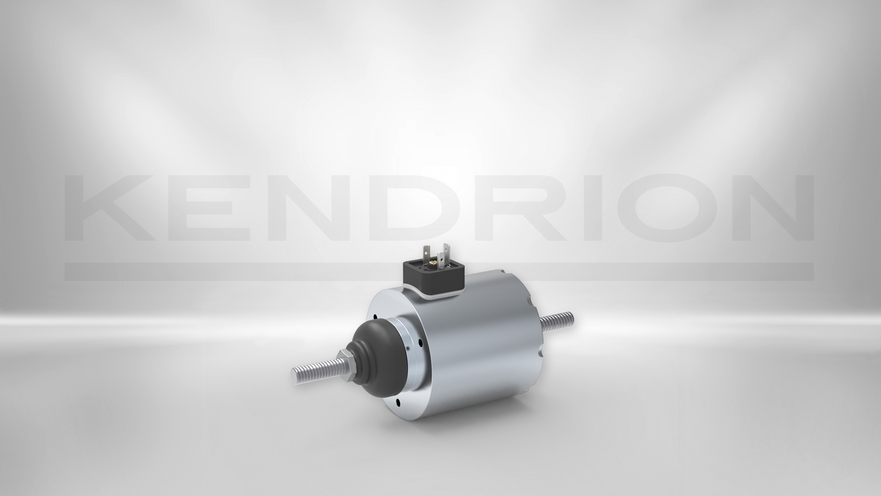

High Power Linear Solenoid LHS080
LHS0800001
High power solenoids of the LHS series are solenoids with strong holding forces. They are delivered with a horizontal characteristic curve. The armature is led on both sides with maintenance-free precision bearings. This results in a very high resistance to wear, granting consistent solenoid performance throughout a long service life. The LHS high performance solenoids are available in different versions.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 35 W |
| Stroke | 20 mm |
| Inital force | 44 N |
| Nominal voltage | 24 V |
| End force | 150 N |
| Return spring | No |
| Dimensions (length, width, height) | 95 x 80 x 80 mm |
| Length | 95 |
| Width | 80 |
| Height | 80 |
| Design | No |
| Protection class | IP 54 |
| Thermal class | F 155 |
| Connection | Plug |
| Solenoid weight | 3200 g |
| Armature weight | 530 g |
| Product Line | High Power Linear Solenoids |
