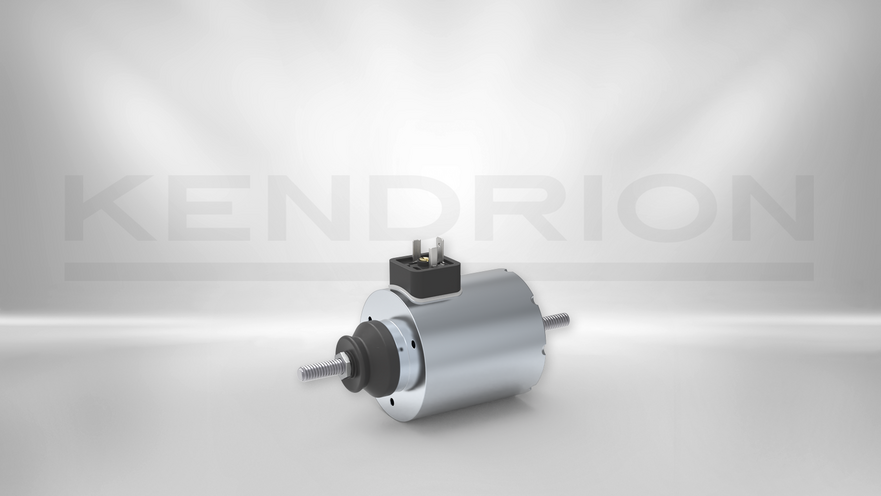

High Power Linear Solenoid LHS070
LHS0700011
High power solenoids of the LHS series are solenoids with strong holding forces. They are delivered with a horizontal characteristic curve. The armature is led on both sides with maintenance-free precision bearings. This results in a very high resistance to wear, granting consistent solenoid performance throughout a long service life. The LHS high performance solenoids are available in different versions.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 32.9 W |
| Stroke | 15 mm |
| Inital force | 45 N |
| Nominal voltage | 24 V |
| End force | 170 N |
| Return spring | No |
| Dimensions (length, width, height) | 89 x 70 x 70 mm |
| Length | 89 |
| Width | 70 |
| Height | 70 |
| Design | No |
| Protection class | IP 54 |
| Thermal class | F 155 |
| Connection | Plug |
| Solenoid weight | 2000 g |
| Armature weight | 400 g |
| Product Line | High Power Linear Solenoids |
