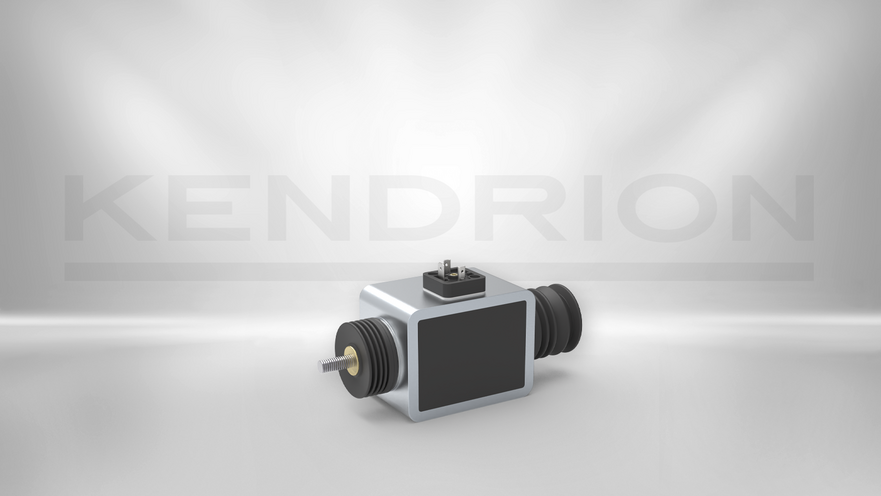

Frame Linear Solenoid LCL 60x70
43060005
The D-frame solenoid LCL is characterized by a compact design, low power consumption and short switching times. A long service life is promoted by the precision steel tube housing and maintenance-free armature bearings. The frame solenoid can be installed in any position, with the force preferably being applied in the axial direction only. It is fastened via threaded holes on the side or on the face.
As standard, the frame linear solenoid has a chemically nickel-plated armature and a plastic-molded solenoid coil and has protection class IP 40. Versions with bellows achieve protection class IP54.
Other voltages are possible on request.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 26.7 W |
| Stroke | 25 mm |
| Inital force | 25 N |
| Nominal voltage | 24 V |
| End force | 90 N |
| Return spring | Optional via spring kit |
| Dimensions (length, width, height) | 103 x 60 x 70 mm |
| Length | 103 |
| Width | 60 |
| Height | 70 |
| Design | No |
| Protection class | IP 54/65 |
| Thermal class | B 130 |
| Connection | Plug |
| Solenoid weight | 2040 g |
| Armature weight | 410 g |
| Product Line | Single Stroke Linear Solenoids |
