Direct-operated solenoid valves

Welcome to the KENDRION ProductFinder for direct-operated solenoid valves!

Here you can quickly and easily find what you are looking for. Choose from our wide portfolio of direct-operated solenoid valves. Direct operated solenoid valves from Kendrion achieve high flow rates of liquids and gases with low power consumption and compact design. The solenoid valves are used, among other, in respiratory and anesthesia devices to control oxygen or in dental technology to control air, vacuum and water.

Standard Kendrion solenoid valves consist of several models with different sizes. On request, the standard solenoid valves can be customized.

  • 10mm: 63.0 (bistable valves) and 63.1 series
  • 15mm: 68 series
  • 16mm: 64 series
  • 20mm: 65 series


Want to learn more about how Kendrion direct-operated solenoid valves work and their applications?

visit our product page

Products (146)

Solenoid Valve Type 65

65.171

Function 3/2-way NC
Pressure range 0 - 5 bar
Nominal orifice 1.6 mm
Type of pneumatic connection M5
Go to product

Solenoid Valve Type 65

65.172

Function 3/2-way NC
Pressure range 0 - 5 bar
Nominal orifice 1.6 mm
Type of pneumatic connection M5
Go to product

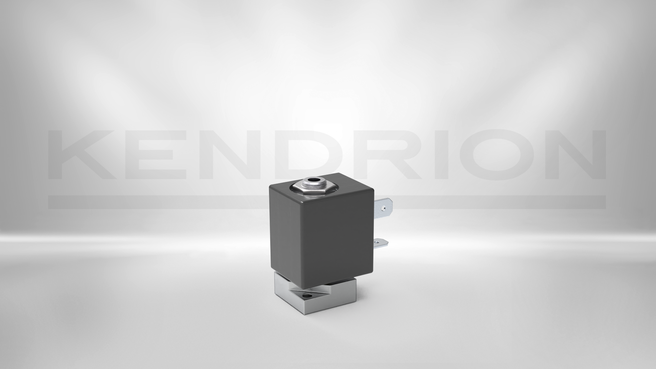

Solenoid Valve Type 65

65.173

Function 3/2-way NC
Pressure range 0 - 5 bar
Nominal orifice 1.6 mm
Type of pneumatic connection Flange
Go to product

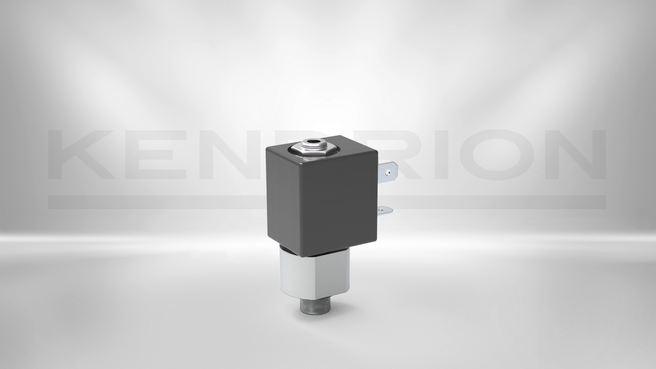

Solenoid Valve Type 65

65.175

Function 3/2-way NC
Pressure range 0 - 5 bar
Nominal orifice 1.6 mm
Type of pneumatic connection G1/8
Go to product

Solenoid Valve Type 65

65.176

Function 3/2-way NC
Pressure range 0 - 5 bar
Nominal orifice 1.6 mm
Type of pneumatic connection G1/8
Go to product

Solenoid Valve Type 65

65.231

Function 3/2-way NC
Pressure range 0 - 3 bar
Nominal orifice 2.0 mm
Type of pneumatic connection M5
Go to product

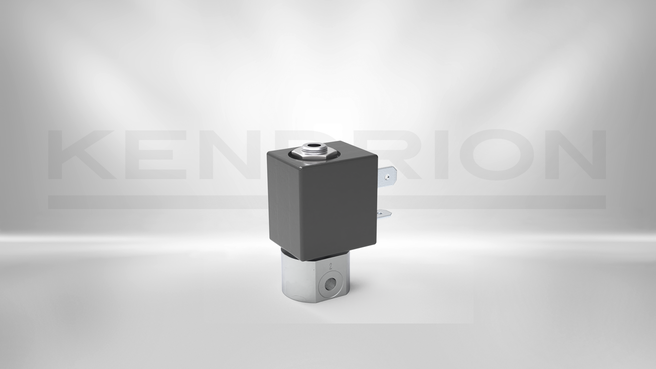

Solenoid Valve Type 65

65.232

Function 3/2-way NC
Pressure range 0 - 3 bar
Nominal orifice 2.0 mm
Type of pneumatic connection M5
Go to product

Solenoid Valve Type 65

65.233

Function 3/2-way NO
Pressure range 0 - 4 bar
Nominal orifice 2.0 mm
Type of pneumatic connection M5
Go to product

Solenoid Valve Type 65

65.234

Function 3/2-way NO
Pressure range 0 - 4 bar
Nominal orifice 2.0 mm
Type of pneumatic connection M5
Go to product

Solenoid Valve Type 65

65.235

Function 3/2-way NC
Pressure range 0 - 3 bar
Nominal orifice 2.0 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 65

65.236

Function 3/2-way NC
Pressure range 0 - 3 bar
Nominal orifice 2.0 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 65

65.237

Function 3/2-way NO
Pressure range 0 - 4 bar
Nominal orifice 2.0 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 65

65.238

Function 3/2-way NO
Pressure range 0 - 4 bar
Nominal orifice 2.0 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 65

65.261

Function 3/2-way NC
Pressure range 0 - 8 bar
Nominal orifice 0.5 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 65

65.271

Function 3/2-way NC
Pressure range 0 - 8 bar
Nominal orifice 0.5 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 68

68.030.01

Function 3/2-way NC
Pressure range 0 - 7 bar
Nominal orifice 1.6 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 68

68.030.41

Function 3/2-way NC
Pressure range 0 - 10 bar
Nominal orifice 1.3 mm
Type of pneumatic connection Flange
Go to product

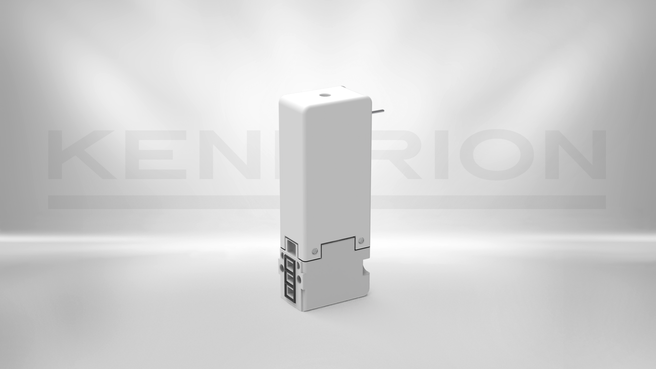

Solenoid Valve Type 68

68.030.51

Function 3/2-way NC
Pressure range 0 - 5 bar
Nominal orifice 1.9 mm
Type of pneumatic connection Flange
Go to product

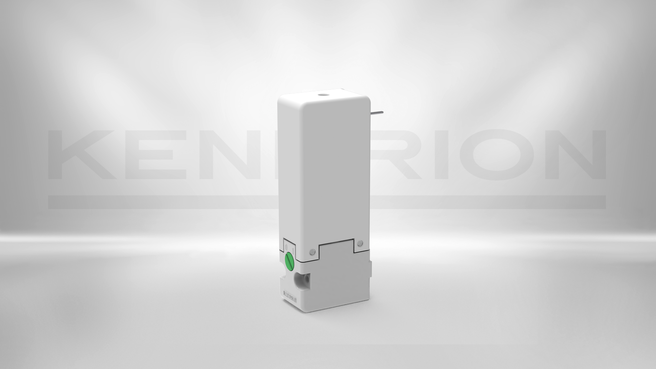

Solenoid Valve Type 68

68.040.01

Function 3/2-way NC
Pressure range 0 - 7 bar
Nominal orifice 1.6 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 68

68.041.41

Function 3/2-way NO
Pressure range 0 - 5 bar
Nominal orifice 1.3 mm
Type of pneumatic connection Flange
Go to product

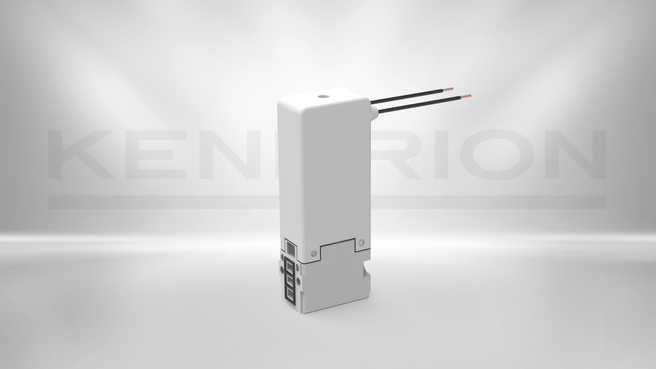

Solenoid Valve Type 68

68.050.01

Function 3/2-way NC
Pressure range 0 - 7 bar
Nominal orifice 1.6 mm
Type of pneumatic connection Flange
Go to product
Title
Type
Function
Pressure range (bar)
Nominal orifice (mm)
Type of pneumatic connection
Kv-value (l/min)
Size (mm)
Actuation type
Duty cycle (% ED)
Type of electric connection
Medium
Nominal power (W)
Nominal voltage (V DC)
Nominal current (mA)
Returning mechanism
Protection class
Ambient temperature (°C)
Valve type
Materials
Actuation
Identification number
Details
Solenoid Valve Type 65 65.171 3/2-way NC 0 - 5 1.6 M5 0.9 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 4.5 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 12163
Solenoid Valve Type 65 65.172 3/2-way NC 0 - 5 1.6 M5 0.9 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 5.0 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 12164
Solenoid Valve Type 65 65.173 3/2-way NC 0 - 5 1.6 Flange 0.9 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 4.5 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 59215
Solenoid Valve Type 65 65.175 3/2-way NC 0 - 5 1.6 G1/8 0.9 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 4.5 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 12171
Solenoid Valve Type 65 65.176 3/2-way NC 0 - 5 1.6 G1/8 0.9 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 5.0 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 71292
Solenoid Valve Type 65 65.231 3/2-way NC 0 - 3 2.0 M5 1.15 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 4.5 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 12165
Solenoid Valve Type 65 65.232 3/2-way NC 0 - 3 2.0 M5 1.15 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 5.0 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 12166
Solenoid Valve Type 65 65.233 3/2-way NO 0 - 4 2.0 M5 1.15 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 4.5 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 12167
Solenoid Valve Type 65 65.234 3/2-way NO 0 - 4 2.0 M5 1.15 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 5.0 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 12168
Solenoid Valve Type 65 65.235 3/2-way NC 0 - 3 2.0 Flange 1.15 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 4.5 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 59819
Solenoid Valve Type 65 65.236 3/2-way NC 0 - 3 2.0 Flange 1.15 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 5.0 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 46989
Solenoid Valve Type 65 65.237 3/2-way NO 0 - 4 2.0 Flange 1.15 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 4.5 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 84886
Solenoid Valve Type 65 65.238 3/2-way NO 0 - 4 2.0 Flange 1.15 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 5.0 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 76396
Solenoid Valve Type 65 65.261 3/2-way NC 0 - 8 0.5 Flange 0.14 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 1.5 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 55910
Solenoid Valve Type 65 65.271 3/2-way NC 0 - 8 0.5 Flange 0.16 20 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 1.5 24 - Spring IP65 -10 ... +60 Poppet valve Base: Brass, seal: NBR directly controlled 56013
Solenoid Valve Type 68 68.030.01 3/2-way NC 0 - 7 1.6 Flange 1 15 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 3 24 - Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: FKM directly controlled 72359
Solenoid Valve Type 68 68.030.41 3/2-way NC 0 - 10 1.3 Flange 0.65 15 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 3 24 - Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: FKM directly controlled 73789
Solenoid Valve Type 68 68.030.51 3/2-way NC 0 - 5 1.9 Flange 1.2 15 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 3 24 - Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: FKM directly controlled 73790
Solenoid Valve Type 68 68.040.01 3/2-way NC 0 - 7 1.6 Flange 1 15 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 3 24 - Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: FKM directly controlled 77822
Solenoid Valve Type 68 68.041.41 3/2-way NO 0 - 5 1.3 Flange 0.65 15 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 3 24 - Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: FKM directly controlled 164740
Solenoid Valve Type 68 68.050.01 3/2-way NC 0 - 7 1.6 Flange 1 15 electrically actuated 100 Wire Filtered (5 µm), lubricated and non lubricated air 3 24 - Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: FKM directly controlled 72497
