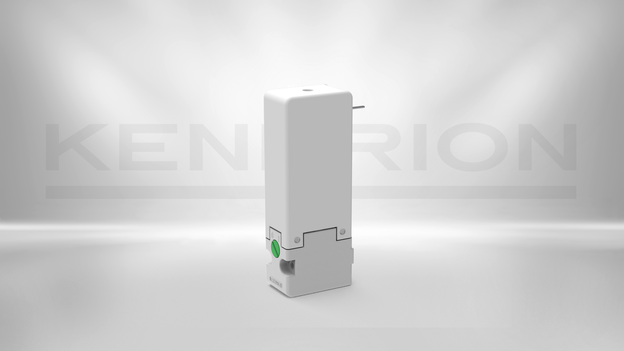

Solenoid Valve Type 68
68.041.41
Direct acting valve, 15 mm width, two individual electrical connection possibilities.
Technical details
| Description | Value |
|---|---|
| Function | 3/2-way NO |
| Pressure range | 0 - 5 bar |
| Nominal orifice | 1.3 mm |
| Type of pneumatic connection | Flange |
| Kv-value | 0.65 l/min |
| Size | 15 mm |
| Actuation type | electrically actuated |
| Duty cycle | 100 % ED |
| Type of electric connection | Plug pins / pins |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Nominal power | 3 W |
| Nominal voltage | 24 V DC |
| Returning mechanism | Spring |
| Protection class | IP65 |
| Ambient temperature | -10 ... +50 °C |
| Valve type | Poppet valve |
| Materials | Base: PBT, seal: FKM |
| Actuation | directly controlled |
| Identification number | 164740 |
