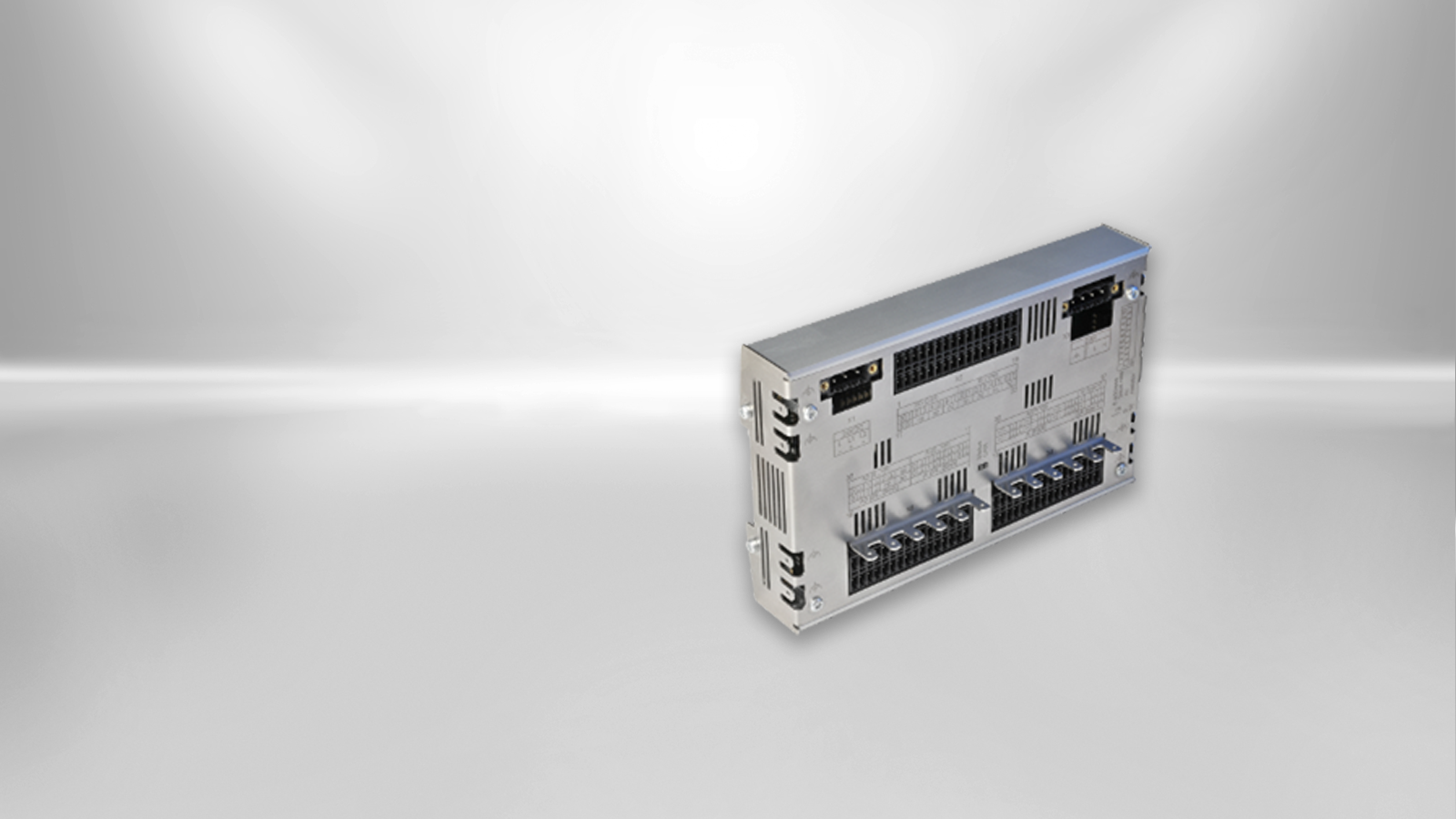

Compact I/O
Individual customer-specific I/O modules
Compact, decentralised I/O modules and intelligent function modules are customised by Kendrion to meet the needs of your application.
An individually, fixed-configured number of digital I/O points, counters and analogue value sockets in a space-saving housing. These compact functional units combine all desired functions in one device. Optionally, in addition to programmability, other special functions such as monitoring of voltage levels, detection of line breaks, switching functions and speed controls, rotating field detection and much more can be integrated. Operating hours counters support preventive maintenance measures and lead to minimisation of cost-intensive downtimes.
These modules for EtherCAT, CANopen and Profinet networks save configuration effort, enable simple wiring and are thus a cost-effective "plug & play" solution for series applications. The intelligent compact controller is used to control complete automatic machines or small machines, as it is also possible to connect an operating terminal here.
- Design, development, approvals and production according to customer specifications by Kendrion
- Individually adapted functional units
Products
(10)
show results as grid
show results as list
|
Title
|
Type
ascending
descending
|
Configuration
ascending
descending
|
Function
ascending
descending
|
Model
ascending
descending
|
Product status
ascending
descending
|
Field bus interfaces
ascending
descending
|
Interfaces
ascending
descending
|
Digital I/Os (integrated)
ascending
descending
|
Analogue I/Os (integrated)
ascending
descending
|
Status indication
ascending
descending
|
Housing material
ascending
descending
|
Dimensions (W x H x D)
ascending
descending
|
IP-Protection Class
ascending
descending
|
Supply voltage
ascending
descending
|
Operating temperature
ascending
descending
|
Processor
ascending
descending
|
Operating system
ascending
descending
|
Software
ascending
descending
|
Main memory
ascending
descending
|
Non-volatile memory
ascending
descending
|
Data memory
ascending
descending
|
Drive
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CIO Controller + HMI
|
611 280 01 | Embedded compact controller | Compact PLC, 8DI, 8DO, 4AI-U, 4AI-I, 1AO-U, 1AO-I, 2Pt | Compact PLC | Special edition | CAN | LAN, CAN, RS-232, RS-485 | 8DI, 8DO, 4AI-U, 4AI-I, 1AO-U, 1AO-I, 2Pt | - | - | aluminium tray with stainless steel cover | 206 mm x 105 mm x 57 mm | IP 20 | - | - | STM32F7 (ARM® Cortex®-M7 core); 216MHz | RTOS | C/C++ programmable | 32 MB | Yes | µSD card | Flash disk 64 MB | to the product |
|
|
CIO Controller
|
611 280 02 | Embedded compact controller | Compact PLC with HMI, 8DI, 8DO, 4AI-U, 4AI-I, 1AO-U, 1AO-I, 2Pt | Compact PLC with Touch Panel | Special edition | CAN | LAN, CAN, RS-232, RS-485 | 8DI, 8DO, 4AI-U, 4AI-I, 1AO-U, 1AO-I, 2Pt | - | - | Aluminium tray with stainless steel cover | 206 mm x 105 mm x 57 mm | IP 20 | - | - | STM32F7 (ARM® Cortex®-M7 core); 216MHz | RTOS | C/C++ programmable, embedded wizard | 32 MB | Yes | µSD card | Flash disk 64 MB | to the product |
|

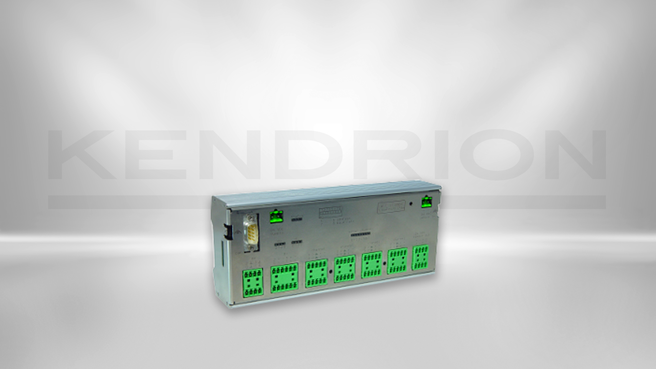

CIO CANopen
48DI/24DO/2AI-U/2AO-U/8Pt100/1Thermo |
611 210 00 | 48DI/24DO/2AI-U/2AO-U/8Pt100/1Thermo | I/O system with CANopen field bus | open circuit board for the control cabinet | Standard product | CANopen | CANopen | 48 DI 5 ms, 24 DO 0, 5A | 2AI-U, 2AO-U, 8Pt, 1Thermo | system messages | plastic tray with stainless steel cover | 212 mm x 104 mm x 40 mm | IP 20 | 24 V (-20% / +25%) | 0 ... +55 °C | - | - | - | - | - | - | - | to the product |
|

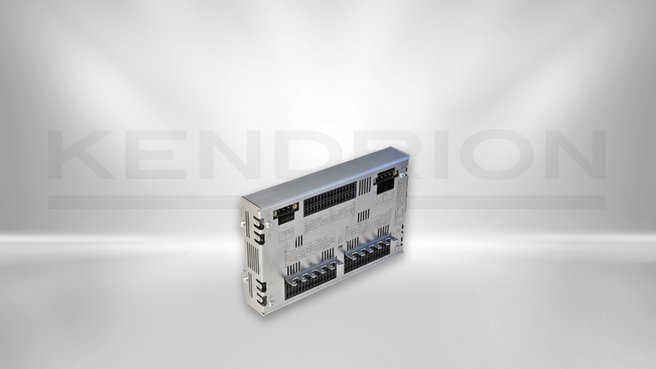

CIO CANopen
16DI/16DO/4AI-I/4AI-U/4AO-I/4AO-U/6Pt100/2Thermo |
611 220 88 | 16DI/16DO/4AI-I/4AI-U/4AO-I/4AO-U/6Pt100/2Thermo | I/O system with CANopen field bus | Control cabinet modul | Standard product | CANopen | CANopen | 16 DI 5 ms, 16 DO 0, 5A | 4AI-I, 4AI-U, 4AO-I, 4AO-U, 6Pt100, 2Thermo | system messages | aluminium tray with stainless steel cover | 170 mm x 115 mm x 48 mm | IP 20 | 24 V (-20% / +25%) | 0 ... +55 °C | - | - | - | - | - | - | - | to the product |
|

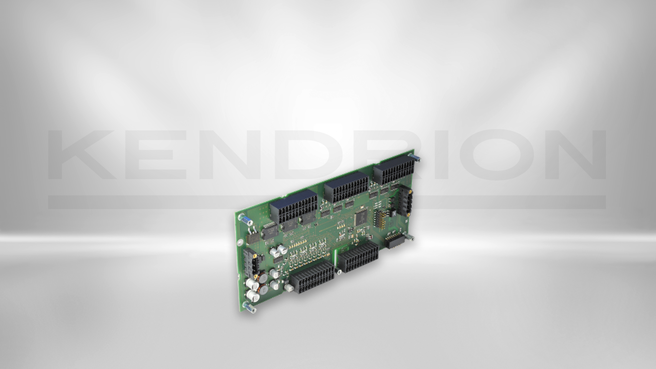

CIO CANopen
16DI/16DO/2AD/2DA/Pt100 |
611 200 00 | 16DI/16DO/2AD/2DA/Pt100 | I/O system with CANopen field bus | open circuit board for the control cabinet | Standard product | CANopen | CANopen | 16 DI 5ms sourcing input / 16 DO 0, 5A sinking output | 2AI, 2AO, 1Pt100 | system messages | plastic tray optional | 160 mm x 100 mm x 25 mm | IP 00 | 24 V (-20% / +25%) | 0 ... +55 °C | - | - | - | - | - | - | - | to the product |
|

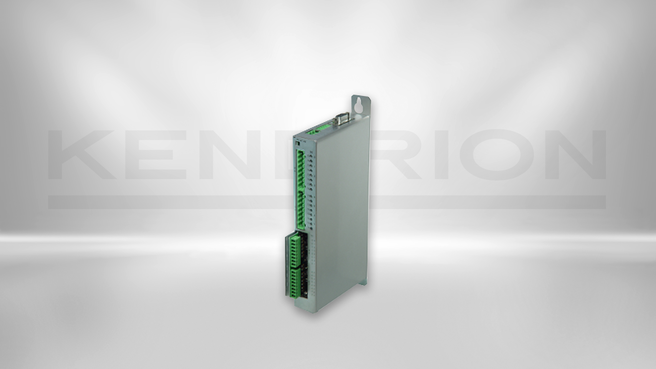

CIO CANopen book size
16DI/16DO |
611 300 00 | 16DI/16DO | I/O system with CANopen field bus | Control cabinet modul | Special edition | CANopen | CANopen | 16 DI 5ms / 16 DO 0, 5A | - | system messages, I/O status | stainless steel | 160 mm x 30 mm x 100 mm | IP 20 | 24 V (-20% / +25%) | 0 ... +55 °C | - | - | - | - | - | - | - | to the product |
|
CIO CANopen
4DI / 4DO / 8AI |
611 100 00 | 4DI / 4DO / 8AI | I/O system with CANopen field bus | Control cabinet modul | Standard product | CANopen | CANopen | 8 DI 5 ms, 4 DO 0, 5A | 8 AI (0/4 ... 20 mA) | system messages | stainless steel | 210 mm x 90 mm x 50 mm | IP 20 | 24 V (-20% / +25%) | 0 ... +55 °C | - | - | - | - | - | - | - | to the product |
|

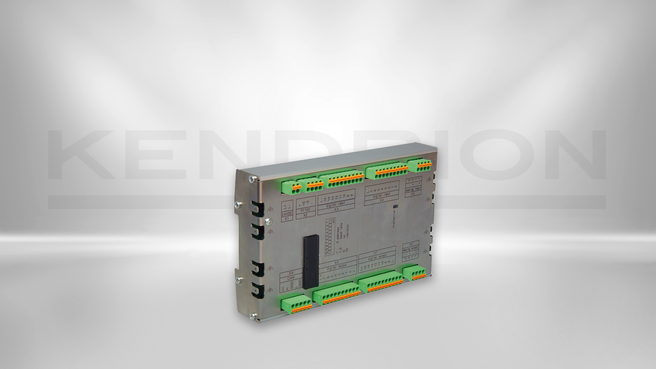

CIO CANopen
8DI/10DO/4AI-I/2AI-U/2AO-I/3AO-U/5Pt/2Thermo |
611 220 87 | 8DI/10DO/4AI-I/2AI-U/2AO-I/3AO-U/5Pt/2Thermo | I/O system with CANopen field bus | Control cabinet modul | Standard product | CANopen | CANopen | 8 DI 5 ms, 10 DO 0, 5A | 4AI-I, 4AI-U, 2AO-I, 3AO-U, 5Pt100, 2Thermo | system messages | plastic tray with stainless steel cover | 170 mm x 115 mm x 48 mm | IP 20 | 24 V (-20% / +25%) | 0 ... +55 °C | - | - | - | - | - | - | - | to the product |
|
CIO EtherCAT
8DI 1ms, 8DO 0,5A |
691 201 00 | IP65 8DI 1ms, 8DO 0, 5A | EtherCAT I/O IP65 digital | Sensor Aktor Modul IP65 | Special edition | EtherCAT | EtherCAT out | 8DI 1ms, 8DO 0, 5A | - | LED, des Steckers | plastic | 80 x 160 x 24 mm (ohne Stecker) | IP65 | 24 V (-20% / +25%) | 0 ... +55 °C | - | - | - | - | - | - | - | to the product |
|
CIO EtherCAT
DI4/DO8/AI1/Thermo3 |
691 200 01 | DI4/DO8/AI1/Thermo3 | EtherCAT I/O IP65 digital | Sensor Aktor Modul IP66 | Standard product | EtherCAT | EtherCAT out | 4DI 1ms, 8DO 0, 5A | AI1/Thermo3 | LED, des Steckers | plastic | 80 x 160 x 24 mm (ohne Stecker) | IP65 | 24 V (-20% / +25%) | 0 ... +55 °C | - | - | - | - | - | - | - | to the product |
