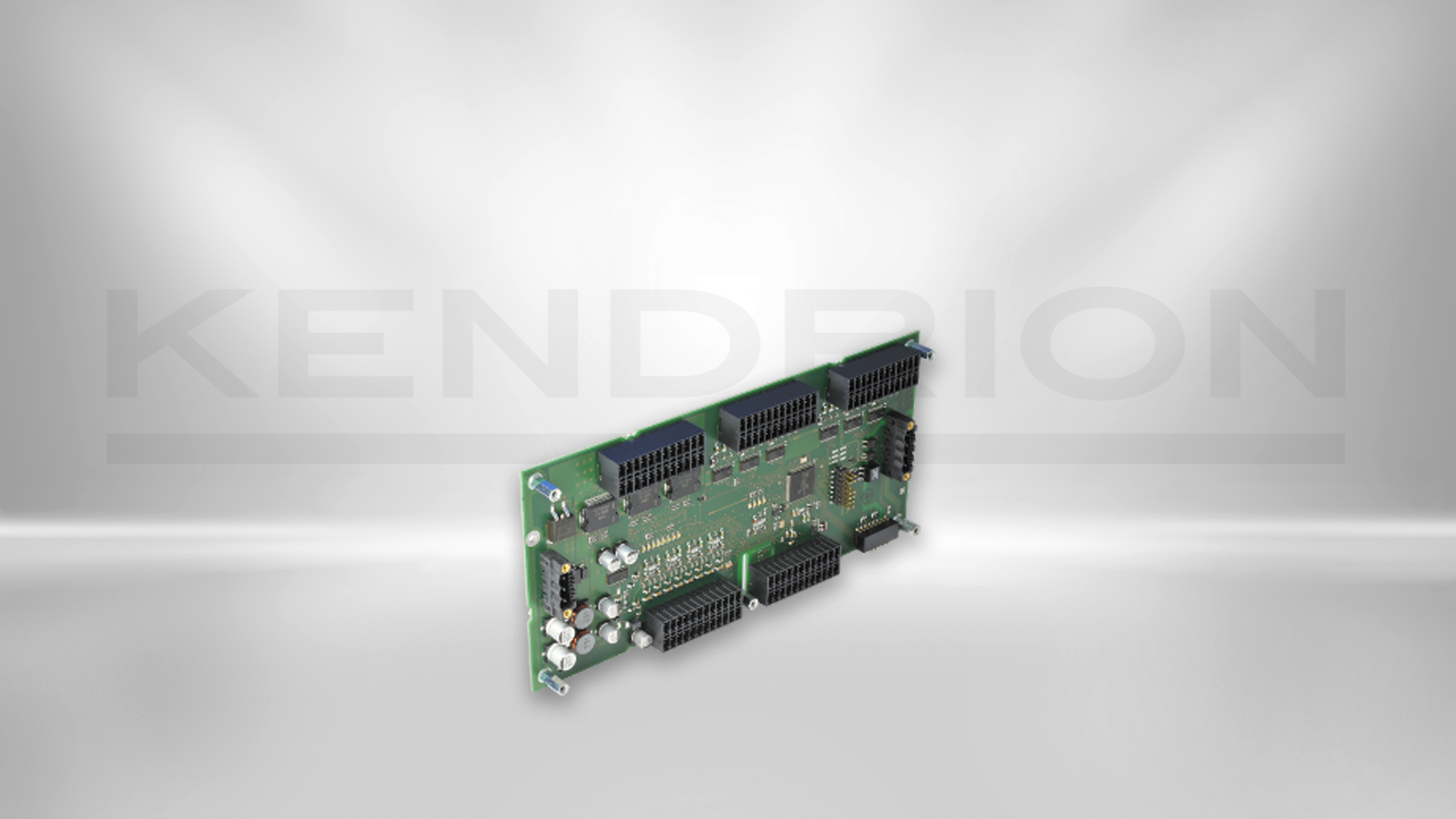

CIO CANopen
16DI/16DO/2AD/2DA/Pt100
611 200 00
The Kuhnke CIO compact I / O combines various input and output signals on a PCB. The process data are transferred via the CANopen interface. The open and therefore low-cost version allows fast wiring and is predestined for the requirements in the apparatus construction.
- Compact printed circuit
- Integrated I/Os: 16DI/16DO/2AD/2DA/Pt100
- CANopen fieldbus interface
Technical details
| Description | Value |
|---|---|
| Configuration | 16DI/16DO/2AD/2DA/Pt100 |
| Function | I/O system with CANopen field bus |
| Model | open circuit board for the control cabinet |
| Product status | Standard product |
| Field bus interfaces | CANopen |
| Interfaces | CANopen |
| Digital I/Os (integrated) | 16 DI 5ms sourcing input / 16 DO 0,5A sinking output |
| Analogue I/Os (integrated) | 2AI, 2AO, 1Pt100 |
| Type of connection | multi-pin plug connector |
| Status indication | system messages |
| Housing material | plastic tray optional |
| Dimensions (W x H x D) | 160 mm x 100 mm x 25 mm |
| IP-Protection Class | IP 00 |
| Supply voltage | 24 V (-20% / +25%) |
| Operating temperature | 0 ... +55 °C |
