CIO CANopen
4DI / 4DO / 8AI
611 100 00

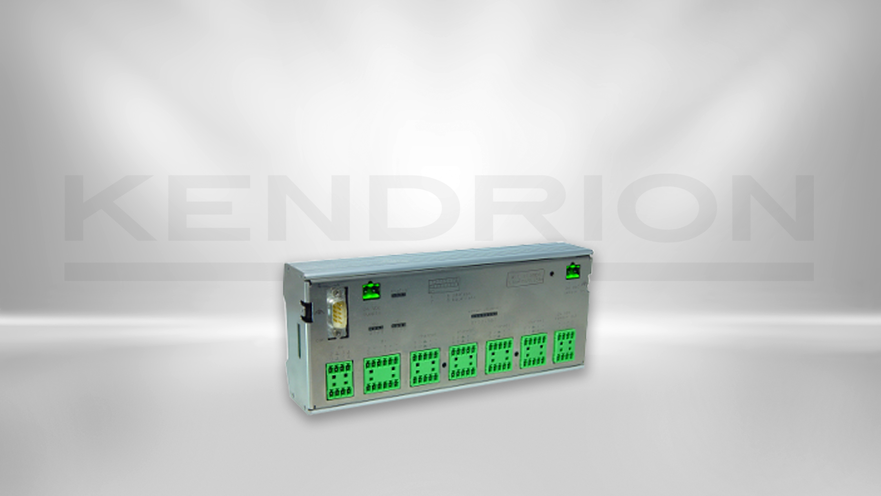

The Kuhnke CIO compact I / O with CANopen fieldbus interface contains various input and output signals in a compact housing for the DIN rail. The robust design allows the use in machine and apparatus construction with increased EMC requirements.
- Robust enclosure for the control cabinet
- Increased EMC requirements
- Integrated I/Os: 4DI / 4DO / 8AI
- CANopen fieldbus interface
Technical details
| Description | Value |
|---|---|
| Configuration | 4DI / 4DO / 8AI |
| Function | I/O system with CANopen field bus |
| Model | Control cabinet modul |
| Product status | Standard product |
| Field bus interfaces | CANopen |
| Interfaces | CANopen |
| Digital I/Os (integrated) | 8 DI 5 ms, 4 DO 0,5A |
| Analogue I/Os (integrated) | 8 AI (0/4 ... 20 mA) |
| Type of connection | multi-pin plug connector |
| Status indication | system messages |
| Housing material | stainless steel |
| Dimensions (W x H x D) | 210 mm x 90 mm x 50 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | 24 V (-20% / +25%) |
| Operating temperature | 0 ... +55 °C |
