Econo 328
640 001 28 000
1
2

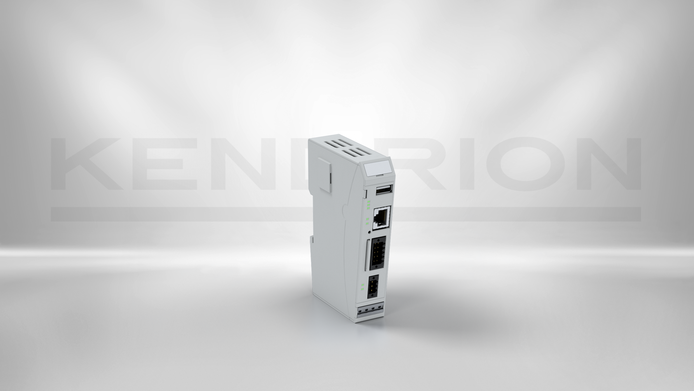

The Econo 328 is an industrial-grade embedded computer. It contains a Raspberry Pi Compute Module 4 with a 64-bit quad-core Cortex-A72 (ARM v8) SoC. Cooling is entirely passive, with no moving parts. The Econo 328 includes an integrated mini-UPS with power-fail functionality. The Linux RT extension enables real-time process control. These features qualify the device for use as an industrial gateway, automation controller, or micro edge computer. The Econo 328 provides an HDMI interface for connecting monitors. Optional expansion modules extend the available communication interfaces. Memory configuration and connectivity are adaptable to project-specific requirements.
- Robust hardware for industrial environments, powerful Quad Core ARM-A72
- Use of open source-based software
- Separate 1000 Mbit Ethernet interfaces
- Real-time capability for industrial and robotics applications
- integrated 1 s mini UPS
Technical details
| Description | Value |
|---|---|
| Configuration | IOT Controller |
| Function | Embedded PC |
| Model | Control cabinet modul |
| Product status | Standard product |
| Processor | Quad -core ARM Cortex A72 (1,5 GHz), Raspberry Pi 4 |
| Graphics Interfaces | HDMI interface, 3840 × 2160p @ 60 Hz (4K) |
| Operating system | Linux RT |
| Software | Drivers for USB extensions, SOFT PLC, API for hardware, Graphic, optional CODESYS Soft PLC |
| Main memory / working memory | 2GB DDR4L |
| Non-volatile memory | 128 kB |
| Mass storage / removable storage | µSD(HC)-Card Slot up to 32 GByte |
| Internal memory / Drive | eMMC Speicher 8 GByte |
| Interfaces | 2 x Ethernet (SW) 1 Gbit, 1 x Ethernet 1 Gbit, 2 x Ethernet (SW) 100 Mbit |
| Digital I/Os (integrated) | 2x USB3.0, 1x USB2.0 |
| Field bus interfaces | - |
| Housing material | Stainless steel, heat sink made of aluminum |
| Mounting | DIN-rail mounting |
| Betriebstemperatur | 0°C...+40 °C without power reduction, with fan up to +55 °C |
| Dimensions (W x H x D) | 51 x 125 x 90 mm, mit Lüfter ca. 51 x 145 x 100 mm |
| IP-Protection Class | IP20 |
| Supply voltage | 9,0 …28,8 V DC, Powerfail functions, 1 s mini UPS |
| Cyber Security, Compliance (CRA) | In progress |
| Certifications / Standards | CE / IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2 |
