Modular I/O
Modular I/O terminal with EtherCAT fieldbus connection
The Kuhnke FIO is a modular I/O terminal with EtherCAT fieldbus connection. The FIO I/O terminal consists of a Bus Coupler or a controller and various I/O modules for connecting the process signals. The EtherCAT protocol is maintained up to the last module. If required, safety technology can be integrated in the form of safety I/O modules. All decentralized EtherCAT Bus Terminals are modularly expandable and are suitable for connecting sensors and actuators in control cabinets.
- EtherCAT down to the last terminal
- Perfect module variety
- Included Safety
Products
(58)
|
Title
|
Type
|
Function
|
Dimensions (W x H x D)
|
Product status
|
Mounting
|
Certifications
|
IP-Protection Class
|
Model
|
Integrated function
|
Field bus interfaces
|
Status indication
|
Housing material
|
Supply voltage
|
Operating temperature
|
Immunity
|
Digital I/Os (integrated)
|
Analogue I/Os (integrated)
|
Interfaces
|
identification-number
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Kuhnke FIO Mix02 CoE |
694 444 62 | multifunctional | 25 x 120 x 90 mm | Phase-out product | - | CE, UL | IP 20 | Control cabinet module | Counter input 500kHz - 1MHz | EtherCAT / CoE | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 4 DI 0, 1- 0, 001ms; 4 DI 1 ms (optional 4 AI) / outputs: 16 DO 0, 1A; 8 DO 0, 5A | inputs: 4 AI 0-10V 12 Bit (optional 4 DI 1ms) | RS485, isolated | - | |
|
|
Kuhnke FIO Counter2 5V |
694 444 01 | Counter | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | A, B, Ref-Z | - | - | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 8 DI 1ms, 2 incremental encoders 200kHz / outputs: 2 DO 2A | - | - | - | |
|

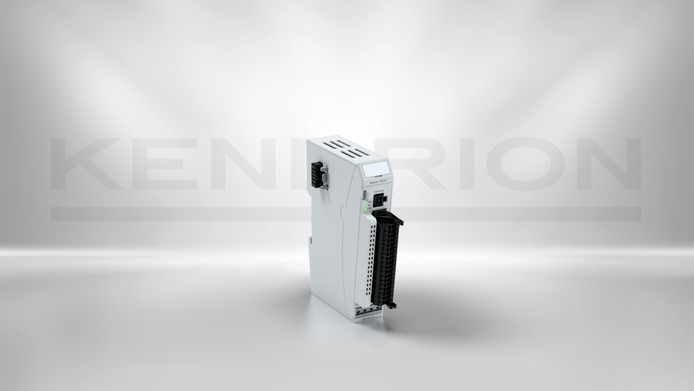

Kuhnke FIO Drive Control |
694 454 16 | motion control | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | interpolation positioning-operation speed-operation torque-regulation reference-motion according to DSP402 | EtherCAT | - | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | - | Outputs: Motor, Brake / Inputs: Incremental encoder, Hall encoder, 5 DI | - | Motor-types: 2 phase step-motor or brushless DC motor with/without incremental-encoder connection voltage: 12 - 72 VDC Motor-nominal-current : 5A Options: LAN-interface | - | |
|
|
Kuhnke FIO Mix04 |
694 444 64 | multifunctional | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet module | 2 x counter/encoder: RS422 32Bit 5MHz or 5/24V SE 32 Bit 1, 6 MHz or SSI 18-32 Bit 80-1000kbit/s or EnDAT 2.1 100 kHz-2 MHz or 6 x event counter HTL/TTL 32 Bit 1kHz | EtherCAT / CoE | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V (-15% / +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | not included | inputs: 4 AI 0/4 ... 20/24 mA or 0 ... +10 V 12Bit / outputs: 4 AO 0/4 ... 20/24 mA or -10/0 ... +10 V 16Bit | not included | - | |
|
|
Kuhnke FIO AI4 12 Bit AO4 16 Bit CoE |
694 444 65 | analogue - easy configuration | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | analogue | LEDs allocated to the point of termination | IP 20 | 24 V (-15% / +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | EtherCAT | inputs: 4 AI 0..10V, 0(4)..20mA 12Bit/ outputs: 4 AO 0..10V, +/-10V, 0(4)..20(24)mA 16Bit | - | - | |
|
Kuhnke FIO RS485 1 Port |
694 455 02 | communication | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT, RS485 | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V (-15% / +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | - | - | - | - | |
|
|
Kuhnke FIO RS232 2 Port |
694 455 04 | communication | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT, RS232 | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V (-15% / +20%) | 0 ... +55 | Zone B according to EN 61131-2 | - | - | - | - | |
|
|
Kuhnke FIO CAN |
694 455 06 | communication | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT, CAN | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V (-15% / +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | - | - | - | - | |
|
|
Kuhnke FIO Counter-Posi2 5V-24V |
694 454 01 | Counter | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet modul | - | EtherCAT | EtherCAT Status, LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V (-15% / +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | inputs: 8 DI 1ms, 2 incremental encoders 200kHz / outputs: 2 DO 2A | outputs: 2 AO -10..+10V 12Bit | A, B, Ref-Z | - | |
|
|
Kuhnke FIO Counter-Encoder DI (CoE) |
694 454 53 | Counter, multifunctional | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet module | 2 x counter/encoder: RS422 32Bit 5MHz or 5/24V SE 32 Bit 1, 6 MHz or SSI 18-32 Bit 80-1000kbit/s or EnDAT 2.1 100 kHz-2 MHz or 6 x event counter HTL/TTL 32 Bit 1kHz | EtherCAT / CoE | LEDs allocated to the point of termination | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | Inputs: 4 DI 1ms | not included | not included | - | |
|

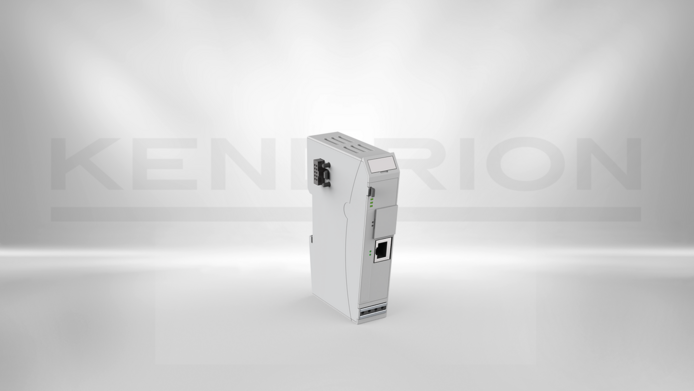

Kuhnke FIO Extender 1 Port |
694 400 01 | communication | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet module | EtherCAT out | EtherCAT out | EtherCAT Status, 1 x EtherCAT out | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | - | - | - | - | |
|

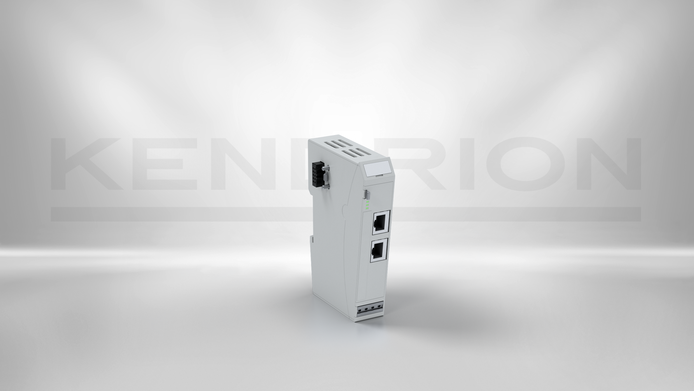

Kuhnke FIO Extender 2 Port |
694 400 02 | communication | 25 x 120 x 90 mm | Standard product | - | CE, UL | IP 20 | Control cabinet module | EtherCAT out | EtherCAT out | EtherCAT status, 2 x EtherCAT out | Aluminium frame, plastic housing | 24 V DC (-15% ... +20%) | 0 ... +55°C | Zone B according to EN 61131-2 | - | - | - | - | |
|

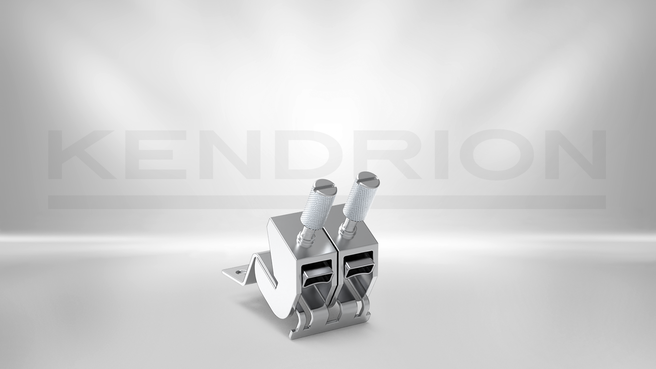

Kuhnke FIO Shielding terminal 2x8 mm |
694 412 03 | Accessories - Shielding terminal | 2x8 mm | Standard product | Mounted directly on the module, mounting material included | CE, UL | IP 20 | - | - | - | - | - | - | - | - | - | - | - | - | |
|

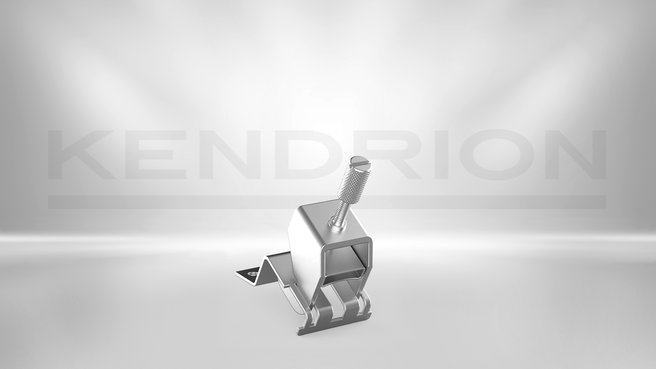

Kuhnke FIO Shielding terminal 1x14 mm |
694 412 04 | Accessories - Shielding terminal | 1x14 mm | Standard product | Mounted directly on the module, mounting material included | CE, UL | IP 20 | - | - | - | - | - | - | - | - | - | - | - | - | |
|

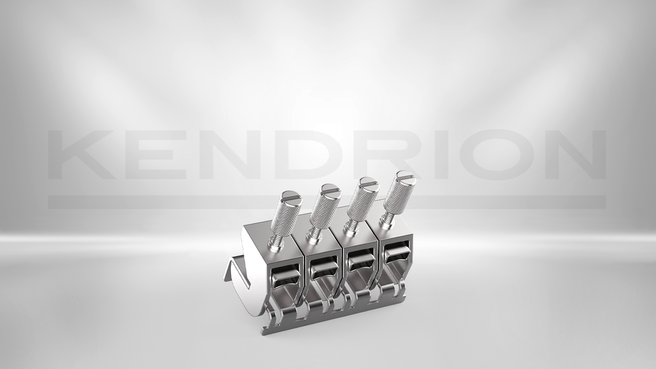

Kuhnke FIO Shielding terminal 4x8 mm |
694 412 05 | Accessories - Shielding terminal | 4x8 mm | Standard product | Mounted directly on the module, mounting material included | CE, UL | IP 20 | - | - | - | - | - | - | - | - | - | - | - | - | |
|

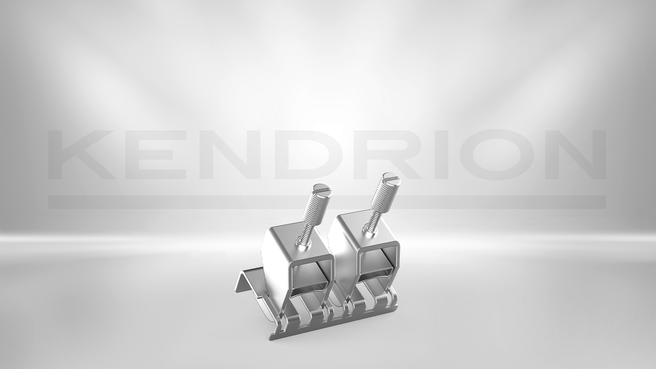

Kuhnke FIO Shielding terminal 2x14 mm |
694 412 06 | Accessories - Shielding terminal | 2x14 mm | Standard product | Mounted directly on the module, mounting material included | CE, UL | IP 20 | - | - | - | - | - | - | - | - | - | - | - | - |
