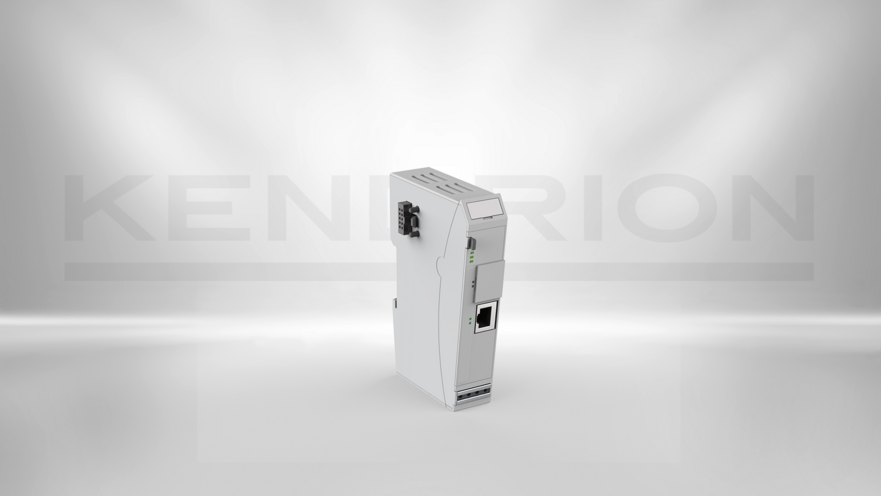

Kuhnke FIO
Extender 1 Port
694 400 01
Kuhnkes FIO is a system of I/O modules for interconnecting the process signals in an EtherCAT network. It consists of the bus coupler and a range of I/O modules. Kuhnke's FIO Extender lets you extend a Kuhnke FIO block or a Kuhnke FIO controller (Embedded PC) by EtherCAT slaves equipped with a standard 100 Base Tx connection.
- Connection of additional EtherCAT slaves
- 1 x RJ45 socket
- Activity display via LEDs
Technical details
| Description | Value |
|---|---|
| Function | communication |
| Model | Control cabinet module |
| Integrated function | EtherCAT out |
| Product status | Active (from stock or on request) |
| Field bus interfaces | EtherCAT out |
| Status indication | EtherCAT Status, 1 x EtherCAT out |
| Housing material | Aluminium frame, plastic housing |
| Dimensions (W x H x D) | 25 x 120 x 90 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | 24 V DC (-15% ... +20%) |
| Operating temperature | 0 ... +55°C |
| Immunity | Zone B according to EN 61131-2 |
| Certifications | CE, UL |
