Linear solenoids
Discover our Standard portfolio Single stroke solenoids, bistable solenoids and heavy duty solenoids from Kendrion of linear solenoids.
Need some help? Try our new Linear Solenoid Product Guide.
Products
(105)
|
Title
|
Type
|
Duty cycle (%)
|
Power consumption (W)
|
Stroke (mm)
|
Inital force (N)
|
Nominal voltage (V)
|
End force (N)
|
Return spring
|
Length
|
Width
|
Height
|
Design
|
Protection class
|
Thermal class
|
Connection
|
Solenoid weight (g)
|
Armature weight (g)
|
Special Features
|
Product Line
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

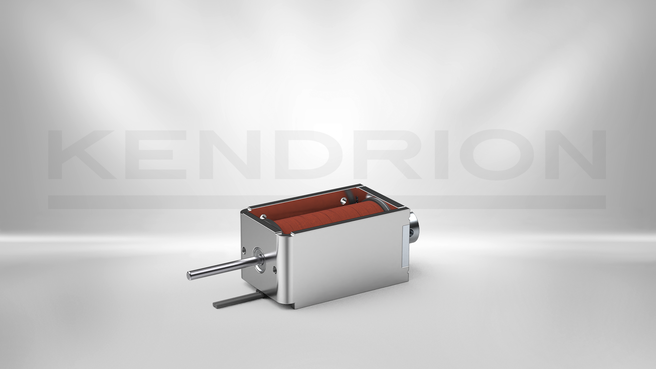

Linear Solenoid H3486 | H3486-R-F-24V DC 100 ED | 100 | 8 | 12 | 0.6 | 24 | 6 | Yes | 30 | 26 | 49.5 | No | IP 00 | B, 130 | 10 cm lead | 140 | 32 | - | Single Stroke Linear Solenoids | |
|
Linear Solenoid H4206 | H4206-F-24V DC 100 ED | 100 | 6.2 | 7 | 0.7 | 24 | 7 | No | 35 | 31 | 36 | No | IP 00 | E, 120 | 10 cm lead | 145 | 25 | - | Single Stroke Linear Solenoids | |
|

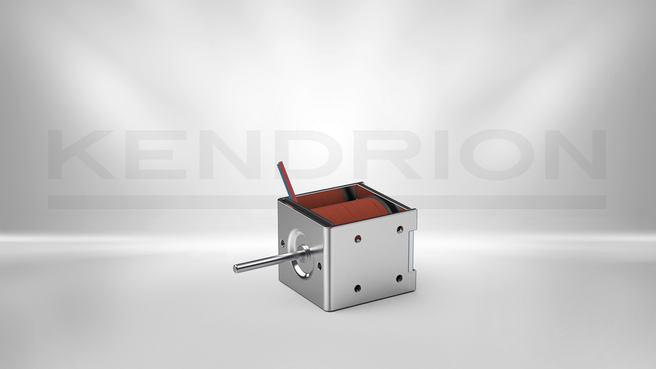

Linear Solenoid H4246 | H4246-F-24V DC 100 ED | 100 | 6.2 | 7 | 0.7 | 24 | 7 | No | 35 | 31 | 36 | No | IP 00 | E, 120 | 10 cm lead | 145 | 25 | - | Single Stroke Linear Solenoids | |
|

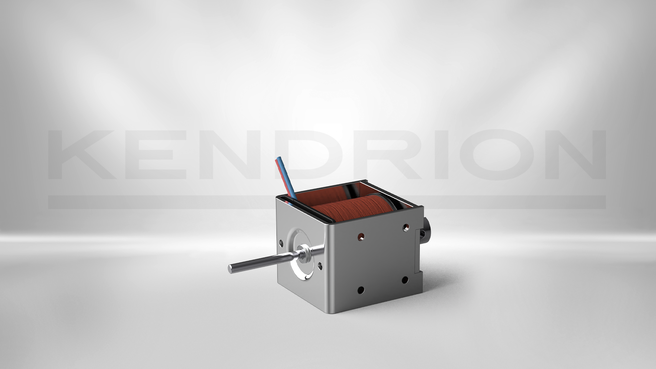

Linear Solenoid H4286 | H4286-R-F-24V DC 100 ED | 100 | 6.2 | 7 | 0.7 | 24 | 7 | Yes | 35 | 31 | 36 | No | IP 00 | E, 120 | 10 cm lead | 145 | 25 | - | Single Stroke Linear Solenoids | |
|

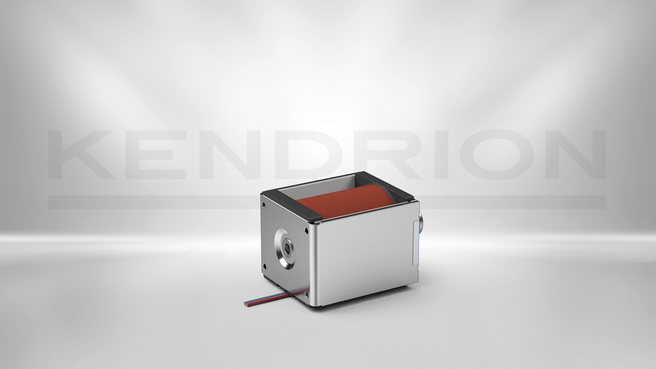

Linear Solenoid H6206 | H6206-F-24V DC 100 ED | 100 | 11 | 15 | 0.8 | 24 | 18 | No | 44 | 38 | 50 | No | IP 00 | B, 130 | 10 cm lead | 320 | 45 | - | Single Stroke Linear Solenoids | |
|

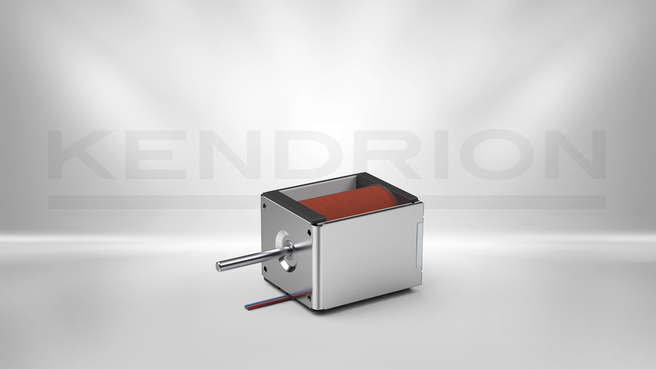

Linear Solenoid H6246 | H6246-F-24V DC 100 ED | 100 | 11 | 15 | 0.8 | 24 | 18 | No | 44 | 38 | 50 | No | IP 00 | B, 130 | 10 cm lead | 320 | 45 | - | Single Stroke Linear Solenoids | |
|
Linear Solenoid H6286 | H6286-R-F-24V DC 100 ED | 100 | 11 | 15 | 0.8 | 24 | 18 | Yes | 44 | 38 | 50 | No | IP 00 | B, 130 | 10 cm lead | 320 | 45 | - | Single Stroke Linear Solenoids | |
|
Linear Solenoid HU240 | HU240-F-24V DC 100 ED | 100 | 2.9 | 6 | 0.3 | 24 | 0.7 | No | 16 | 17.5 | 24 | No | IP 00 | E, 120 | 10 cm lead | 27 | 5 | - | Single Stroke Linear Solenoids | |
|
Linear Solenoid HU244 | HU244-F-24V DC 100 ED | 100 | 2.9 | 6 | 0.3 | 24 | 0.7 | No | 16 | 17.5 | 24 | No | IP 00 | E, 120 | 10 cm lead | 27 | 5 | - | Single Stroke Linear Solenoids | |
|
|

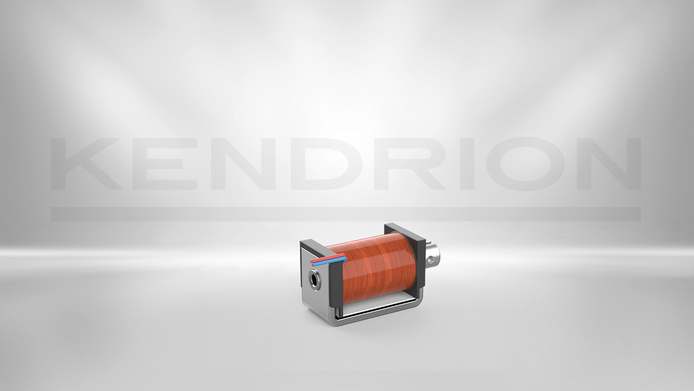

Linear Solenoid HU320 | HU320-F-24V DC 100 ED | 100 | 4.2 | 6 | 0.2 | 24 | 2.4 | No | 18 | 21 | 32 | No | IP 00 | E, 120 | 10 cm lead | 55 | 11 | - | Single Stroke Linear Solenoids | |
|
|

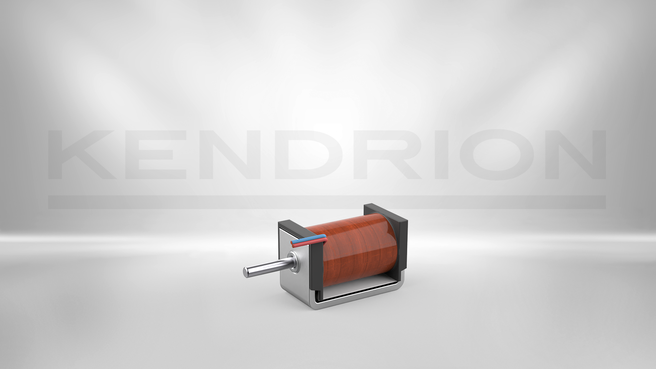

Linear Solenoid HU324 | HU324-F-24V DC 100 ED | 100 | 4.2 | 6 | 0.2 | 24 | 2.4 | No | 18 | 21 | 32 | No | IP 00 | E, 120 | 10 cm lead | 55 | 11 | - | Single Stroke Linear Solenoids | |
|

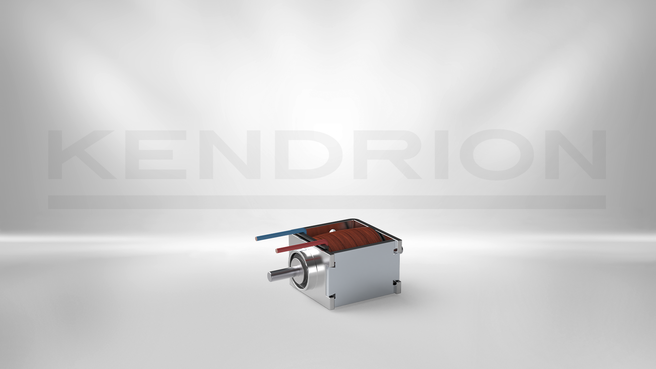

Linear Solenoid MM15 | MM 15-F-24V DC 100 ED | 100 | 1.8 | 2 | 0.2 | 24 | 0.5 | Yes | 12.1 | 16.5 | 16 | No | IP 00 | E, 120 | 10 cm lead | 12, 5 | 2 | - | Single Stroke Linear Solenoids | |
|

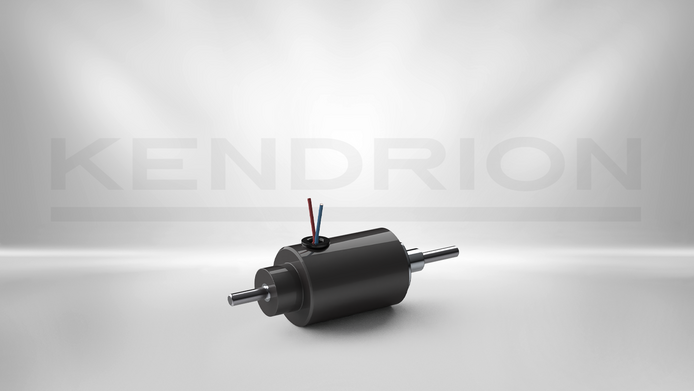

High Power Linear Solenoid RM20 | RM 20-R-F-24V DC 100ED | 100 | 3.9 | 3 | 1.45 | 24 | 2.9 | Yes | 20 | 20 | 28 | No | IP 40 | B, 130 | 10 cm lead | 60 | 12 | - | High Power Linear Solenoids | |
|

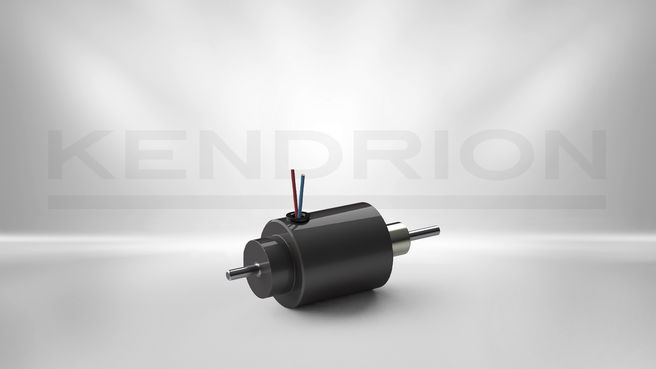

High Power Linear Solenoid RM26 | RM 26-R-F-24V DC 100 ED | 100 | 5.5 | 4 | 1.9 | 24 | 6 | Yes | 26 | 26 | 30 | No | IP 40 | B, 130 | 10 cm lead | 117 | 24 | - | High Power Linear Solenoids | |
|

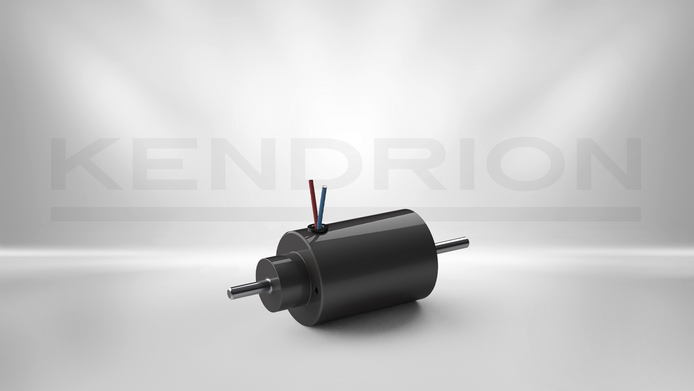

High Power Linear Solenoid RM32 | RM 32-R-F-24V DC 100ED | 100 | 6.5 | 8 | 3 | 24 | 7 | Yes | 32 | 32 | 45 | No | IP 40 | B, 130 | 10 cm lead | 235 | 40 | - | High Power Linear Solenoids | |
|

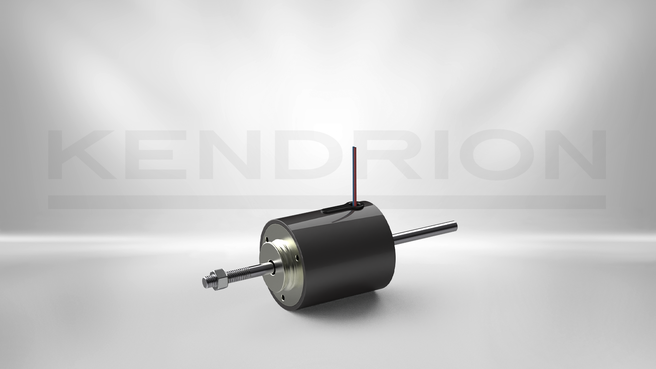

High Power Linear Solenoid RM040 | RM040W-OBOO-F-24V DC 100 ED | 100 | 11 | 8 | 6 | 24 | 18 | No | 40 | 40 | 45 | No | IP 40 | F, 155 | 10 cm lead | 380 | 60 | - | High Power Linear Solenoids | |
|

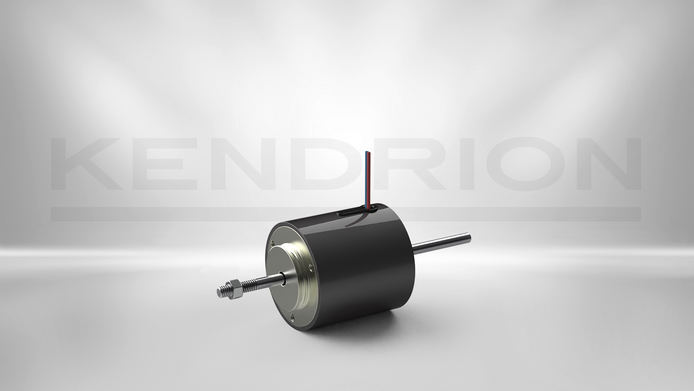

High Power Linear Solenoid RM050 | RM050W-OBOO-F-24V DC 100 ED | 100 | 20 | 10 | 13 | 24 | 25 | No | 50 | 50 | 50 | No | IP 40/65 | F, 155 | 20 cm lead | 610 | 200 | - | High Power Linear Solenoids | |
|

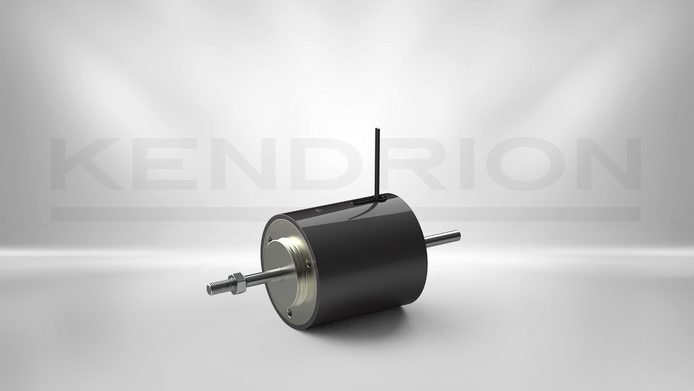

High Power Linear Solenoid RM060 | RM060W-OBOO-F-24V DC 100 ED | 100 | 25 | 12 | 23 | 24 | 90 | No | 60 | 60 | 64 | No | IP 40/65 | F, 155 | 20 cm lead | 1300 | 250 | - | High Power Linear Solenoids | |
|

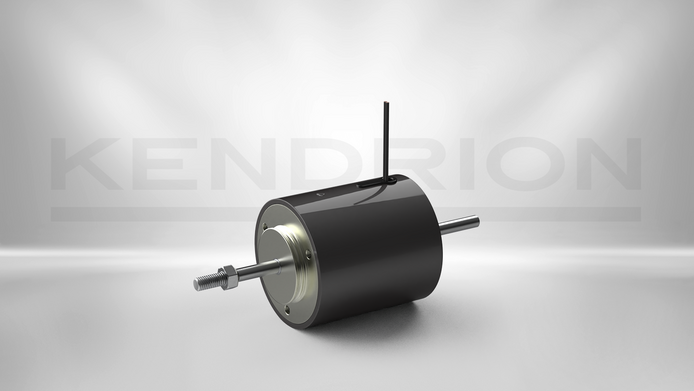

High Power Linear Solenoid RM070 | RM070W-OBOO-F-24V DC 100 ED | 100 | 31 | 15 | 33 | 24 | 105 | No | 70 | 70 | 74 | No | IP 40/65 | F, 155 | 20 cm lead | 2000 | 400 | - | High Power Linear Solenoids | |
|

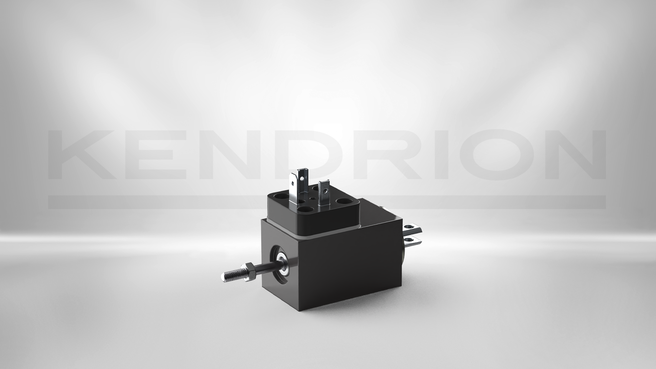

High Power Linear Solenoid V30 | V30-N-24V DC 100 ED | 100 | 9.2 | 6 | 3 | 24 | 5 | No | 30 | 30 | 52 | No | IP 40/65 | E, 120 | N GerätePlug | 285 | 28 | - | High Power Linear Solenoids | |
|
High Power Linear Solenoid V45 | V45-F-24V DC 100 ED | 100 | 18 | 15 | 5 | 24 | 50 | No | 45 | 45 | 75 | No | IP 40/65 | E, 120 | 10 cm lead | 970 | 220 | - | High Power Linear Solenoids |
