Linear solenoids

Discover our Standard portfolio Single stroke solenoids, bistable solenoids and heavy duty solenoids from Kendrion of linear solenoids.


Need some help? Try our new Linear Solenoid Product Guide.

Start Product Guide

Products (105)

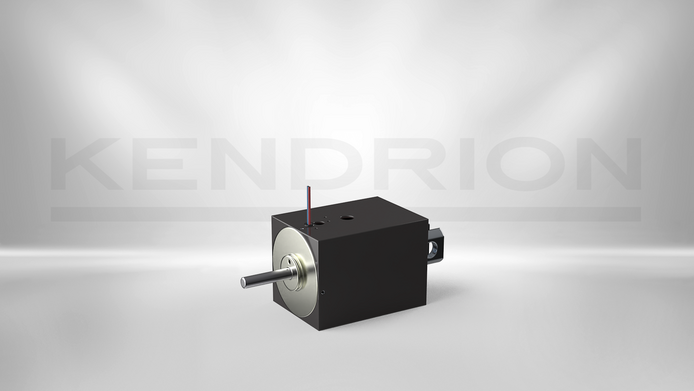

High Power Linear Solenoid V65

V65-F-24V DC 100 ED

Duty cycle 100 %
Power consumption 33 W
Stroke 20 mm
Inital force 35 N
Go to product

High Power Linear Solenoid LHP035

44030017

Duty cycle 100 %
Power consumption 23.78 W
Stroke 5 mm
Inital force 22.5 N
Go to product

High Power Linear Solenoid LHP035

44030076

Duty cycle 100 %
Power consumption 23.78 W
Stroke 5 mm
Inital force 21.9 N
Go to product

High Power Linear Solenoid LHP035

44030148

Duty cycle 100 %
Power consumption 23.78 W
Stroke 5 mm
Inital force 22.5 N
Go to product

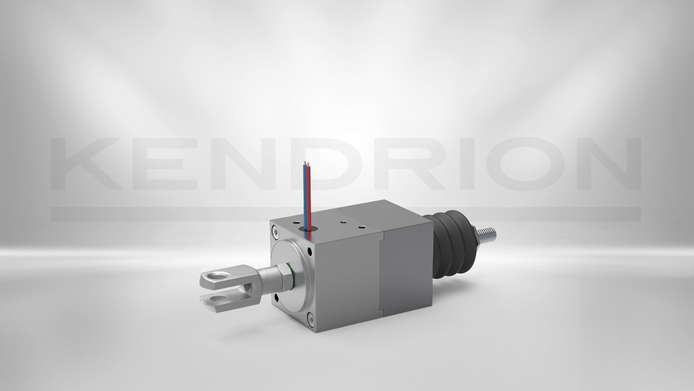

High Power Linear Solenoid LHP035

44030157

Duty cycle 100 %
Power consumption 23.78 W
Stroke 5 mm
Inital force 21.9 N
Go to product

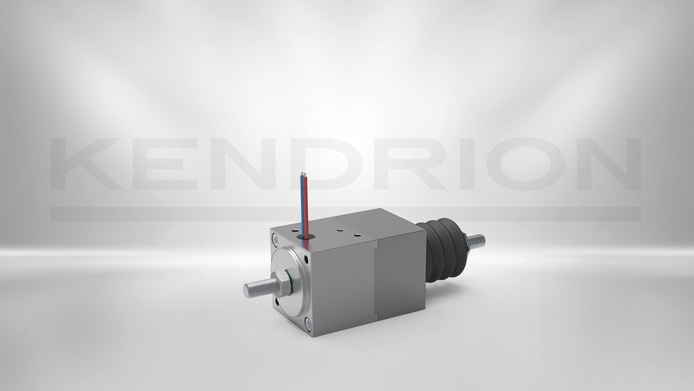

High Power Linear Solenoid LHP035

LHP0350103

Duty cycle 100 %
Power consumption 23.78 W
Stroke 5 mm
Inital force 21.9 N
Go to product

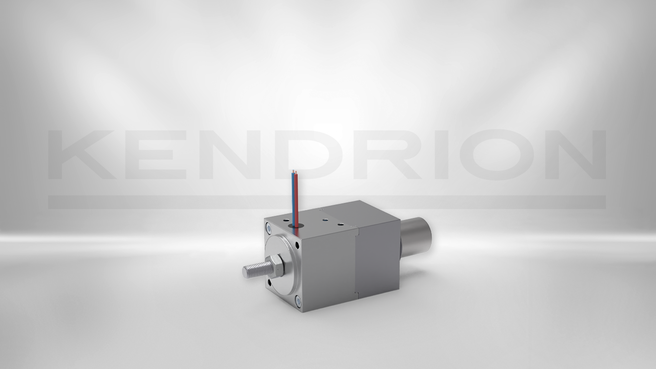

High Power Linear Solenoid LHP035

44030018

Duty cycle 100 %
Power consumption 23.78 W
Stroke 10 mm
Inital force 12.4 N
Go to product

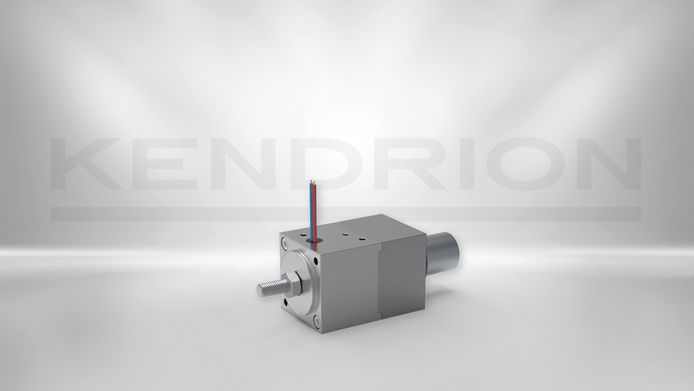

High Power Linear Solenoid LHP035

44030021

Duty cycle 100 %
Power consumption 23.78 W
Stroke 10 mm
Inital force 12.4 N
Go to product

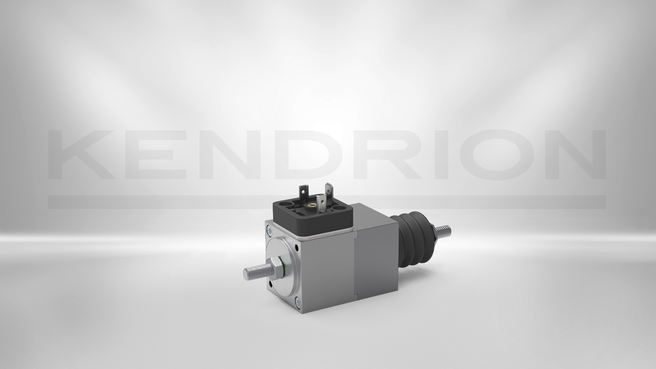

High Power Linear Solenoid LHP035

44030062

Duty cycle 100 %
Power consumption 23.78 W
Stroke 10 mm
Inital force 12 N
Go to product

High Power Linear Solenoid LHP035

44030096

Duty cycle 100 %
Power consumption 23.78 W
Stroke 10 mm
Inital force 12 N
Go to product

High Power Linear Solenoid LHP035

44030122

Duty cycle 100 %
Power consumption 23.78 W
Stroke 10 mm
Inital force 9 N
Go to product

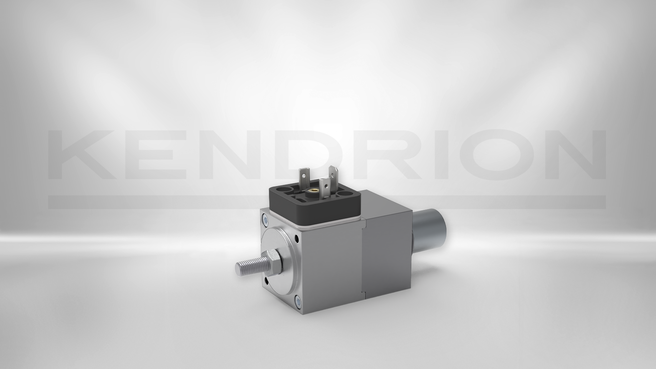

High Power Linear Solenoid LHP035

44030134

Duty cycle 100 %
Power consumption 23.78 W
Stroke 10 mm
Inital force 12.4 N
Go to product

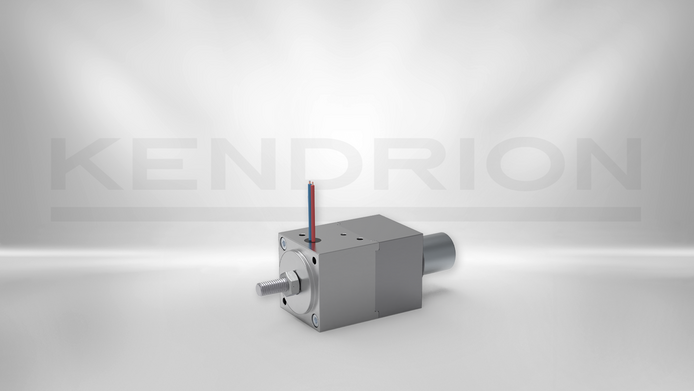

High Power Linear Solenoid LHP035

44030029

Duty cycle 100 %
Power consumption 14.1 W
Stroke 15 mm
Inital force 6.8 N
Go to product

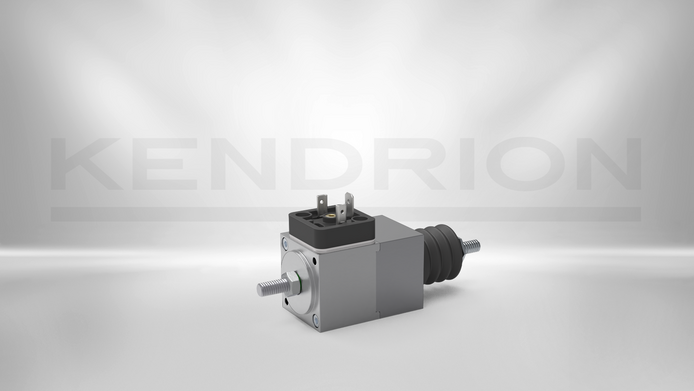

High Power Linear Solenoid LHP035

44030064

Duty cycle 100 %
Power consumption 23.78 W
Stroke 15 mm
Inital force 8.7 N
Go to product

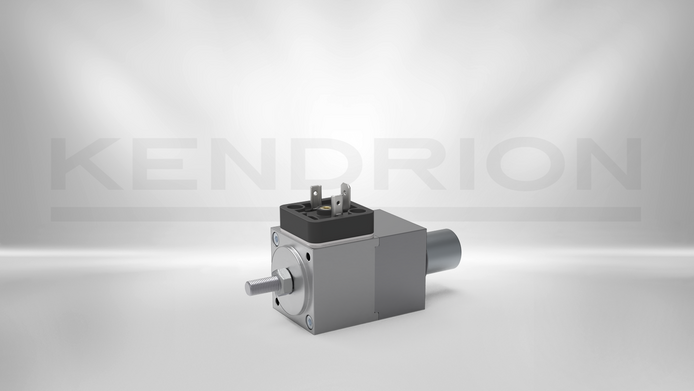

High Power Linear Solenoid LHP035

LHP0350016

Duty cycle 100 %
Power consumption 23.78 W
Stroke 15 mm
Inital force 9 N
Go to product

High Power Linear Solenoid LHP035

LHP0350218

Duty cycle 100 %
Power consumption 14.1 W
Stroke 15 mm
Inital force 6.8 N
Go to product

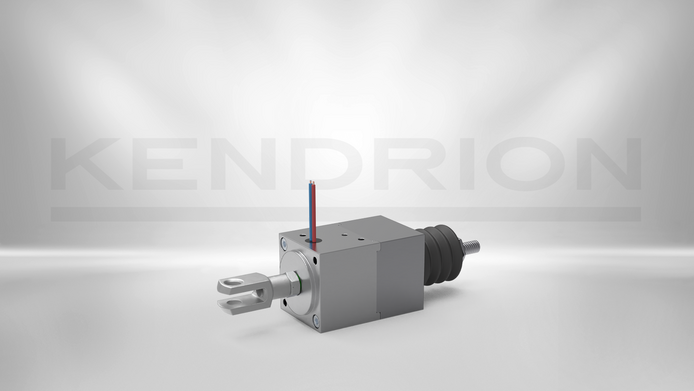

High Power Linear Solenoid LHP035

44030033

Duty cycle 100 %
Power consumption 23.78 W
Stroke 20 mm
Inital force 7.2 N
Go to product

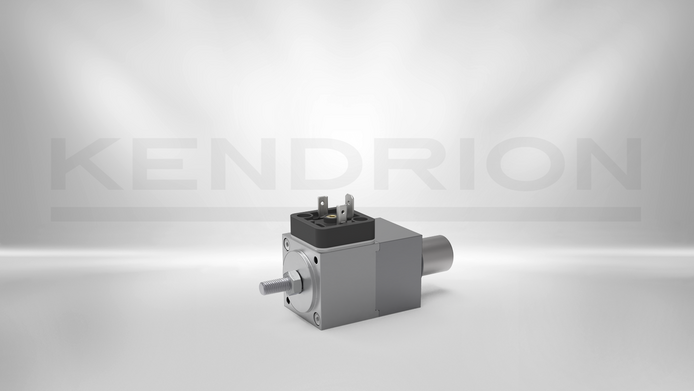

High Power Linear Solenoid LHP035

44030066

Duty cycle 100 %
Power consumption 23.78 W
Stroke 20 mm
Inital force 7.4 N
Go to product

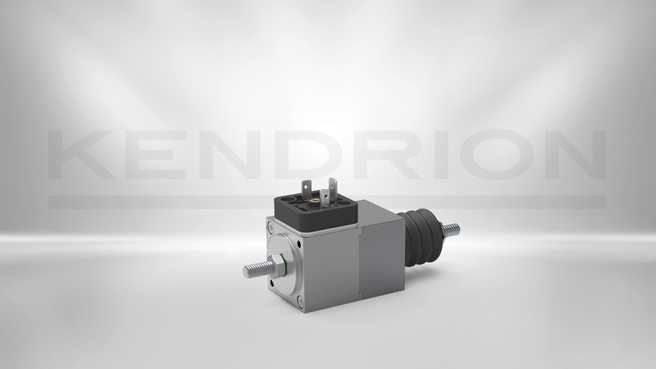

High Power Linear Solenoid LHP035

44030072

Duty cycle 100 %
Power consumption 23.78 W
Stroke 20 mm
Inital force 7.2 N
Go to product

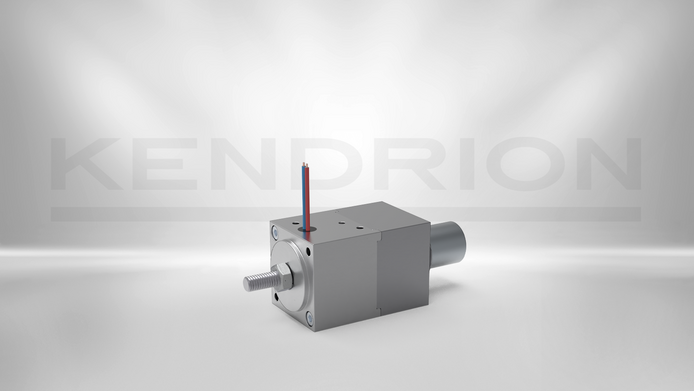

High Power Linear Solenoid LHP035

44030141

Duty cycle 100 %
Power consumption 23.78 W
Stroke 20 mm
Inital force 7.4 N
Go to product

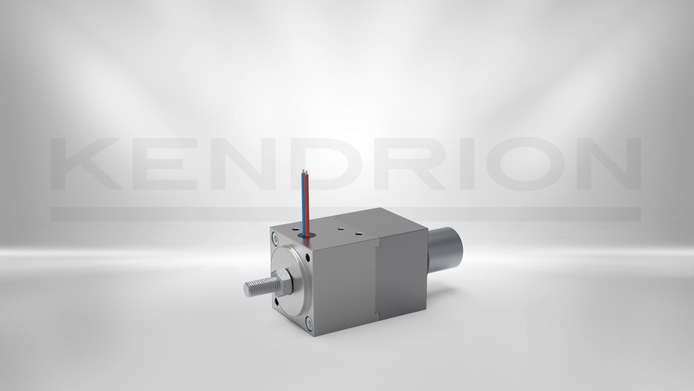

High Power Linear Solenoid LHP035

LHP0350010

Duty cycle 100 %
Power consumption 23.78 W
Stroke 20 mm
Inital force 7.4 N
Go to product
Title
Type
Duty cycle (%)
Power consumption (W)
Stroke (mm)
Inital force (N)
Nominal voltage (V)
End force (N)
Return spring
Length
Width
Height
Design
Protection class
Thermal class
Connection
Solenoid weight (g)
Armature weight (g)
Special Features
Product Line
Details
High Power Linear Solenoid V65 V65-F-24V DC 100 ED 100 33 20 35 24 200 No 65 65 90.4 No IP 40/65 F, 155 10 cm lead 2500 480 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030017 100 23.78 5 22.5 24 80 No 60 35 35 No IP 40 F 155 Leads / cable 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030076 100 23.78 5 21.9 24 75 Yes 60 35 35 No IP 54 F 155 Plug 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030148 100 23.78 5 22.5 24 80 Yes 60 35 35 No IP 40 F 155 Leads / cable 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030157 100 23.78 5 21.9 24 75 Yes 60 35 35 No IP 54 F 155 Leads / cable 450 110 fork head High Power Linear Solenoids
High Power Linear Solenoid LHP035 LHP0350103 100 23.78 5 21.9 24 75 Yes 60 35 35 No IP 54 F 155 Leads / cable 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030018 100 23.78 10 12.4 24 65 No 60 35 35 No IP 40 F 155 Leads / cable 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030021 100 23.78 10 12.4 24 65 Yes 60 35 35 No IP 40 F 155 Leads / cable 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030062 100 23.78 10 12 24 60 No 60 35 35 No IP 54 F 155 Plug 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030096 100 23.78 10 12 24 60 Yes 60 35 35 No IP 54 F 155 Plug 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030122 100 23.78 10 9 24 60 Yes 60 35 35 No IP 40 F 155 Plug 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030134 100 23.78 10 12.4 24 65 No 60 35 35 No IP 40 F 155 Plug 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030029 100 14.1 15 6.8 24 45 No 60 35 35 No IP 40 F 155 Leads / cable 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030064 100 23.78 15 8.7 24 55 No 60 35 35 No IP 54 F 155 Plug 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 LHP0350016 100 23.78 15 9 24 60 No 60 35 35 No IP 40 F 155 Plug 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 LHP0350218 100 14.1 15 6.8 24 45 Yes 60 35 35 No IP 40 F 155 Leads / cable 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030033 100 23.78 20 7.2 24 40 Yes 60 35 35 No IP 54 F 155 Leads / cable 450 110 fork head High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030066 100 23.78 20 7.4 24 45 Yes 60 35 35 No IP 40 F 155 Plug 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030072 100 23.78 20 7.2 24 40 Yes 60 35 35 No IP 54 F 155 Plug 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 44030141 100 23.78 20 7.4 24 45 No 60 35 35 No IP 40 F 155 Leads / cable 450 110 - High Power Linear Solenoids
High Power Linear Solenoid LHP035 LHP0350010 100 23.78 20 7.4 24 45 Yes 60 35 35 No IP 40 F 155 Leads / cable 450 110 - High Power Linear Solenoids
