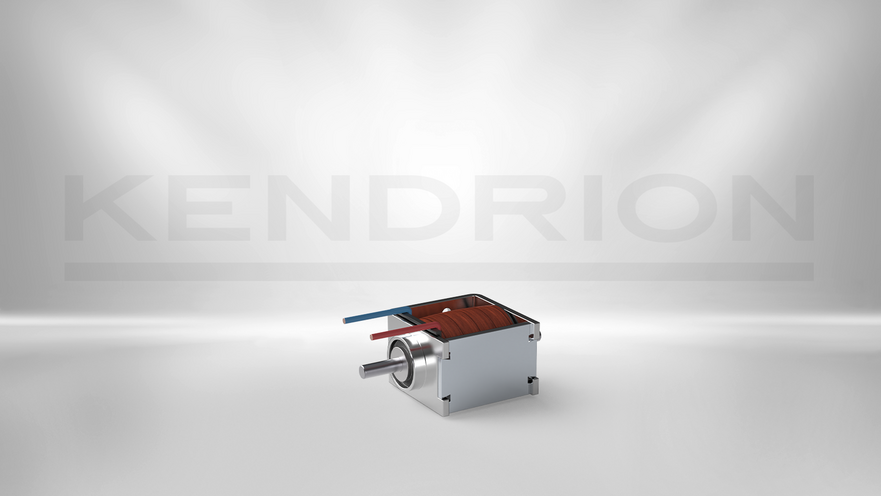

Linear Solenoid MM15
MM 15-F-24V DC 100 ED
Linear solenoid in open design as a combi solenoid with integrated return spring. Our preferred types are available from stock in small quantities. Other versions or other nominal voltages are available on request. Further information about our solenoids can be found in the download area.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 1.8 W |
| Stroke | 2 mm |
| Inital force | 0.2 N |
| Nominal voltage | 24 V |
| End force | 0.5 N |
| Return spring | Yes |
| Dimensions (length, width, height) | 12.1 x 16.5 x 16 mm |
| Length | 12.1 |
| Width | 16.5 |
| Height | 16 |
| Design | No |
| Protection class | IP 00 |
| Thermal class | E, 120 |
| Connection | 10 cm lead |
| Solenoid weight | 12,5 g |
| Armature weight | 2 g |
| Product Line | Single Stroke Linear Solenoids |
