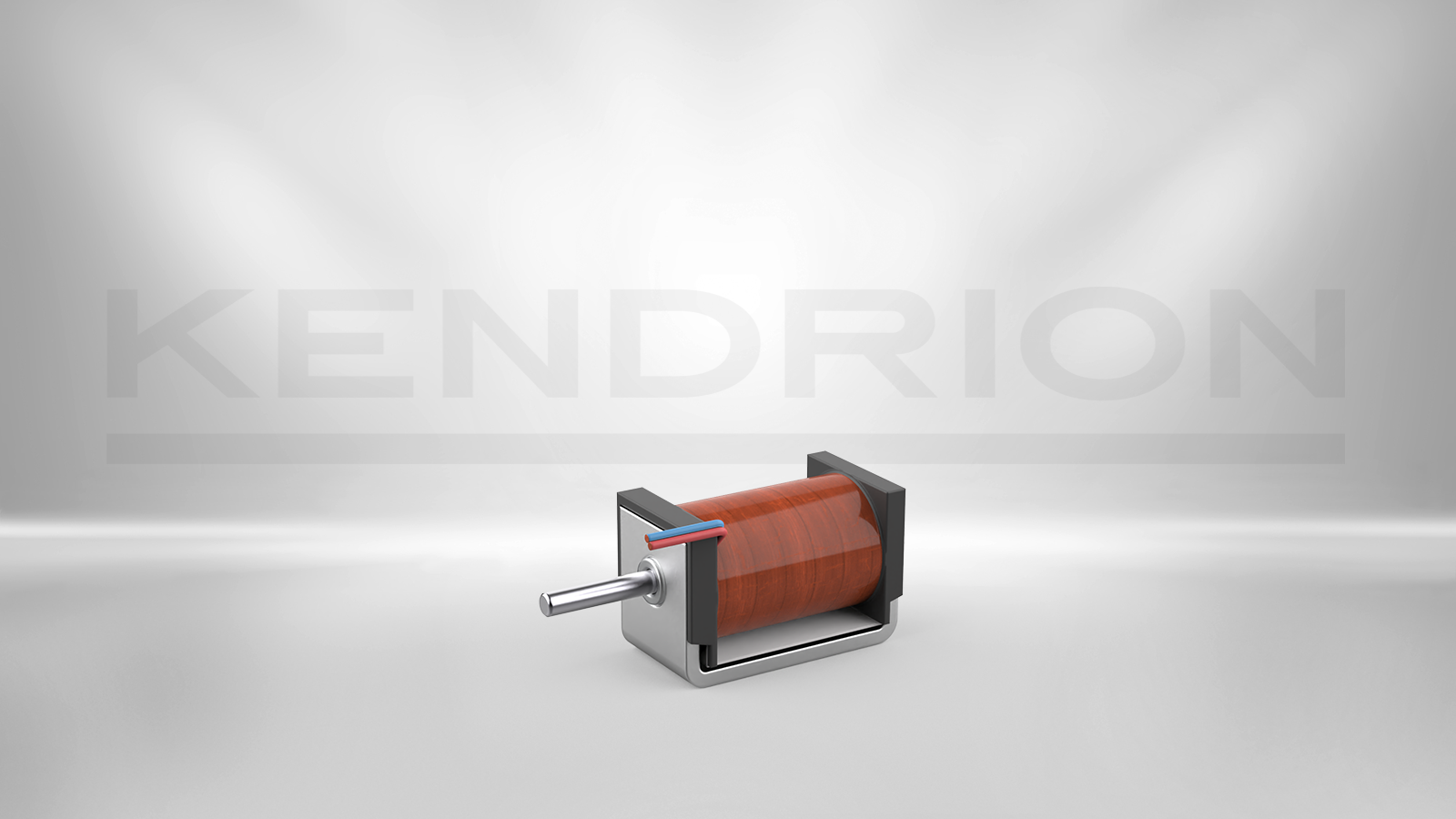

Linear Solenoid HU244
HU244-F-24V DC 100 ED
Open frame solenoid as push type solenoid. Our preferred types are available in small quantities from stock. Other versions (e.g. with integrated return spring) or other voltages are available on request. More information can be found in the download area.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 2.9 W |
| Stroke | 6 mm |
| Inital force | 0.3 N |
| Nominal voltage | 24 V |
| End force | 0.7 N |
| Return spring | No |
| Dimensions (length, width, height) | 16 x 17.5 x 24 mm |
| Length | 16 |
| Width | 17.5 |
| Height | 24 |
| Design | No |
| Protection class | IP 00 |
| Thermal class | E, 120 |
| Connection | 10 cm lead |
| Solenoid weight | 27 g |
| Armature weight | 5 g |
| Product Line | Single Stroke Linear Solenoids |
