Holding magnets

Powerful electro holding magnets

Kendrion holding magnets are pot magnets used to hold and clamp ferromagnetic workpieces. They are characterized by high holding forces and individual designs. The electromagnets are used in industrial lifting technology, in elevator brakes, in door holding devices for fire protection and are used for machine safety. Permanent holding magnets ensure that workpieces are held securely even in the event of a power failure.

Need some help? Try our new Holding Magnet Product Guide.

Start Product Guide

Products (62)

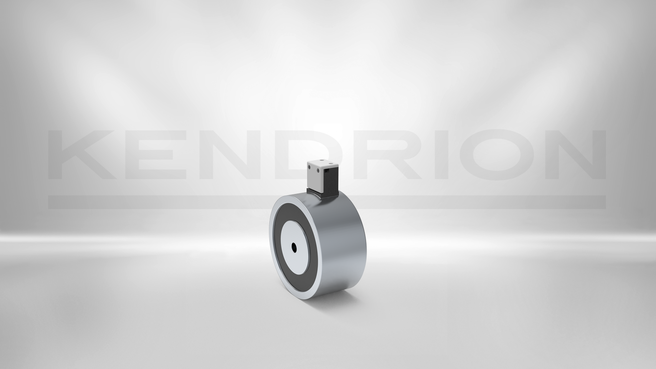

Electro Holding Magnet GTB070

GTB070.000100

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 12 W
Holding force 1500 N
Go to product

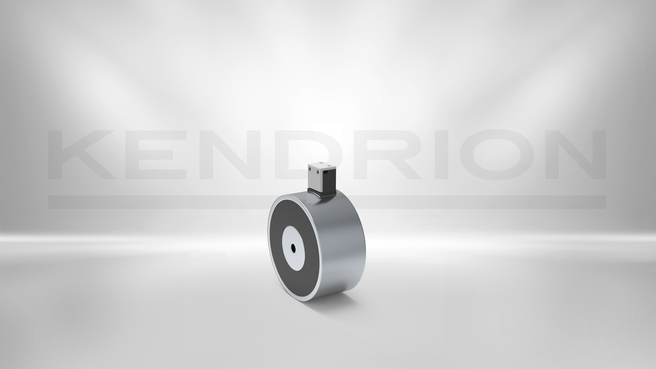

Electro Holding Magnet GTB080

GTB080.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 14.9 W
Holding force 1800 N
Go to product

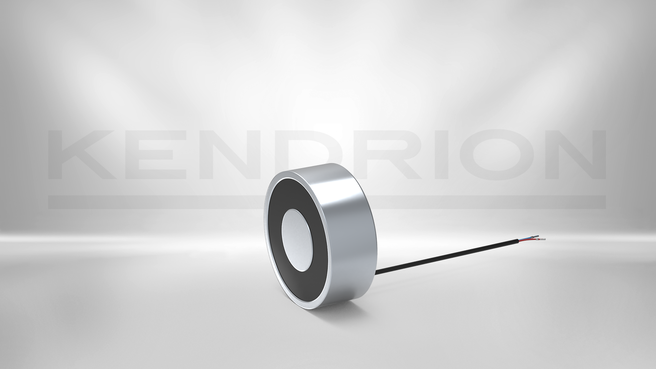

Electro Holding Magnet GTB015

GTB015.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 2 W
Holding force 36 N
Go to product

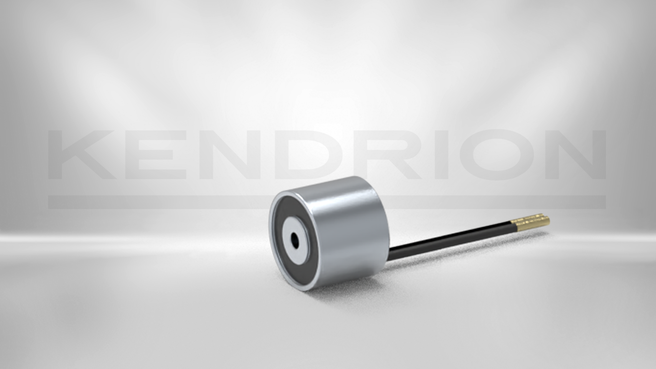

Electro Holding Magnet GTH015

GTH015.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 1.4 W
Holding force 45 N
Go to product

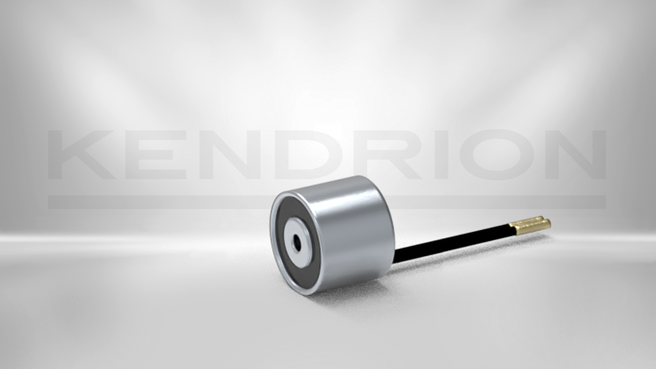

Electro Holding Magnet GTH020

GTH020.000030

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 2.2 W
Holding force 112 N
Go to product

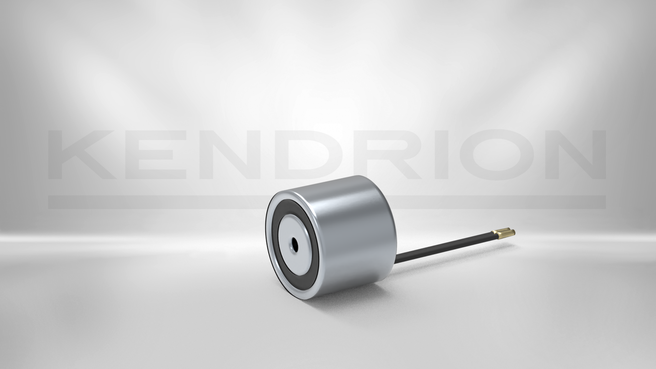

Electro Holding Magnet GTH025

GTH025.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 3.2 W
Holding force 240 N
Go to product

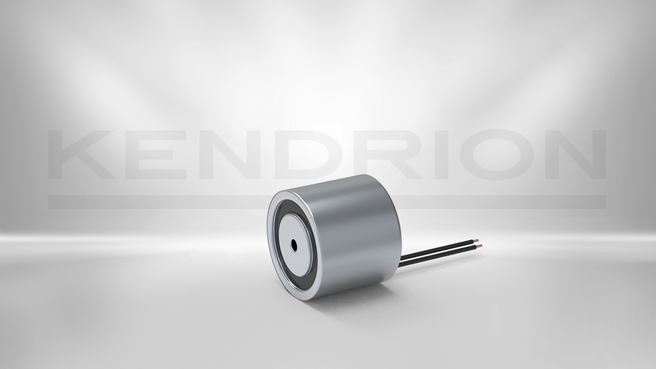

Electro Holding Magnet GTH030

GTH030.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 4.1 W
Holding force 355 N
Go to product

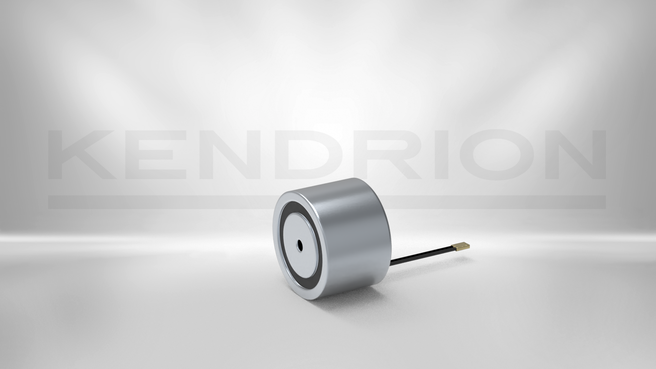

Electro Holding Magnet GTH040

GTH040.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 5.9 W
Holding force 740 N
Go to product

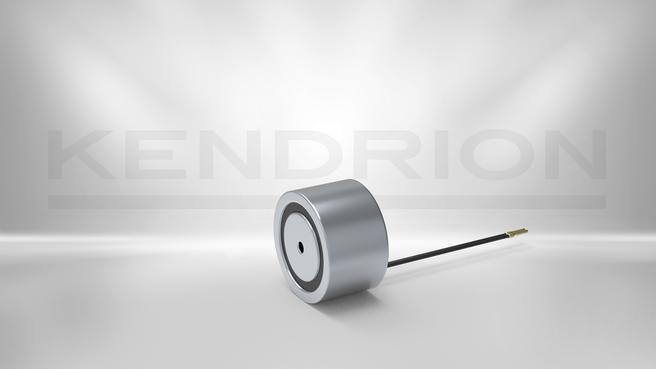

Electro Holding Magnet GTH050

GTH050.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 7.5 W
Holding force 1250 N
Go to product

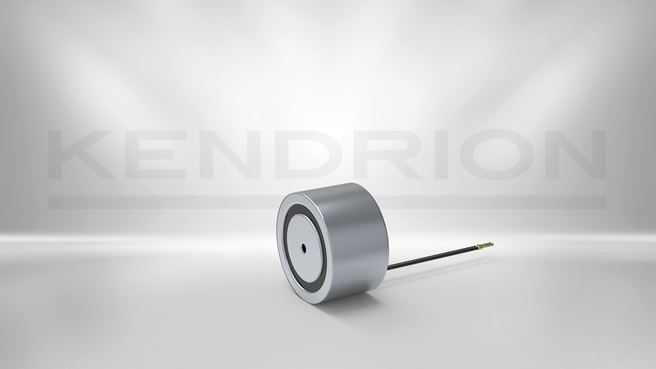

Electro Holding Magnet GTH060

GTH060.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 10.3 W
Holding force 1730 N
Go to product

Electro Holding Magnet GTH070

GTH070.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 12.1 W
Holding force 2310 N
Go to product

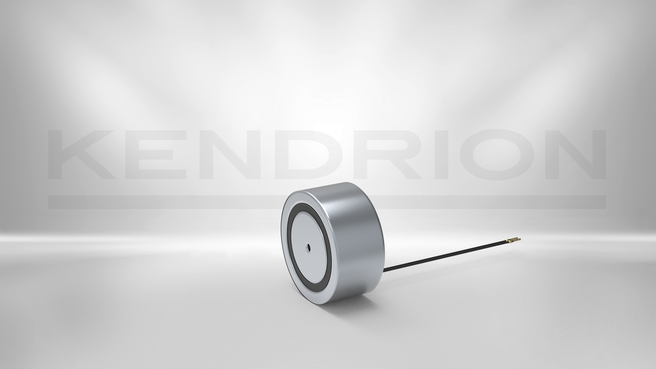

Electro Holding Magnet GTH080

GTH080.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 14.9 W
Holding force 3190 N
Go to product

Electro Holding Magnet GTH090

GTH090.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 17.8 W
Holding force 3880 N
Go to product

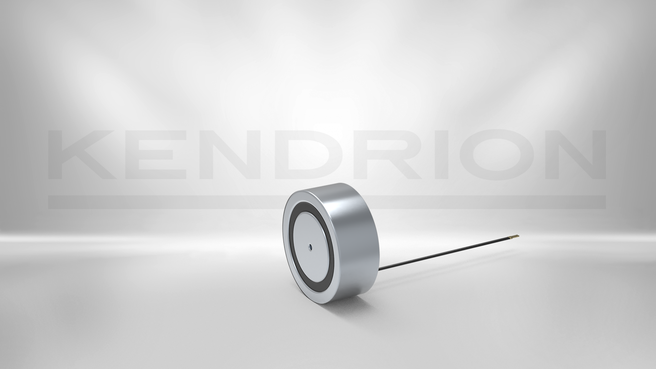

Electro Holding Magnet GTH100

GTH100.100001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 18.4 W
Holding force 4890 N
Go to product

Electro Holding Magnet D56

10060007

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 7.1 W
Holding force 750 N
Go to product

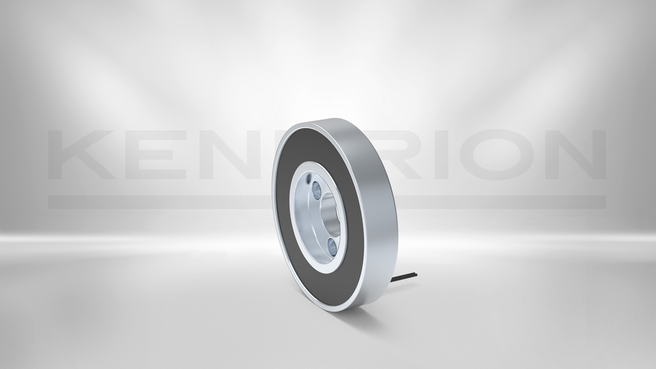

Electro Holding Magnet D110

10110008

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 14.7 W
Holding force 2050 N
Go to product

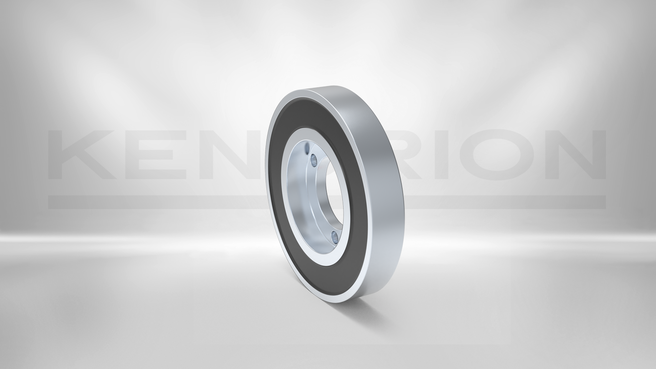

Electro Holding Magnet D170

10170004

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 31.4 W
Holding force 5000 N
Go to product

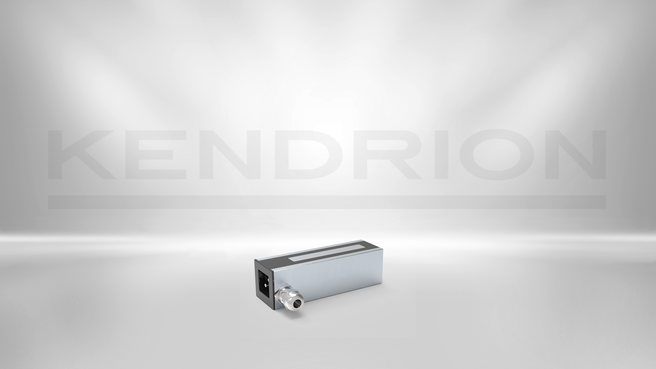

Electro Holding Magnet 32x101

10010001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 6.5 W
Holding force 880 N
Go to product

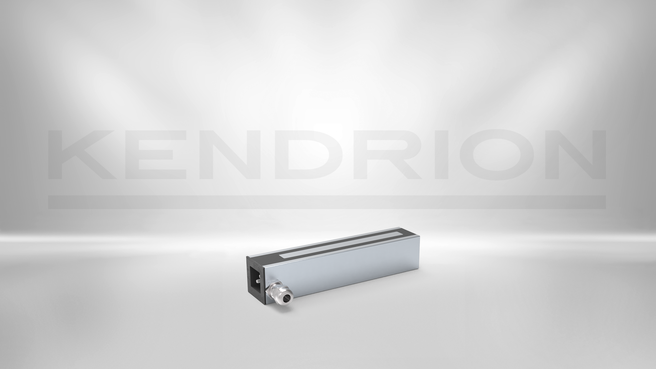

Electro Holding Magnet 32x151

10020001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 10,5 W
Holding force 1500 N
Go to product

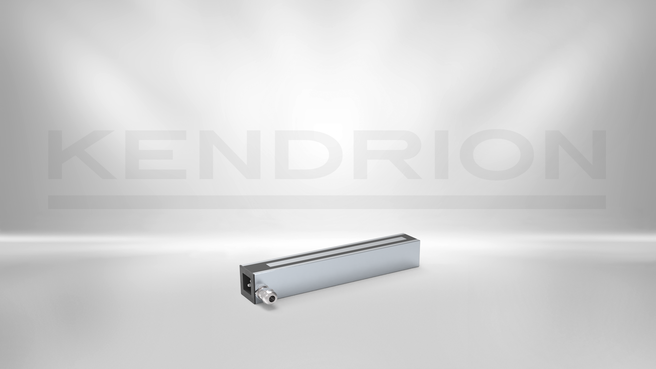

Electro Holding Magnet 32x201

10030001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 12.9 W
Holding force 2100 N
Go to product

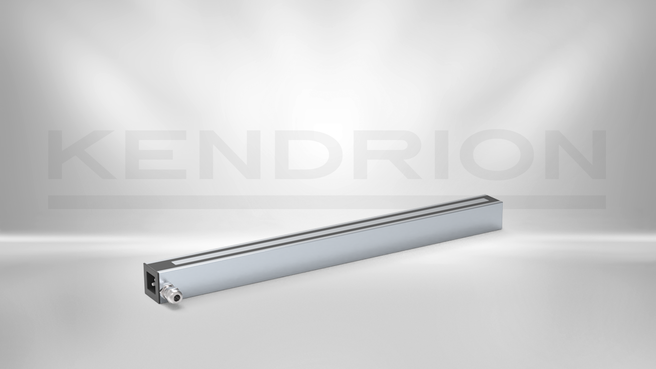

Electro Holding Magnet 32x401

10040001

Nominal voltage 24 V
Duty cycle 100 %
Power consumption 24 W
Holding force 4700 N
Go to product
Title
Type
Nominal voltage (V)
Duty cycle (%)
Power consumption (W)
Holding force (N)
Design
Holding permanentmagnetic?
Thermal class
Connection
Diameter (mm)
Length (mm)
Width (mm)
Details
Electro Holding Magnet GTB070 GTB070.000100 24 100 12 1500 round no B 130 terminal clamp 70 - -
Electro Holding Magnet GTB080 GTB080.100001 24 100 14.9 1800 round no B 130 terminal clamp 80 - -
Electro Holding Magnet GTB015 GTB015.100001 24 100 2 36 round no B 130 free leads 200mm 15 - -
Electro Holding Magnet GTH015 GTH015.100001 24 100 1.4 45 round no B 130 free leads 200mm 15 - -
Electro Holding Magnet GTH020 GTH020.000030 24 100 2.2 112 round no B 130 free leads 200mm 20 - -
Electro Holding Magnet GTH025 GTH025.100001 24 100 3.2 240 round no B 130 free leads 200mm 25 - -
Electro Holding Magnet GTH030 GTH030.100001 24 100 4.1 355 round no B 130 free leads 200mm 30 - -
Electro Holding Magnet GTH040 GTH040.100001 24 100 5.9 740 round no B 130 free leads 200mm 40 - -
Electro Holding Magnet GTH050 GTH050.100001 24 100 7.5 1250 round no B 130 free leads 200mm 50 - -
Electro Holding Magnet GTH060 GTH060.100001 24 100 10.3 1730 round no B 130 free leads 200mm 60 - -
Electro Holding Magnet GTH070 GTH070.100001 24 100 12.1 2310 round no B 130 free leads 200mm 70 - -
Electro Holding Magnet GTH080 GTH080.100001 24 100 14.9 3190 round no B 130 free leads 200mm 80 - -
Electro Holding Magnet GTH090 GTH090.100001 24 100 17.8 3880 round no B 130 free leads 200mm 90 - -
Electro Holding Magnet GTH100 GTH100.100001 24 100 18.4 4890 round no B 130 free leads 200mm 100 - -
Electro Holding Magnet D56 10060007 24 100 7.1 750 round no E 120 free leads 300mm 56 - -
Electro Holding Magnet D110 10110008 24 100 14.7 2050 round no E 120 free leads 300mm 110 - -
Electro Holding Magnet D170 10170004 24 100 31.4 5000 round no E 120 free leads 300mm 170 - -
Electro Holding Magnet 32x101 10010001 24 100 6.5 880 square no E 120 terminal clamp - 100 31
Electro Holding Magnet 32x151 10020001 24 100 10, 5 1500 square no E 120 terminal clamp - 151 31
Electro Holding Magnet 32x201 10030001 24 100 12.9 2100 square no E 120 terminal clamp - 201 31
Electro Holding Magnet 32x401 10040001 24 100 24 4700 square no E 120 terminal clamp - 401 31
