Holding magnets
Powerful electro holding magnets
Kendrion holding magnets are pot magnets used to hold and clamp ferromagnetic workpieces. They are characterized by high holding forces and individual designs. The electromagnets are used in industrial lifting technology, in elevator brakes, in door holding devices for fire protection and are used for machine safety. Permanent holding magnets ensure that workpieces are held securely even in the event of a power failure.
Need some help? Try our new Holding Magnet Product Guide.
Products
(62)
|
Title
|
Type
|
Nominal voltage (V)
|
Duty cycle (%)
|
Power consumption (W)
|
Holding force (N)
|
Design
|
Holding permanentmagnetic?
|
Thermal class
|
Connection
|
Diameter (mm)
|
Length (mm)
|
Width (mm)
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Electro Holding Magnet 32x501 | 10050001 | 24 | 100 | 30.6 | 6000 | square | no | E 120 | terminal clamp | - | 502 | 31 | |
|

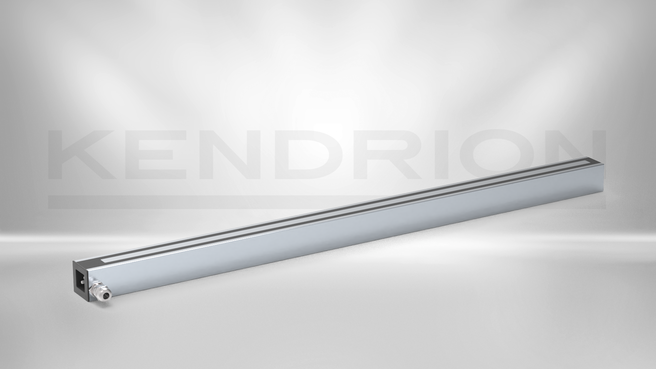

Electro Holding Magnet 32x601 | 10060001 | 24 | 100 | 45.7 | 7200 | square | no | E 120 | terminal clamp | - | 602 | 31 | |
|

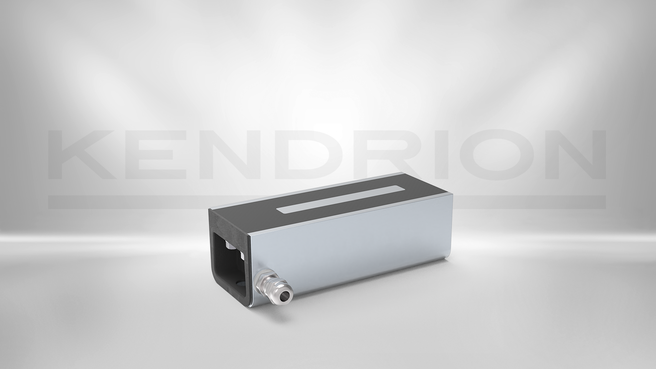

Electro Holding Magnet 60x151 | 10070001 | 24 | 100 | 22.3 | 2600 | square | no | E 120 | terminal clamp | - | 151 | 49 | |
|

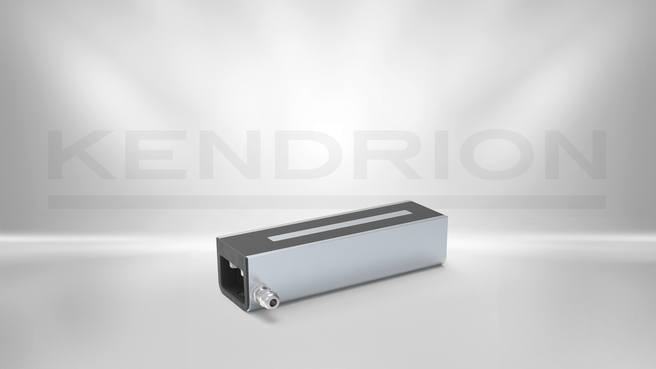

Electro Holding Magnet 60x201 | 10080001 | 24 | 100 | 30.2 | 3750 | square | no | E 120 | terminal clamp | - | 201 | 49 | |
|

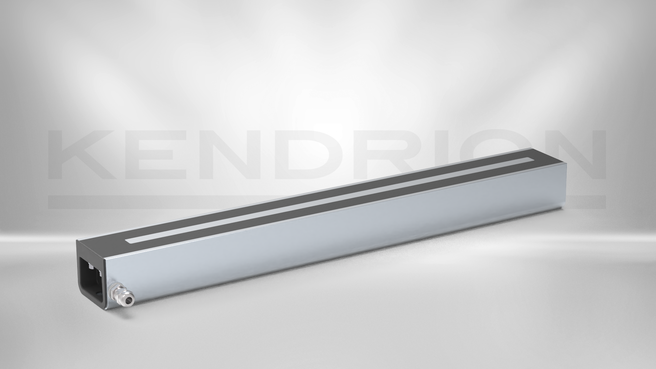

Electro Holding Magnet 60x501 | 10090001 | 24 | 100 | 64.9 | 10400 | square | no | E 120 | terminal clamp | - | 501 | 49 | |
|

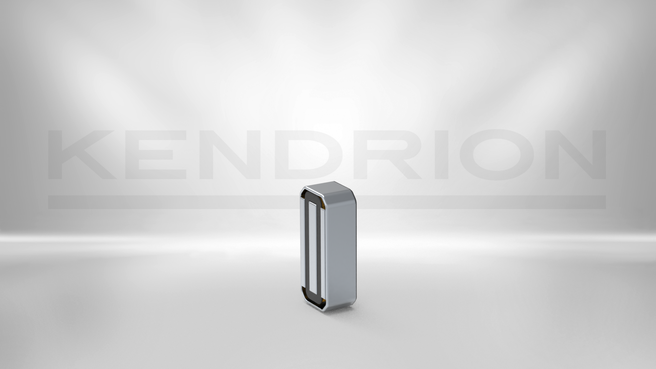

Electro Holding Magnet GXX187 | GXX188.000300 | 24 | 100 | 3.6 | 1000 | square | no | B 130 | cable 3000mm | - | 27 | 40 | |
|

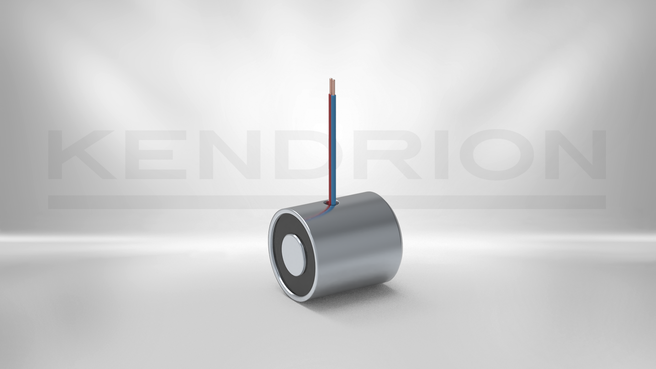

Permanent Electro Holding Magnet D20 | 01020001 | 24 | 25 | 3.6 | 40 | round | yes | E 120 | free leads 200mm | 20 | - | - | |
|

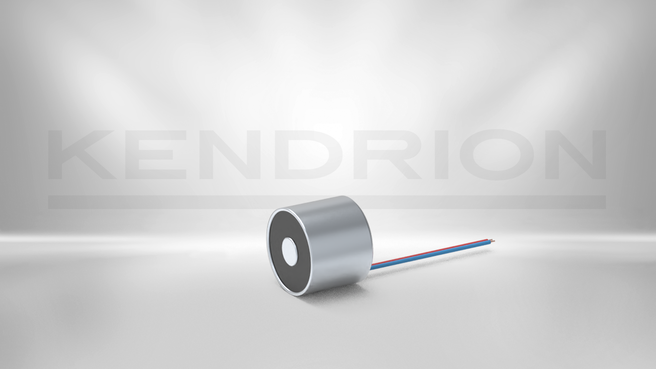

Permanent Electro Holding Magnet D35 | 01030004 | 24 | 25 | 4.6 | 160 | round | yes | E 120 | free leads 200mm | 35 | - | - | |
|

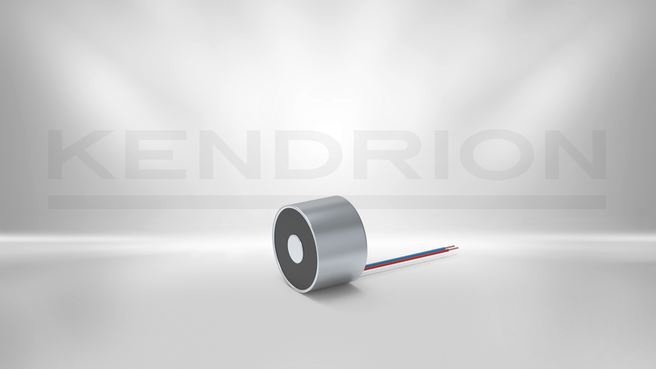

Permanent Electro Holding Magnet D55 | 01050002 | 24 | 25 | 8.9 | 420 | round | yes | E 120 | free leads 200mm | 55 | - | - | |
|

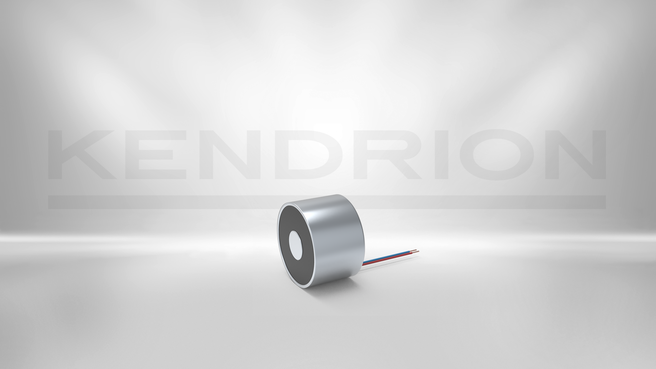

Permanent Electro Holding Magnet D70 | 01070003 | 24 | 25 | 13.3 | 720 | round | yes | E 120 | free leads 200mm | 70 | - | - | |
|

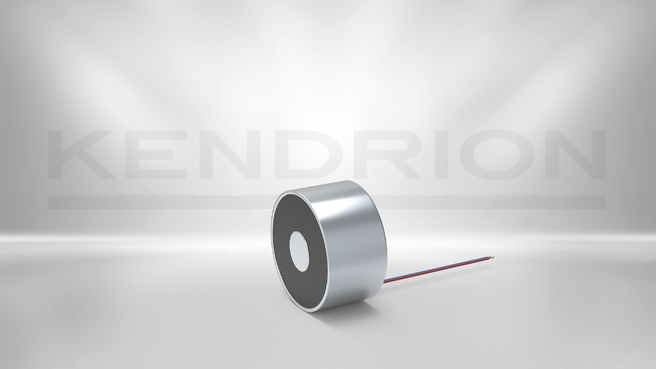

Permanent Electro Holding Magnet D90 | 01090003 | 24 | 25 | 21.7 | 1200 | round | yes | E 120 | free leads 200mm | 90 | - | - | |
|

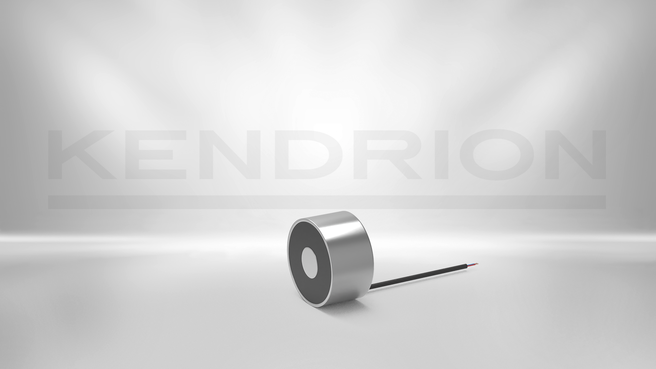

Permanent Electro Holding Magnet D105 | 01100001 | 24 | 25 | 28 | 1600 | round | yes | E 120 | free leads 300mm | 105 | - | - | |
|
Permanent Electro Holding Magnet D150 | 01150001 | 24 | 25 | 40.5 | 3500 | round | yes | E 120 | free leads 300mm | 150 | - | - | |
|

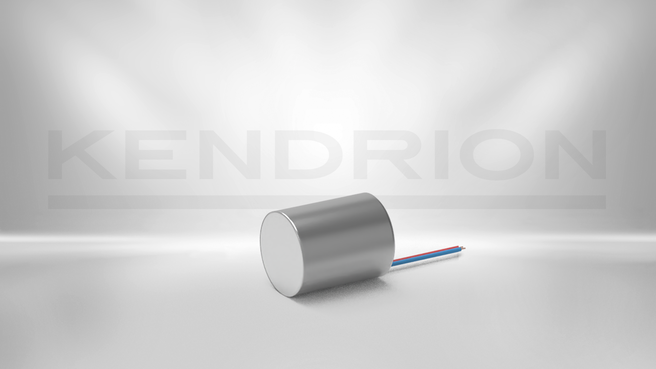

Permanent Electro Holding Magnet D32 | 01030003 | 24 | 100 | 6.2 | 260 | round | yes | E 120 | free leads 200mm | 32 | - | - | |
|

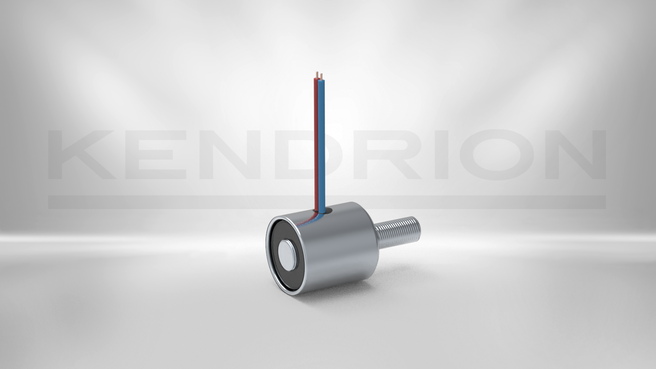

Permanent Electro Holding Magnet PEM12 | 1266205 | 24 | 100 | 1 | 8 | round | yes | B 130 | free leads 130mm | 12 | - | - | |
|

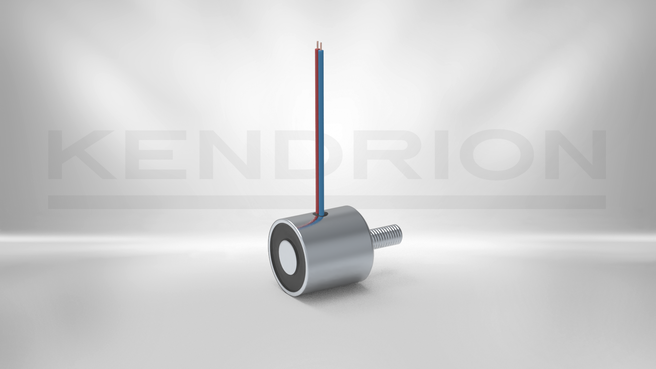

Permanent Electro Holding Magnet PEM15 | 1266215 | 24 | 100 | 1.5 | 30 | round | yes | B 130 | free leads 130mm | 15 | - | - | |
|
Permanent Electro Holding Magnet PEM20 | 1266240 | 24 | 100 | 2 | 60 | round | yes | B 130 | free leads 130mm | 20 | - | - | |
|

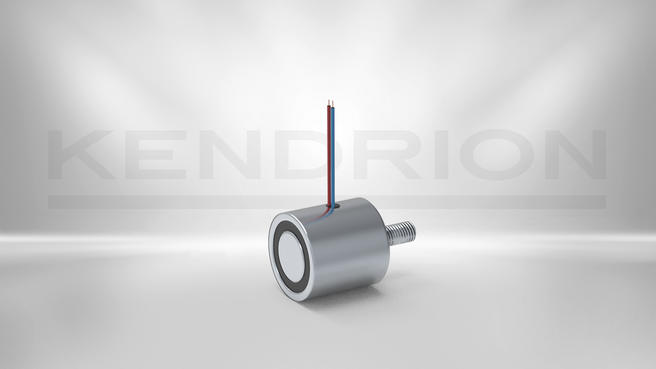

Permanent Electro Holding Magnet PEM25 | 1266251 | 24 | 15 | 9.6 | 140 | round | yes | B 130 | free leads 130mm | 25 | - | - | |
|

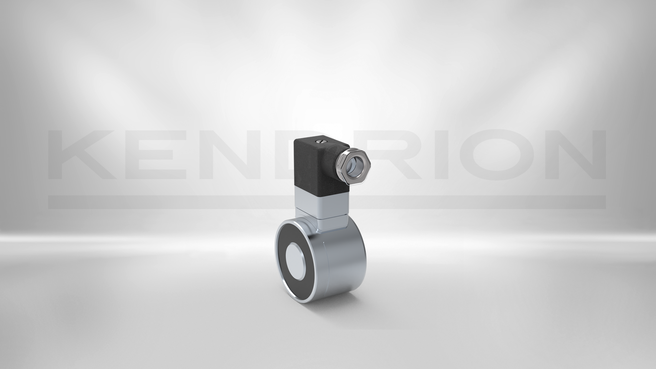

Permanent Electro Holding Magnet GTP047 | GTP048.500034 | 24 | 10 | 13 | 500 | round | yes | E 120 | Leitungsdose IP64 | 48 | - | - | |
|

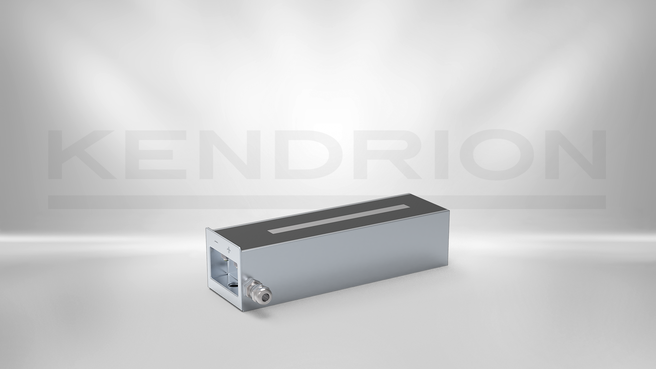

Permanent Electro Holding Magnet 60x201 | 01080001 | 24 | 25 | 40 | 1530 | square | yes | E 120 | terminal clamp | - | - | - |
