Holding magnets
Powerful electro holding magnets

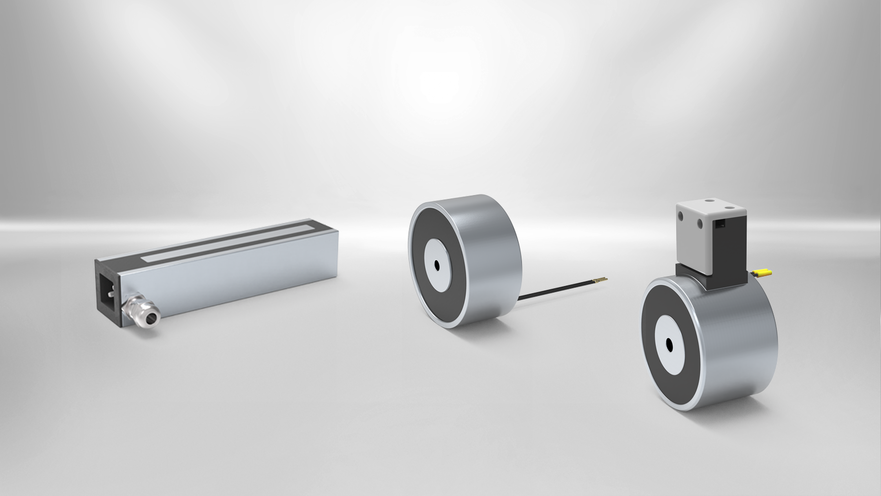

Kendrion holding magnets are pot magnets used to hold and clamp ferromagnetic workpieces. They are characterized by high holding forces and individual designs. The electromagnets are used in industrial lifting technology, in elevator brakes, in door holding devices for fire protection and are used for machine safety. Permanent holding magnets ensure that workpieces are held securely even in the event of a power failure.
Need some help? Try our new Holding Magnet Product Guide.
Products
(62)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Holding force (N)
ascending
descending
|
Design
ascending
descending
|
Holding permanentmagnetic?
ascending
descending
|
Thermal class
ascending
descending
|
Connection
ascending
descending
|
Diameter (mm)
ascending
descending
|
Length (mm)
ascending
descending
|
Width (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Permanent Electro Holding Magnet GTN025
|
GTN025.000001 | 24 | 40 | 9.3 | 120 | round | yes | B 130 | Free leads 200mm | 25 | - | - | to the product |
|
Permanent Electro Holding Magnet GTN035
|
GTN035.000001 | 24 | 40 | 10.3 | 300 | round | yes | B 130 | Free leads 200mm | 35 | - | - | to the product |
|
Permanent Electro Holding Magnet GTN050
|
GTN050.000001 | 24 | 40 | 21 | 700 | round | yes | B 130 | Free leads 200mm | 50 | - | - | to the product |
|
Electro Holding Magnet GTB018
|
GTB018.000001 | 24 | 100 | 1.4 | 45 | round | no | B 130 | free leads 200mm | 18 | - | - | to the product |
|
Electro Holding Magnet GTB025
|
GTB025.000001 | 24 | 100 | 3.1 | 140 | round | no | B 130 | free leads 200mm | 25 | - | - | to the product |
|
Electro Holding Magnet GTB032
|
GTB032.000001 | 24 | 100 | 3.5 | 230 | round | no | B 130 | free leads 200mm | 32 | - | - | to the product |
|
Electro Holding Magnet GTB040
|
GTB040.000001 | 24 | 100 | 5.1 | 475 | round | no | B 130 | free leads 200mm | 40 | - | - | to the product |
|
Electro Holding Magnet GTB050
|
GTB050.000001 | 24 | 100 | 6.2 | 750 | round | no | B 130 | free leads 200mm | 50 | - | - | to the product |
|
Electro Holding Magnet GTB063
|
GTB063.000001 | 24 | 100 | 7.9 | 1000 | round | no | B 130 | free leads 200mm | 63 | - | - | to the product |
|
Electro Holding Magnet GTB070
|
GTB070.000001 | 24 | 100 | 12 | 1500 | round | no | B 130 | free leads 200mm | 70 | - | - | to the product |
|
Electro Holding Magnet GTB080
|
GTB080.000001 | 24 | 100 | 14.9 | 1800 | round | no | B 130 | free leads 200mm | 80 | - | - | to the product |
|
Electro Holding Magnet GTB090
|
GTB090.000001 | 24 | 100 | 14 | 2400 | round | no | B 130 | free leads 200mm | 90 | - | - | to the product |
|
Electro Holding Magnet GTB100
|
GTB100.000001 | 24 | 100 | 20.6 | 3400 | round | no | B 130 | cable 300mm | 100 | - | - | to the product |
|
Electro Holding Magnet GTB150
|
GTB150.000001 | 24 | 100 | 37 | 9000 | round | no | B 130 | cable 300mm | 150 | - | - | to the product |
|
|
Electro Holding Magnet GTB180
|
GTB180.000001 | 24 | 100 | 49 | 15000 | round | no | B 130 | cable 300mm | 180 | - | - | to the product |
|
Electro Holding Magnet GTB250
|
GTB250.000002 | 24 | 100 | 90 | 30000 | round | no | B 130 | cable 300mm | 250 | - | - | to the product |
|
Electro Holding Magnet GTB025
|
GTB025.100001 | 24 | 100 | 3.1 | 140 | round | no | B 130 | terminal clamp | 25 | - | - | to the product |
|
Electro Holding Magnet GTB032
|
GTB032.100001 | 24 | 100 | 3.5 | 230 | round | no | B 130 | terminal clamp | 32 | - | - | to the product |
|
Electro Holding Magnet GTB040
|
GTB040.100001 | 24 | 100 | 5.1 | 475 | round | no | B 130 | terminal clamp | 40 | - | - | to the product |
|
Electro Holding Magnet GTB050
|
GTB050.100001 | 24 | 100 | 6.2 | 750 | round | no | B 130 | terminal clamp | 50 | - | - | to the product |
|
Electro Holding Magnet GTB063
|
GTB063.100001 | 24 | 100 | 7.9 | 1000 | round | no | B 130 | terminal clamp | 63 | - | - | to the product |
