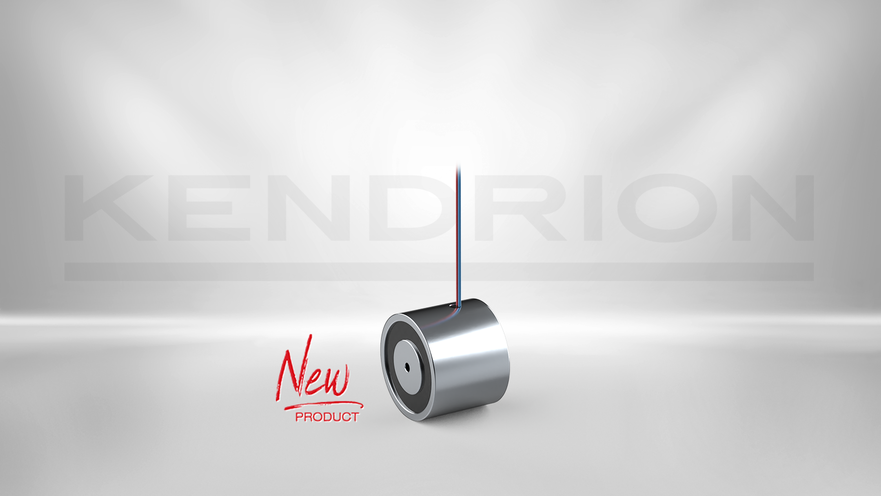

Permanent Electro Holding Magnet GTN025
GTN025.000001
The new GTN025 permanent electromagnet achieves a holding force of 120 N in a de-energized state and is designed for long-term holding of magnetic workpieces.
When the DC coil is switched on, the permanent magnetic field at the holding surface is neutralized and the workpiece to be held can be removed. The electromagnet holds loads even in the event of a power failure and only needs to be supplied with power for a short time to release the workpiece.
The permanent electromagnets of the GTN series have a protection class of IP65.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 40 % |
| Power consumption | 9.3 W |
| Holding force | 120 N |
| Design | round |
| Diameter | 25 mm |
| Holding permanentmagnetic? | yes |
| Thermal class | B 130 |
| Connection | Free leads 200mm |
