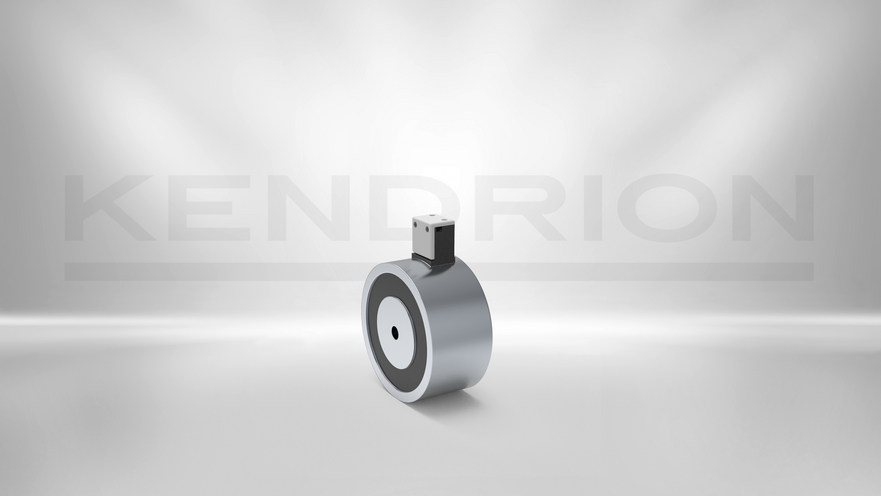

Electro Holding Magnet GTB070

GTB070.000100

Holding magnet for holding or clamping ferromagnetic workpieces. The DC-excited coil achieves a holding force of up to 30,000 N when energized. When the supply voltage is switched off, the workpiece to be held falls off. The holding solenoid is maintenance-free and are characterized by a low operating current at high holding forces.

The holding solenoid is available in different sizes in round, flat or square design.

Technical details

Description Value
Nominal voltage 24 V
Duty cycle 100 %
Power consumption 12 W
Holding force 1500 N
Design round
Diameter 70x35 mm
Holding permanentmagnetic? no
Thermal class B 130
Connection terminal clamp
