Kendrion is your expert for safety and holding brakes

AGVs and AMRs have become a common sight in warehousing and production environments, where they perform repetitive tasks and transport goods quickly, safely, and efficiently.

To protect persons or materials in an emergency, our electromagnetic brakes safely stop the AGV or AMR: from small load units to forklifts to large transport systems and beyond, we offer braking solutions for almost any electrically driven vehicle.

Especially for industrial trucks, KENDRION INTORQ has already established itself as the market leader for spring-applied brakes in Europe. We use this experience, combined with modern, agile ways of working and a broad, tailored product portfolio to meet all the requirements of this young industry.

Offering the perfect combination of a market-leading brake portfolio, an agile way of working, and unmatched customization flexibility we help you find the right solution for your application.

Kendrion Servo Slim Line spring-applied brake is used in automated guided vehicles and  robotics
safety brakesolutions

Our Heros for AGV solutions

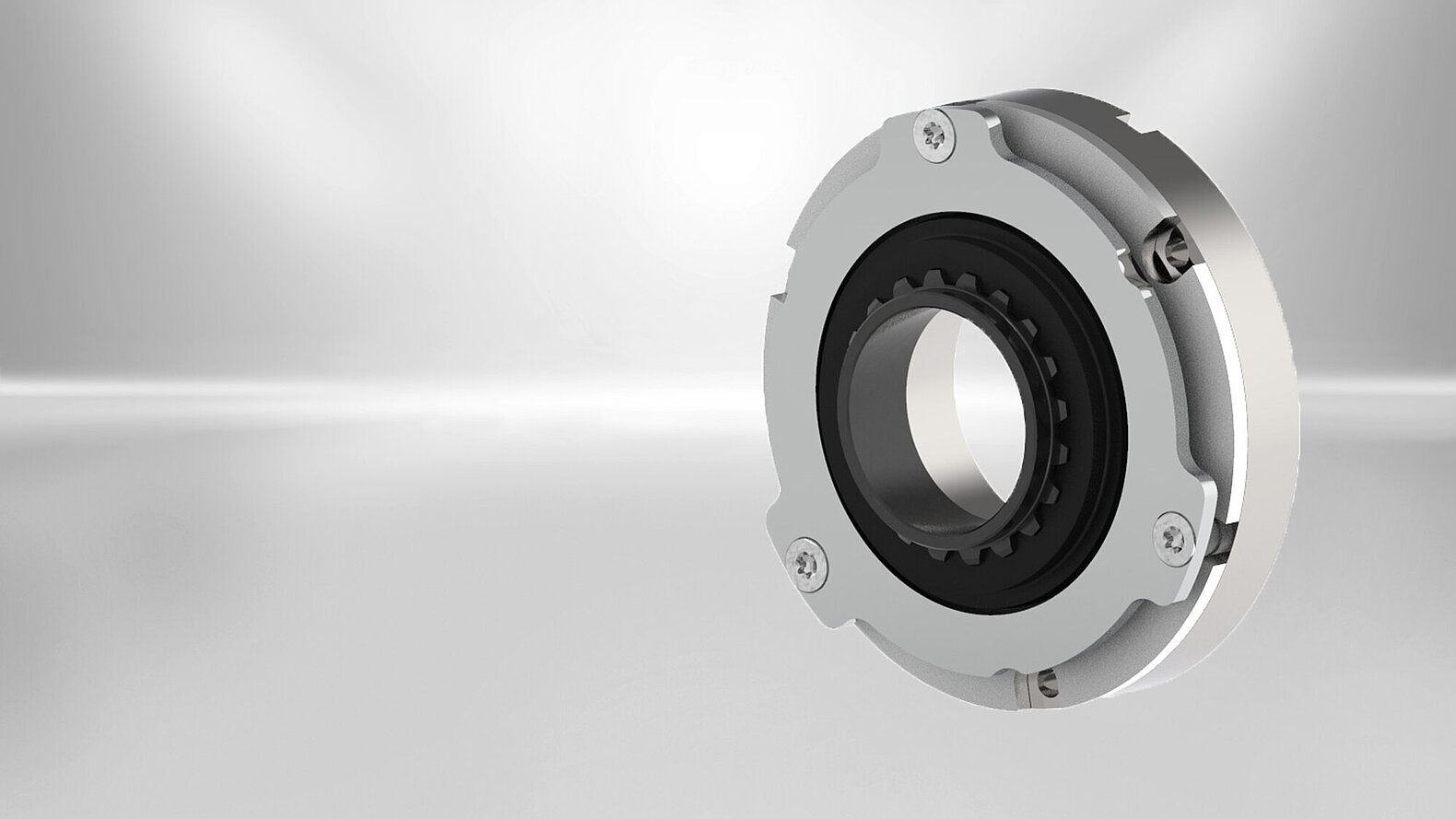

Spring-applied brakes Servo Slim Line

Electromagnetically actuated brakes are designed to bring a moving load to a standstill and hold it or to fix the position of an inactive load. The closing or opening of the brake usually must happen in a split of a second to be able to brake loads quickly and safely in high-frequency applications.

The Servo Slim Line spring-applied brake was designed primarily for applications with hollow shafts and small installation spaces. The "slim" single-disc brakes are flatter and lighter than the market standard in relation to their power density. Their large inner diameter makes them perfect for hollow shaft drives where the cables are routed inside through the joint or for applications where only minimal installation space is available.



MORE ABOUT THE SERVO SLIM LINE



Kendrion INTORQ BFK457 compact spring-applied brake for automated guided vehicles and elevator technology
Holding brakesolutions

Spring-applied brakes INTORQ BFK457

These electromagnetically released spring-applied brakes can be used wherever rapid deceleration of moving masses or controlled holding of masses is required. Since the braking force comes from pressure springs, the braking torque, which is generated by friction, is available when no current is applied – even in the event of a power failure.

To safely stop and hold the loads, e.g. at a ramp, the INTORQ BFK457 is installed in the drive unit to ensure work safety during operation. Quick mounting with integrated mounting screws and fixed air gap make this spring-applied brake even more attractive.



MORE ABOUT THE INTORQ BFK457



Benefits at a glance

  • Guaranteed torque and service life

  • Variable shaft-hub connection

  • Front & flange mounting possible

  • Flexible cable routing

  • Fast opening and closing times

  • Low inertia and weight

Downloads

Brochures and Flyers
Brochure | Servo Line | Spring-applied brake
pdf - 2 MB
Brochures and Flyers
Brochure | Servo Slim Line | Slim brake
pdf - 1 MB
Brochures and Flyers
Brochure | High Torque Line | Permanent magnet brake
pdf - 2 MB
Brochures and Flyers
Brochure | INTORQ BFK457 | Spring-applied brake
pdf - 2 MB
Brochures and Flyers
Brochure | INTORQ BFK552 | Spring-applied brake
pdf - 725 KB

Our AGV solutions in action

Safety brakes for stopping in case of emergency
To protect persons or materials in an emergency, our electromagnetic brakes safely stop the AGV or AMR: from small load units to forklifts to large transport systems and beyond, we offer braking solutions for almost any electrically driven vehicle.
Spring-applied brake for stopping and holding in case of power failure
The compact and easy to install motor brake ensures safety in case of power-loss and holds the heaviest loads in position.

Do you have any questions? Then contact our brake experts for AGV!

Why is Kendrion​ the perfect partner?​

The customer is the central focus of all our activities. The complete Kendrion team is committed to meet the requirements and wishes of our global customers. We place great value on partnership and open communication.

Our product portfolio

We are a full-line provider​ and specialist for permanent​ magnet and spring-applied​ brakes for technologically​ demanding applications.

Design to application

Customized to your​ application, the design​ of our brakes is the best​ possible combination of​ technology and economy.

Market know-how

Our products are used in​ fast growing markets of​ the future such as robotics,​ AGVs, and medical technology.​

Quality & Safety

We offer highest safety​ standards through our​ unique validation and​ quality processes.
