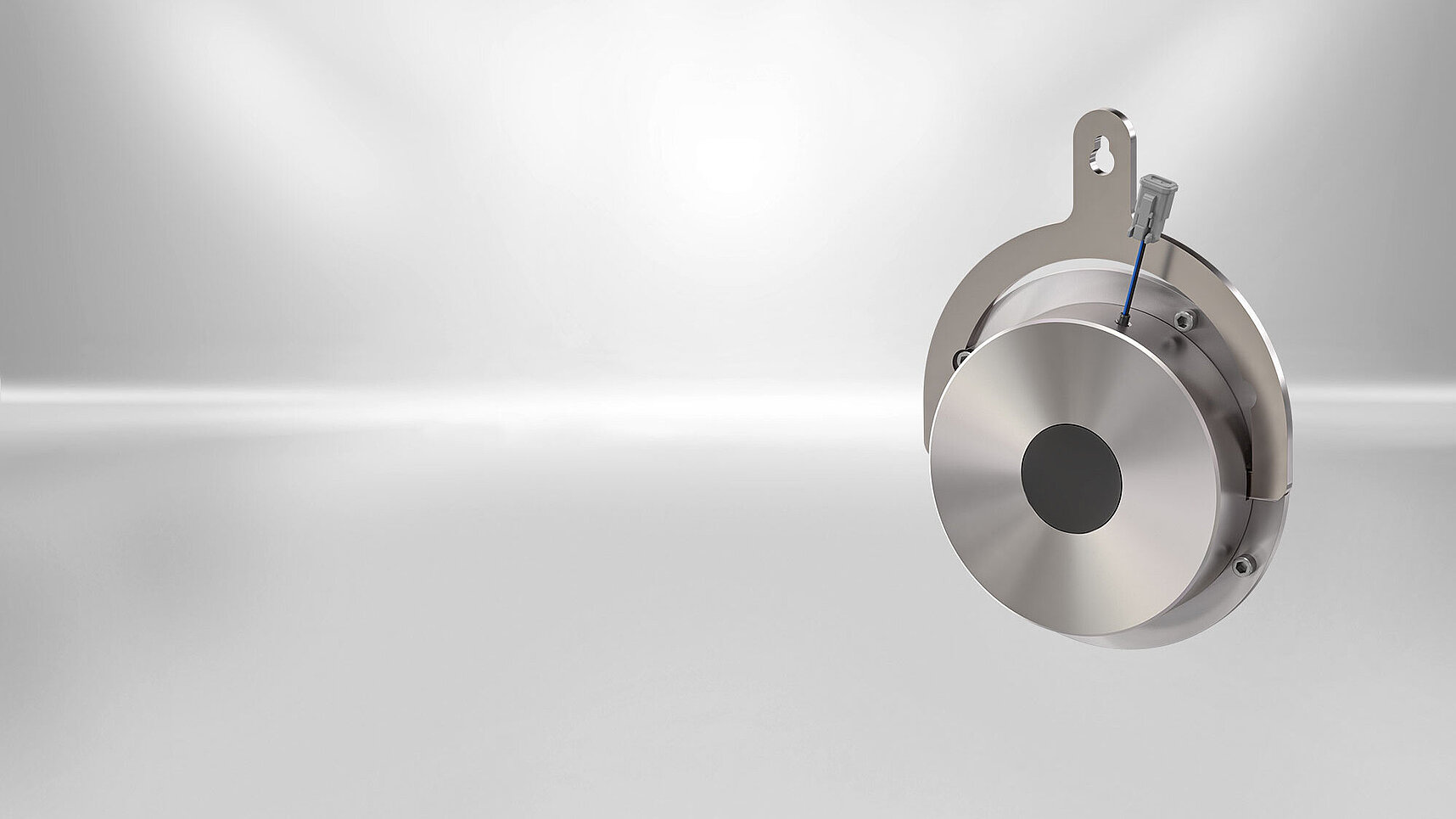

Our INTORQ BFK552

Wherever there is only a very limited installation space available and a powerful brake is still required, we are sure to be “new fans”.

Developed from the requirements of the industrial truck industry, the advantages of the BFK552 will certainly also make you curious in intralogistics and in the area of all general motor applications!



Features at a glance

  • Flat, compact design = less installation space, lower weight
  • Stable braking torque over the entire service life = guaranteed safety
  • Water and dust protection according to IP66 (without hand release) = withstands rough conditions
  • Extended maintenance interval due to lower wear = reduced maintenance costs
  • Delivered as a ready-to-install unit => prevents assembly errors
  • Global availability = reduced transport routes and transport times

Simple installation

  • Delivered as a ready-to-install unit prevents assembly errors during installation
  • Reduces assembly times
  • Compact design creates low weight

Technical Details

(Sizes 08 and 18 on request)

Size 08 12 18
Height 40mm 43.7mm 55mm
Power 50/25 W 80/45 W 150/60 W
Brake torque 15Nm 60Nm 180Nm
Protection class IP66 IP66 IP66
Brochures and Flyers
Brochure | INTORQ BFK552 | Spring-applied brake
pdf - 725 KB
Operating instructions
Operating instruction | INTORQ BFK552
pdf - 1 MB
CAD Files
3D-Models | INTORQ BFK552
zip - 233 KB
VideoINTORQ BFK552
Video - Spring-applied brake INTORQ BFK552
The new holding and emergency stopping function brake INTORQ BFK552 is an electromagnetic brake. In this short presentation, the characteristics will be highlighted and how the brake can be typically integrated will be presented. Segments will be shown that can apply this product.
