Rotary Solenoids

Welcome to the KENDRION Rotary Solenoid ProductFinder.

Here you can quickly and easily find what you are looking for. Choose from our wide portfolio of monostable and bistable rotary solenoids. Use our filter and narrow the search to fit your application.

  •  Monostable or bistable design

  •  Angle of rotation

  •  Initial or final torque

  •  Type of reset (spring or electrical)



Need some help? Try our new Rotary Solenoid Product Guide.

Start Product Guide

Products (25)

Rotary Solenoid BSM043-204 (right-rotating)

BSM043.000204 - with hall sensor, M8 plug

Design bistable
Rotation angle 90°
Return mechanism Electrical
Duty cycle 50 %
Go to product

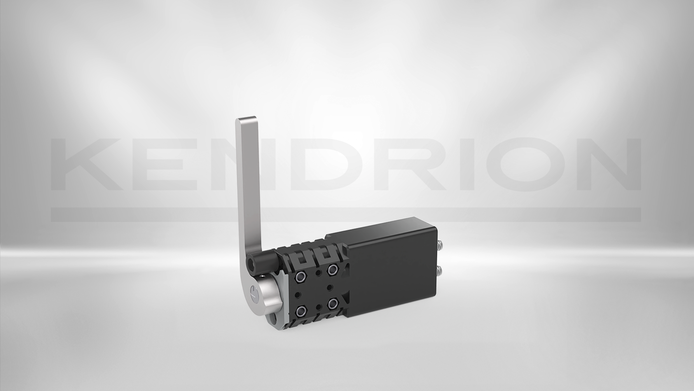

Rotary Solenoid BSM043-203 (left-rotating)

BSM043.000203 - with hall sensor, M8 plug

Design bistable
Rotation angle 90°
Return mechanism Electrical
Duty cycle 50 %
Go to product

Rotary Solenoid BSM043-104 (right-rotating)

BSM043.000104 - free leads

Design bistable
Rotation angle 90°
Return mechanism Electrical
Duty cycle 50 %
Go to product

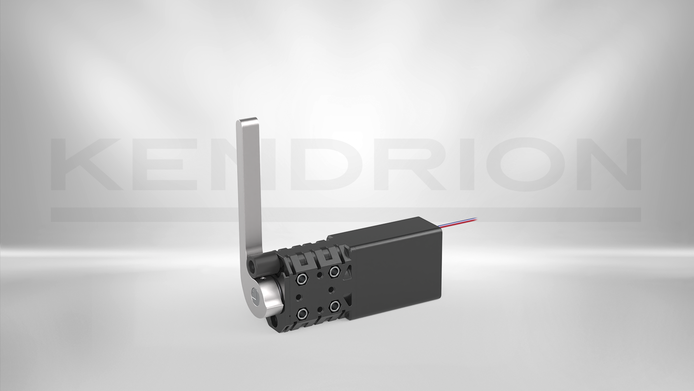

Rotary Solenoid BSM043-103 (left-rotating)

BSM043.000103 - free leads

Design bistable
Rotation angle 90°
Return mechanism Electrical
Duty cycle 50 %
Go to product

Rotary Solenoid BSM043-04 (right-rotating)

BSM043.000004 - with hall sensor, free leads

Design bistable
Rotation angle 90°
Return mechanism Electrical
Duty cycle 50 %
Go to product

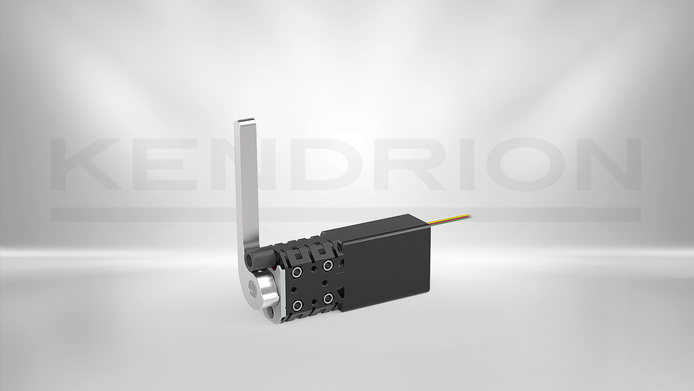

Rotary Solenoid BSM043-03 (left-rotating)

BSM043.000003 - with hall sensor, free leads

Design bistable
Rotation angle 90°
Return mechanism Electrical
Duty cycle 50 %
Go to product

Rotary Solenoid D 24

D 24-BOR-F-DS9420-24 VDC 100 ED

Design monostable
Rotation angle 45°
Inital torque 0.18 Ncm
End torque 0.44 Ncm
Go to product

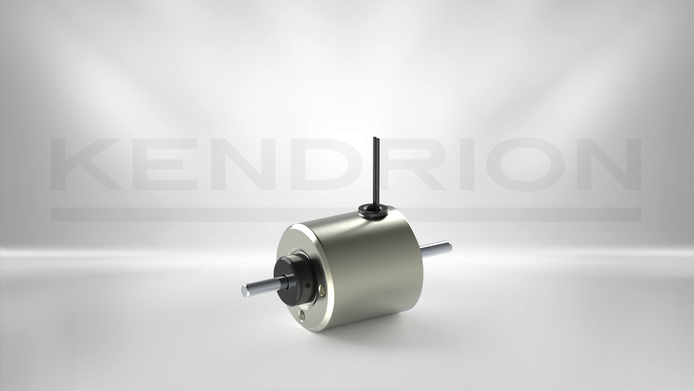

Rotary Solenoid D 29

D 29-BOR-F-DS9420-24V DC 100 ED

Design monostable
Rotation angle 95°
Inital torque 0.06 Ncm
End torque 0.35 Ncm
Go to product

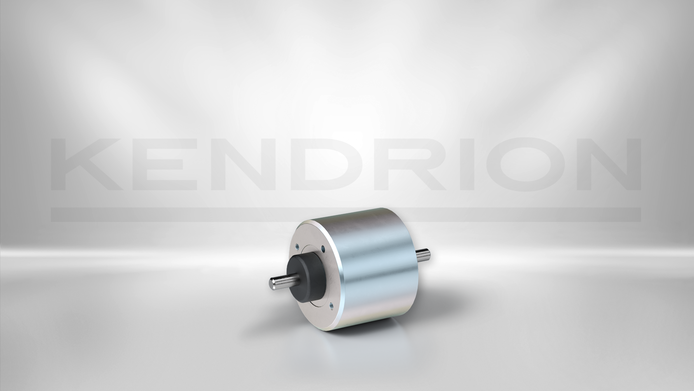

Rotary Solenoid D 39

D 39-BOR-F-DS9420-24V DC 100 ED

Design monostable
Rotation angle 95°
Inital torque 0.18 Ncm
End torque 1.2 Ncm
Go to product

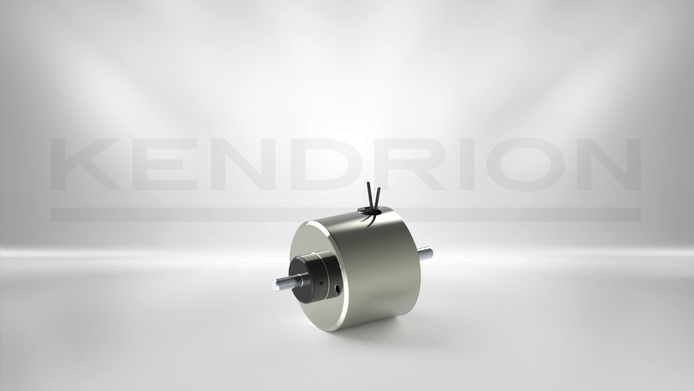

Rotary Solenoid D 34

D 34-BOR-F-DS9420-24V DC 100 ED

Design monostable
Rotation angle 45°
Inital torque 0.65 Ncm
End torque 1.6 Ncm
Go to product

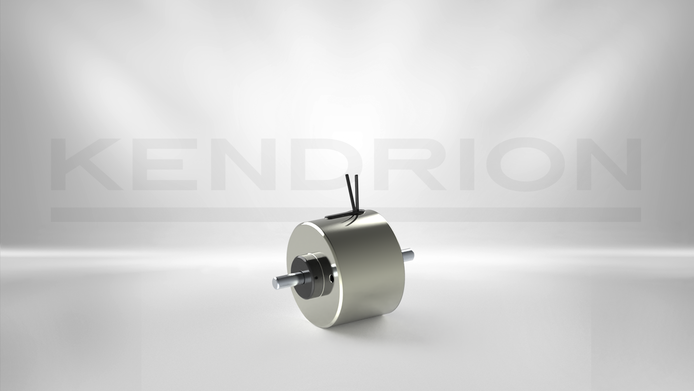

Rotary Solenoid D 54

D 54-BOR-F-24V DC 100 ED

Design monostable
Rotation angle 45°
Inital torque 3.6 Ncm
End torque 9.3 Ncm
Go to product

Rotary Solenoid D 59

D 59-BOR-F-DS9420-24V DC 100 ED

Design monostable
Rotation angle 95°
Inital torque 0.8 Ncm
End torque 7.2 Ncm
Go to product

Rotary Solenoid D 64

D 64-BOR-F-DS9420-24V DC 100 ED

Design monostable
Rotation angle 45°
Inital torque 6 Ncm
End torque 20 Ncm
Go to product

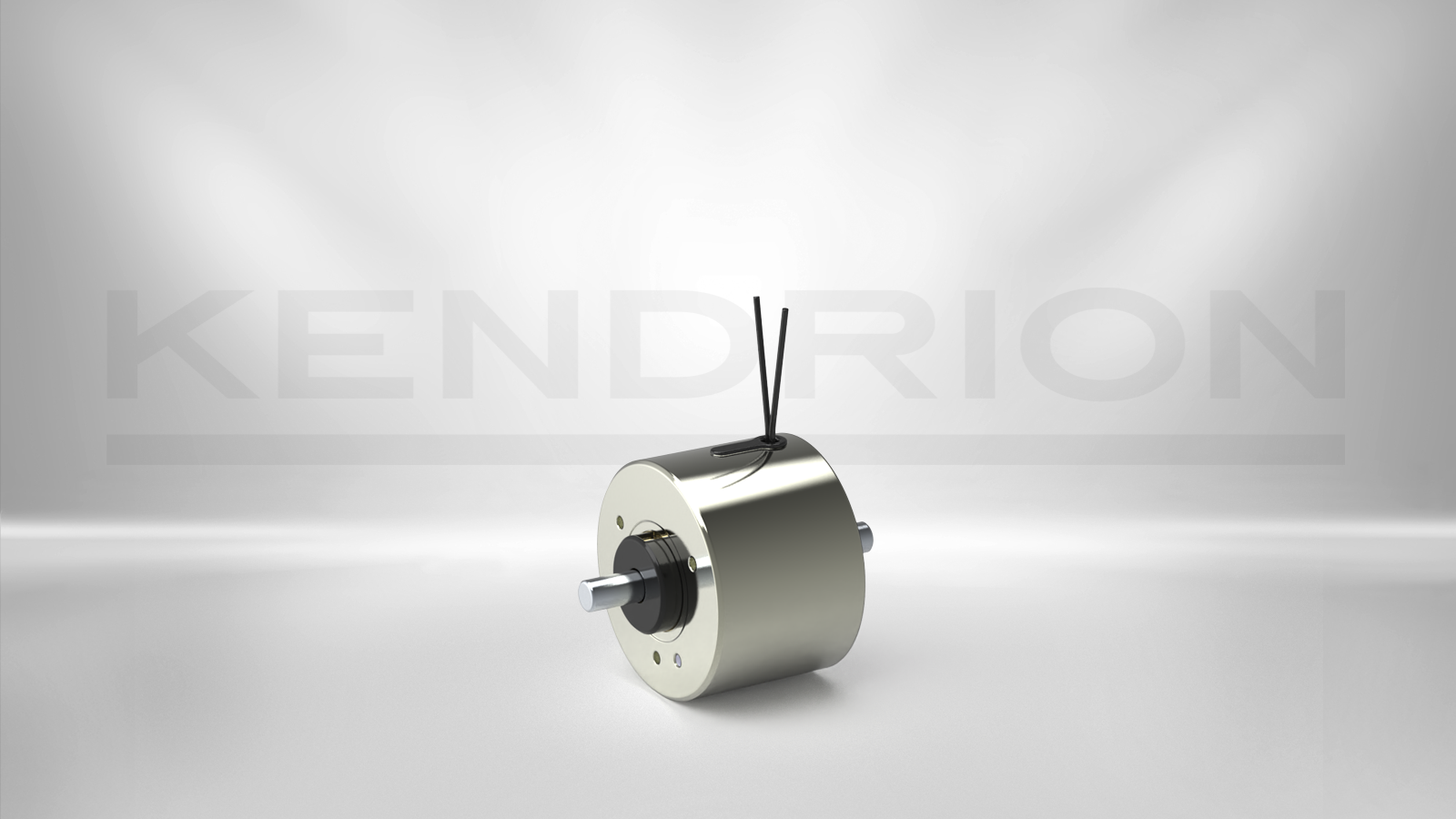

Rotary Solenoid D 69

D 69-BOR-F-DS9420-24V DC 100 ED

Design monostable
Rotation angle 95°
Inital torque 1.3 Ncm
End torque 15 Ncm
Go to product

Rotary Solenoid D 74

D 74-BOR-F-24V DC 100 ED

Design monostable
Rotation angle 45°
Inital torque 23 Ncm
End torque 40 Ncm
Go to product

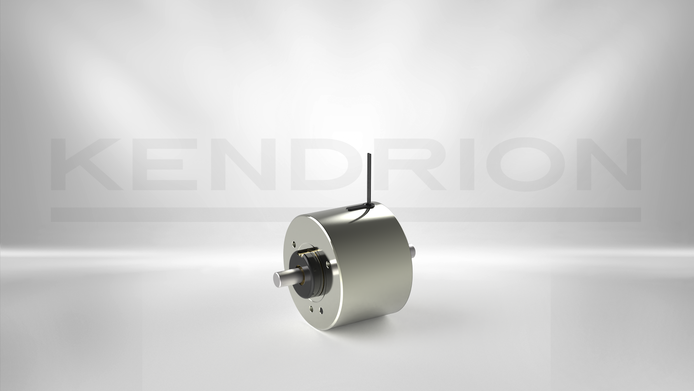

Rotary Solenoid D 79

D 79-BOR-F-DS9420-24V DC 100 ED

Design monostable
Rotation angle 95°
Inital torque 6.2 Ncm
End torque 26 Ncm
Go to product

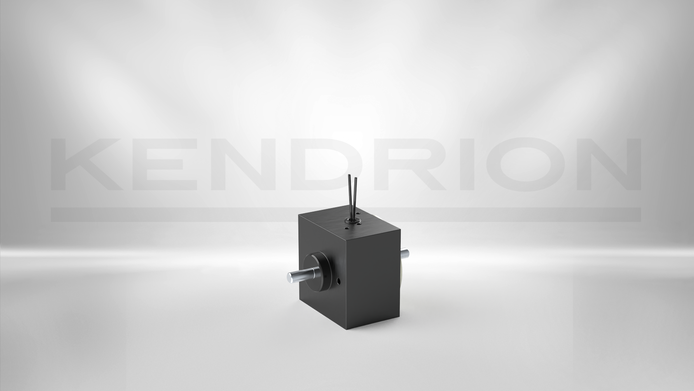

Rotary Solenoid E 59

E 59-BOR-F-DS9420-24VDC 100 ED

Design monostable
Rotation angle 95°
Inital torque 1.8 Ncm
End torque 12.7 Ncm
Go to product

Compact Rotary Solenoid CDR

CDR030.000090 (with Hall sensor)

Design bistable
Rotation angle 90°
Inital torque 1.2 Ncm
End torque 3.5 Ncm
Go to product

Compact Rotary Solenoid CDR

CDR030.000001

Design bistable
Rotation angle 90°
Inital torque 1.2 Ncm
End torque 3.5 Ncm
Go to product

Compact Rotary Solenoid CDR

CDR030.000060 (with Hall sensor)

Design bistable
Rotation angle 60°
Inital torque 1.5 Ncm
End torque 3.0 Ncm
Go to product

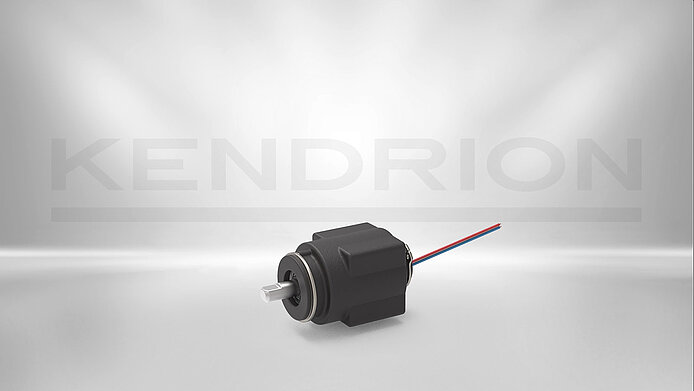

Compact Rotary Solenoid CDR

CDR030.000002 (with damper)

Design bistable
Rotation angle 90°
Inital torque 1.2 Ncm
End torque 3.5 Ncm
Go to product
Title
Type
Design
Rotation angle
Inital torque (Ncm)
End torque (Ncm)
Return mechanism
Housing type
Nominal voltage (V)
Duty cycle (%)
Power consumption (W)
Thermal class
Connection
Dimensions
Solenoid weight (g)
Details
Rotary Solenoid BSM043-204 (right-rotating) BSM043.000204 - with hall sensor, M8 plug bistable 90° - - Electrical Rectangular, plastic housing 24 50 17 B 130° C M8 plug 43 x 26 mm / Length 111 mm -
Rotary Solenoid BSM043-203 (left-rotating) BSM043.000203 - with hall sensor, M8 plug bistable 90° - - Electrical Rectangular, plastic housing 24 50 17 B 130° C M8 plug 43 x 26 mm / Length 111 mm -
Rotary Solenoid BSM043-104 (right-rotating) BSM043.000104 - free leads bistable 90° - - Electrical Rectangular, plastic housing 24 50 17 B 130° C Leads 10 cm 43 x 26 mm / Length 111 mm -
Rotary Solenoid BSM043-103 (left-rotating) BSM043.000103 - free leads bistable 90° - - Electrical Rectangular, plastic housing 24 50 17 B 130° C Leads 10 cm 43 x 26 mm / Length 111 mm -
Rotary Solenoid BSM043-04 (right-rotating) BSM043.000004 - with hall sensor, free leads bistable 90° - - Electrical Rectangular, plastic housing 24 50 17 B 130° C Leads 10 cm 43 x 26 mm / Length 111 mm -
Rotary Solenoid BSM043-03 (left-rotating) BSM043.000003 - with hall sensor, free leads bistable 90° - - Electrical Rectangular, plastic housing 24 50 17 B 130° C Leads 10 cm 43 x 26 mm / Length 111 mm -
Rotary Solenoid D 24 D 24-BOR-F-DS9420-24 VDC 100 ED monostable 45° 0.18 0.44 Spring return round 24 100 3.8 B 130 °C Leads 20 cm Diameter 25 / Length 25 mm 75
Rotary Solenoid D 29 D 29-BOR-F-DS9420-24V DC 100 ED monostable 95° 0.06 0.35 Spring return round 24 100 3.8 B 130 °C Leads 20 cm Diameter 25 / Length 25 mm 75
Rotary Solenoid D 39 D 39-BOR-F-DS9420-24V DC 100 ED monostable 95° 0.18 1.2 Spring return round 24 100 6 B 130 °C Leads 20 cm Diameter 35 / Length 27, 5 mm 150
Rotary Solenoid D 34 D 34-BOR-F-DS9420-24V DC 100 ED monostable 45° 0.65 1.6 Spring return round 24 100 6 B 130 °C Leads 20 cm Diameter 35 / Length 27, 5 mm 150
Rotary Solenoid D 54 D 54-BOR-F-24V DC 100 ED monostable 45° 3.6 9.3 Spring return round 24 100 10 B 130 °C Leads 20 cm Diameter 50 / Length 35 mm 380
Rotary Solenoid D 59 D 59-BOR-F-DS9420-24V DC 100 ED monostable 95° 0.8 7.2 Spring return round 24 100 10 B 130 °C Leads 20 cm Diameter 50 / Length 35 mm 380
Rotary Solenoid D 64 D 64-BOR-F-DS9420-24V DC 100 ED monostable 45° 6 20 Spring return round 24 100 13.4 B 130 °C Leads 20 cm Diameter 60 / Length 41, 5 mm 600
Rotary Solenoid D 69 D 69-BOR-F-DS9420-24V DC 100 ED monostable 95° 1.3 15 Spring return round 24 100 13.4 B 130 °C Leads 20 cm Diameter 60 / Length 41, 5 mm 600
Rotary Solenoid D 74 D 74-BOR-F-24V DC 100 ED monostable 45° 23 40 Spring return round 24 100 19.7 B 130 °C Leads 20 cm Diameter 75 / Length 53 mm 1400
Rotary Solenoid D 79 D 79-BOR-F-DS9420-24V DC 100 ED monostable 95° 6.2 26 Spring return round 24 100 19.7 B 130 °C Leads 20 cm Diameter 75 / Length 53 mm 1400
Rotary Solenoid E 59 E 59-BOR-F-DS9420-24VDC 100 ED monostable 95° 1.8 12.7 Spring return rectangular 24 100 19.2 B 130 °C Leads 20 cm 50 x 50 mm / Length 35 mm 570
Compact Rotary Solenoid CDR CDR030.000090 (with Hall sensor) bistable 90° 1.2 3.5 Electrical Rectangular 24 15 30 B 130° C Leads 20 cm 30 x 30 mm / Length 46 mm 125
Compact Rotary Solenoid CDR CDR030.000001 bistable 90° 1.2 3.5 Electrical Rectangular 24 15 30 B 130° C Leads 20 cm 30 x 30 mm / Length 46 mm 125
Compact Rotary Solenoid CDR CDR030.000060 (with Hall sensor) bistable 60° 1.5 3 Electrical Rectangular 24 15 30 B 130° C Leads 20 cm 30 x 30 mm / Length 46 mm 125
Compact Rotary Solenoid CDR CDR030.000002 (with damper) bistable 90° 1.2 3.5 Electrical Rectangular 24 15 30 B 130° C Leads 20 cm 30 x 30 mm / Length 46 mm 125
