Compact Rotary Solenoid CDR

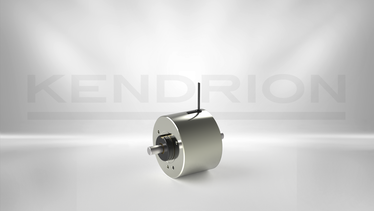

CDR030.000002 (with damper)
The CDR series stands out as a bistable rotary solenoid, featuring a straightforward and cost-effective design that suits various applications. Equipped with an integrated permanent magnet, it maintains stable end positions without the need for power, while the ball bearing guarantees smooth and wear-free operation.
Our basic model, the CDR030.00001, boasts a 30mm diameter and a 90° rotation angle. For more flexibility, we offer variants with 45° and 60° rotation angles to cater to your specific requirements. Additionally, we provide options for integrating a hall sensor to monitor functionality and dampers to reduce noise during switching.
Want to learn more about how the rotary solenoids work and their application?
Technical details
| Description | Value |
|---|---|
| Design | bistable |
| Rotation angle | 90° |
| Inital torque | 1.2 Ncm |
| End torque | 3.5 Ncm |
| Return mechanism | Electrical |
| Housing type | Rectangular |
| Nominal voltage | 24 V |
| Duty cycle | 15 % |
| Power consumption | 30 W |
| Thermal class | B 130° C |
| Connection | Leads 20 cm |
| Dimensions | 30 x 30 mm / Length 46 mm |
| Solenoid weight | 125 g |
