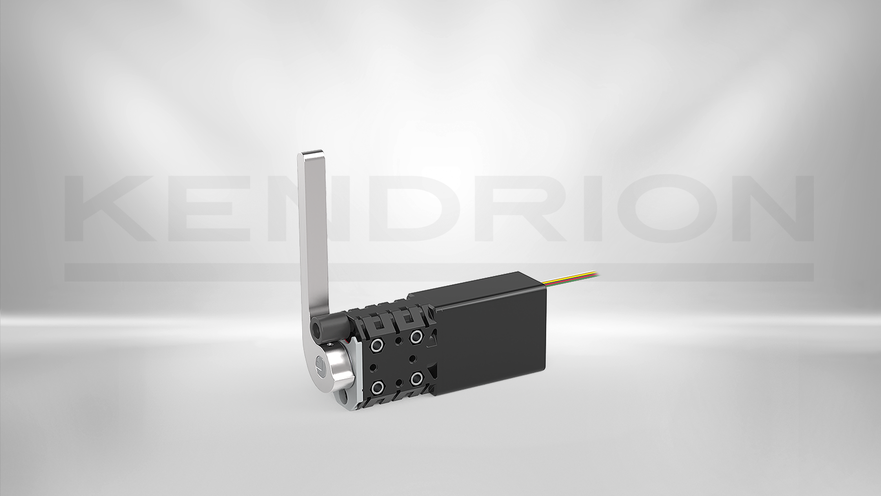

Rotary Solenoid BSM043-03 (left-rotating)
BSM043.000003 - with hall sensor, free leads
The BSM043-03 bistable rotary magnet has been specially designed as a perfect solution for safe storage and retrieval as well as transport of goods. The assembly consists of a rotary magnet with a 90° angle of rotation, to the axis of which an aluminum slider is attached. The BSM043-03 with Hall sensor and free strands is available as a left-rotating version (BSM043.00003) or as a right-rotating version (BSM043.00004).
The standard version of the BMS043 is supplied with a plastic housing. The BSM043 is also available with a metal housing (BSM043.00001 / BSM043.00002) to meet the highest requirements for lateral force load-bearing capacity.
Want to learn more about how the BSM043 work and it's application in shuttle systems?
Technical details
| Description | Value |
|---|---|
| Design | bistable |
| Rotation angle | 90° |
| Return mechanism | Electrical |
| Duty cycle | 50 % |
| Housing type | Rectangular, plastic housing |
| Nominal voltage | 24 V |
| Power consumption | 17 W |
| Thermal class | B 130° C |
| Connection | Leads 10 cm |
| Dimensions | 43 x 26 mm / Length 111 mm |
