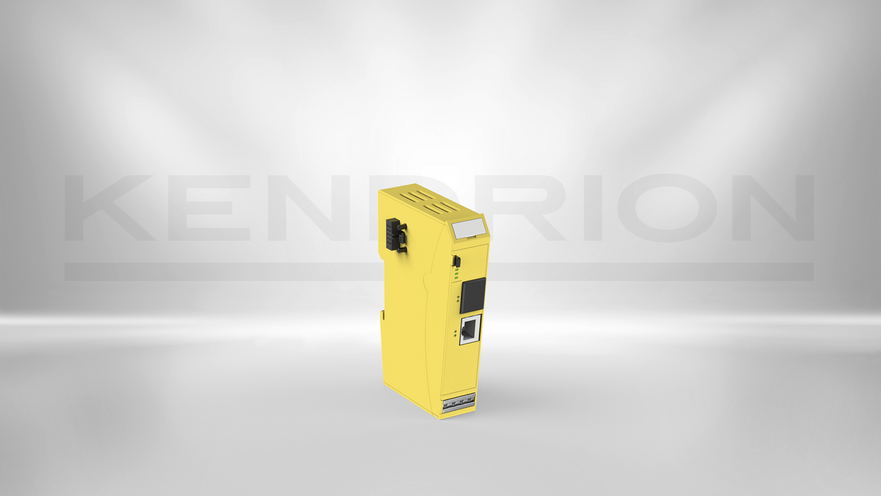

Kuhnke FIO Safety PLC EXT
694 332 00
The Safety PLC is a high-performance safety PLC for use in EtherCAT-based automation systems. It meets the requirements of IEC 61508 up to SIL3 and DIN EN ISO 13849 up to Performance Level e.
Programming is carried out centrally via the main control system with CODESYS version 3.5 SP16 or higher. Communication is implemented via EtherCAT.
An integrated EtherCAT out enables the direct connection of external EtherCAT participants as well as other FSoE participants and supports the modular design of safety-related systems.
An SD card supports quick device replacement in the event of service.
The integrated floating point unit (FPU) enables powerful calculations even with complex safety functions.
The Safety PLC meets the requirements of IEC 61508 SIL3 and DIN EN ISO 13849 PLe.
- Meets the requirements of IEC 61508 up to SIL 3 and DIN EN ISO 13849 up to Performance Level e (PLe)
- Programming with CODESYS from version 3.5 SP16
- Central safety programming via the main controller via EtherCAT
- Integrated EtherCAT Out for connecting external EtherCAT and other FSoE participants
- SD card support for easy device replacement in case of service
- ntegrated Floating Point Unit (FPU) for high-performance calculations
Technical details
| Description | Value |
|---|---|
| Function | functional safety PLC with integrated EtherCAT-Out |
| Model | Control cabinet module |
| Product status | Standard product |
| Field bus interfaces | EtherCAT LVDS / Safety over EtherCAT (FSoE) / EtherCAT out |
| Software | CODESYS V3.5 SP16 or higher with integrated safety function modules |
| Status indication | Status LEDs (EtherCAT, Safety, Power) |
| Housing material | Aluminium frame, plastic housing |
| Dimensions (W x H x D) | 25 x 120 x 90 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | Supply via E-bus |
| Operating temperature | 0 ... +55°C |
| Immunity | Zone B according to EN 61131-8 |
| Certifications | CE, cULus, TÜV certified (EN ISO 13849-1:2023, EN 61508:2010) |
