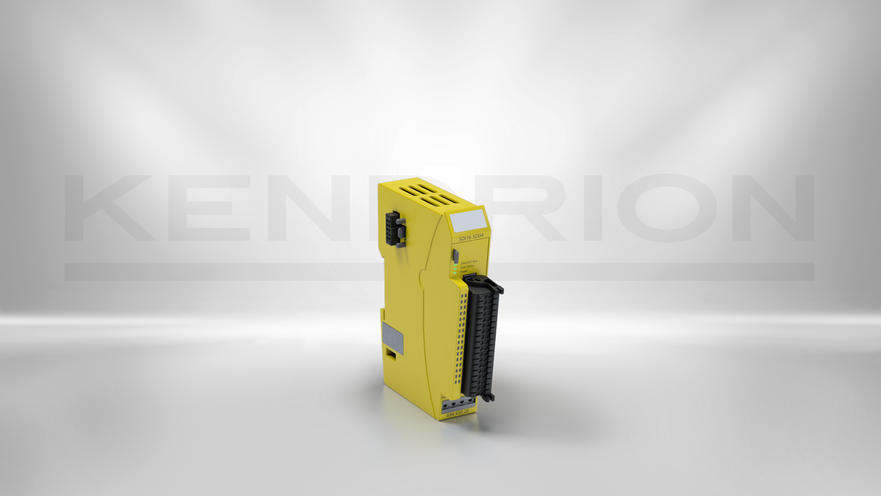

Kuhnke FIO Safety IO
SDI16-SDO4
694 430 20
Kuhnkes FIO Safety SDI16/SDO2 is a safety I/O terminal featuring 16 safe digital input channels and four safe digital output channels. This expansion module from Kuhnke's FIO range easily integrates in any EtherCAT® network. 16 inputs pick up sensor readings via floating 24 VDC contacts while four outputs send up to 0.5 A of current per channel to 24 VDC actuators. In case the EtherCAT terminal detects a fault it changes to a safe state (fail safe). The module meets the requirements of IEC 61508 SIL3 and DIN EN ISO 13849 PL e.
- Safety over EtherCAT (FSoE)
- 16 safe inputs 24 VDC
- 4 safe outputs 0.5 A
- IEC 61508 SIL3 and DIN EN ISO 13849 PL e
Technical details
| Description | Value |
|---|---|
| Function | functional safety IO |
| Model | Control cabinet module |
| Digital I/Os (integrated) | safe inputs: 16 SDI / safe outputs: 4 SDO 0.5A (OSSD) |
| Product status | Standard product |
| Field bus interfaces | EtherCAT / FSoE |
| Type of connection | female plug with PUSH IN spring connection |
| Status indication | LEDs allocated to the point of termination |
| Housing material | Aluminium frame, plastic housing |
| Dimensions (W x H x D) | 25 x 120 x 90 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | 24 (-20% / +25%) VDC |
| Operating temperature | 0 ... +55 |
| Immunity | Zone B according to EN 61131-8 |
| Certifications | CE, UL |
