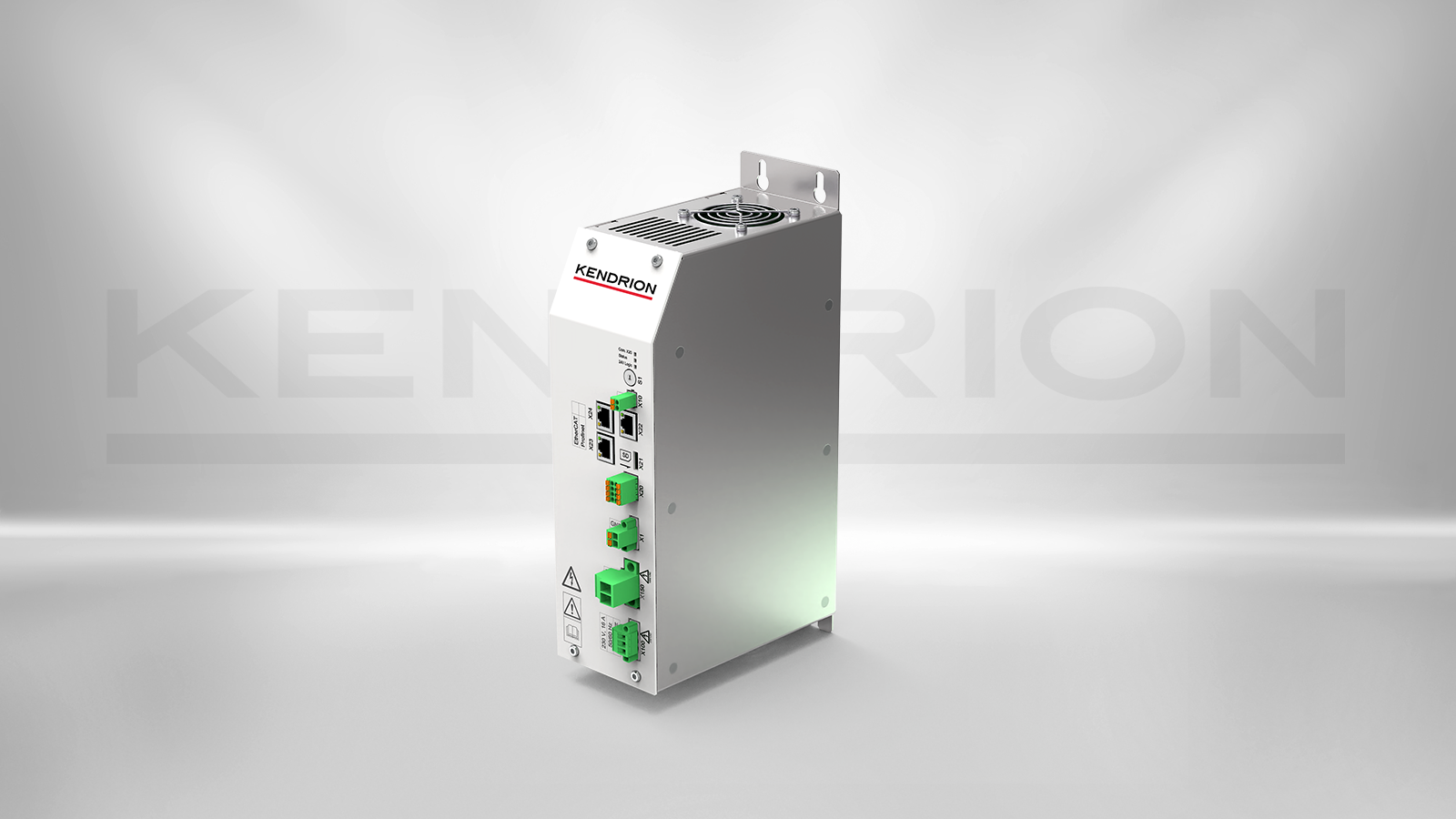

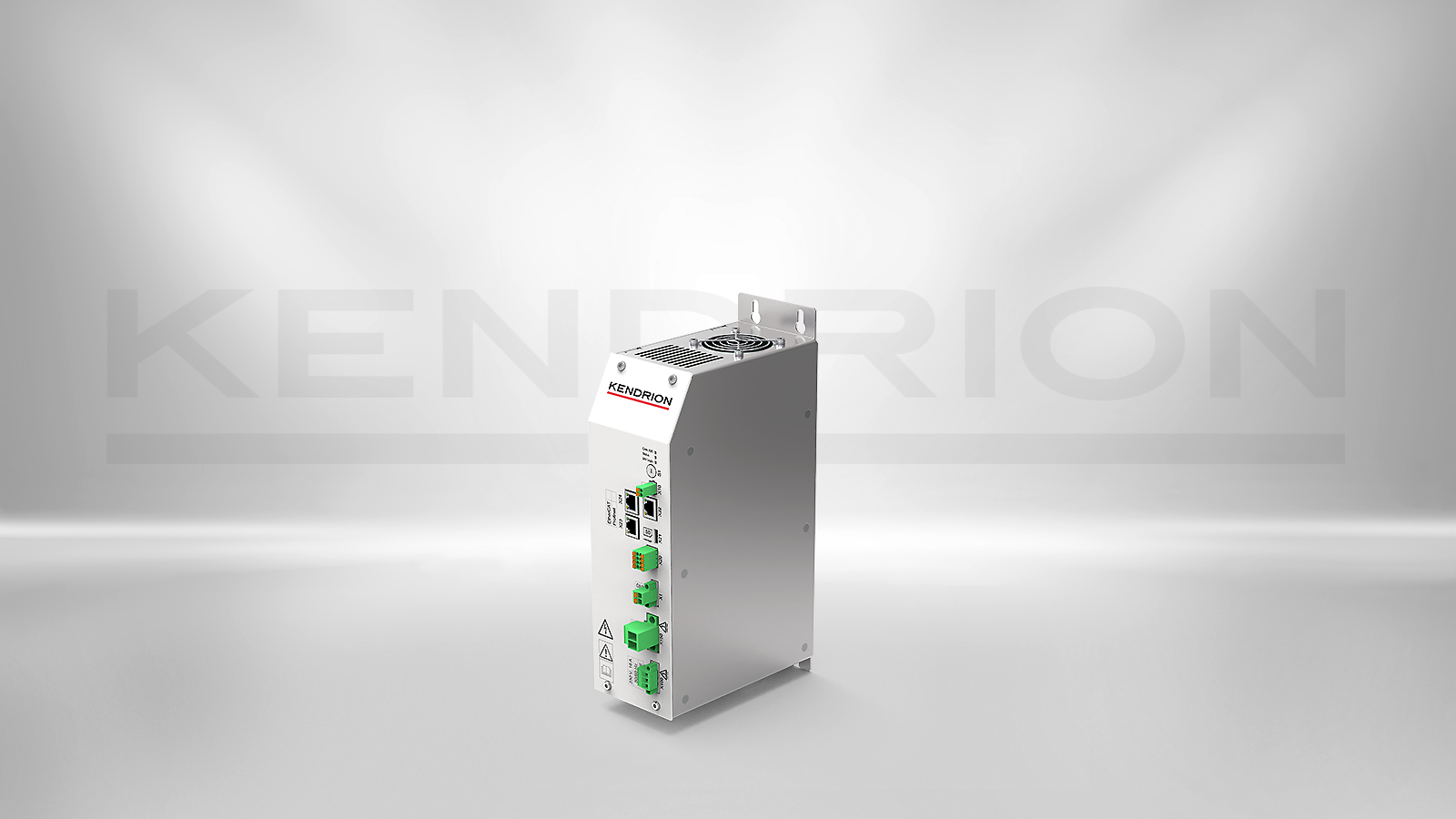

SHS Induction generator
1 x 2,5 kW
610 611 00
1
2
The SHS induction generator is designed for low-power, low-channel applications. The power supply is provided by the 230 VAC AC grid. An integrated current control system allows it to be used with different inductors and applications. High efficiencies are achieved using modern semiconductor switches. Commissioning is quick and easy via an integrated web server. The connection to a higher-level control system is possible via various fieldbus interfaces. The PT1000 input can be used to record the actual temperature. In conjunction with the integrated controllers, a closed loop operation can be realized.
- Flexible current-controlled and efficient resonance operation
- Industrial-grade, rugged device design
- PT1000 Temperature Measurement Input
- Fieldbus CANopen optional Profinet or EtherCAT
- Extensive control and diagnostic functions
- SD card interface for maintenance and updates
Technical details
| Description | Value |
|---|---|
| Device type | MHS Induction Generator |
| Functions | Integrated power measurement, short circuit detection, DC link monitoring, automatic frequency tuning, resonant frequency monitoring, current control |
| Load type | specific induction coils |
| Number of channels | 1 Channel |
| Operating power | 1 x up to 2.5 kW |
| Product status | In preparation |
| Field bus interfaces | CANopen, optional PROFINET or EtherCAT |
| Interfaces | 1 x RS485 + 1 x CAN, 1 x Ethernet 10/100 Mbit – RJ45, 1 x μSD(HC) card slot |
| Operating frequency | 2 ... 25 kHz, automatic operating point determination |
| Supply voltage | 230 VAC +10% /-15%; 50/60 Hz; Network configuration TT or TN |
| Modul bus | Data communication via CAN |
| Cooling | Passive air cooling |
| Mounting | Prepared for installation on cabinet mounting plates |

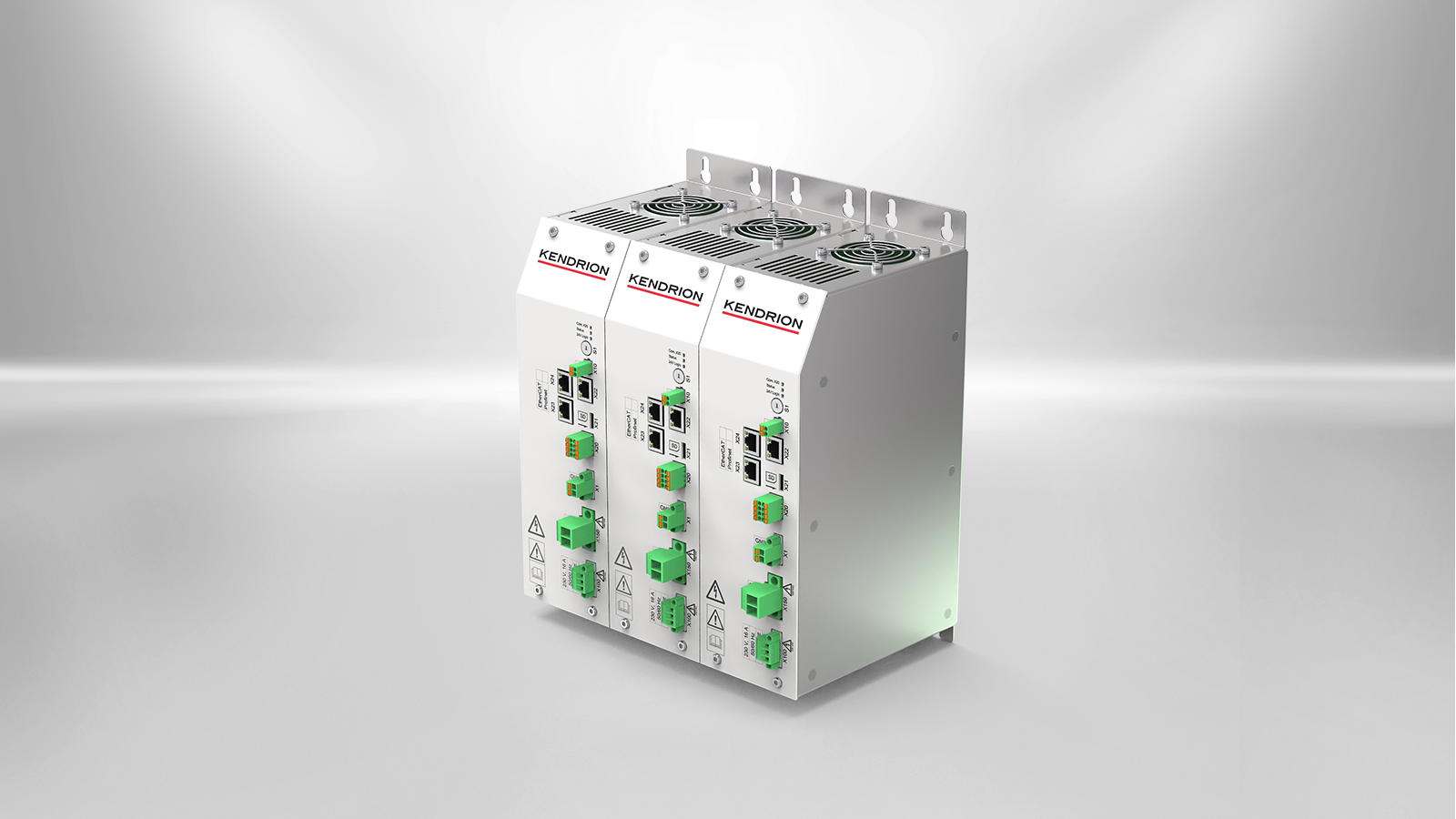

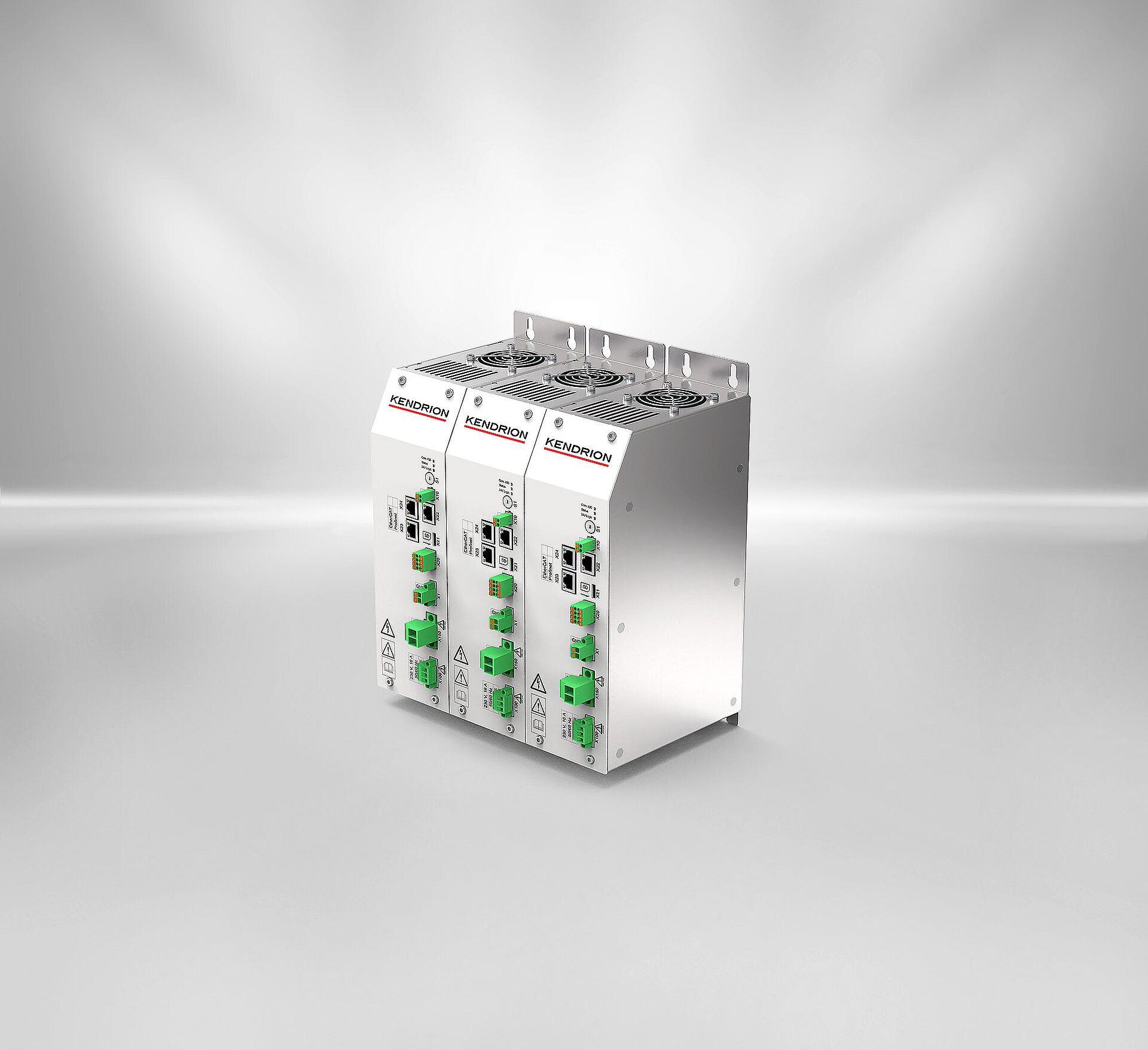

| IP-Protection Class | IP 20, Device for mounting in a closed, metallic control cabinet, side-by-side installation |
| Dimensions (W x H x D) | Book Size steel housing with stainless steel cover, (323 x 90 x 176) |
| Operating temperature | In vertical installation position: 0°C ... 45°C |
| Certifications | CE, (NRTL Certification by TÜV SÜD for UL61010 in preparation) |
| Maximum channel power | 100 - 3000 W |
