Emission‑free induction heating systems from Kendrion are used in a wide range of industrial applications. Induction heating systems provide thermal power within a very short time. The heat is distributed uniformly within the workpiece, reaches temperatures of up to 300 °C, and can be dynamically adjusted to process requirements.
Modular Induction Heating Systems – Design and Integration
The Kendrion portfolio includes modular induction heating systems (MHS) and compact induction heating units (CHS). Modular systems consist of a central controller and up to seven daisy‑chainable induction generators. Integration into the machine control system is achieved via PROFINET®, CANopen®, or EtherCAT®. The controller manages control, monitoring, and—depending on configuration—the regulation of the heating channels using integrated PID controllers. All devices are designed for control cabinet installation.
Compact Devices and Custom Solutions
Compact induction heating units combine power, control, and regulation functions within a single enclosure. These units are suitable for applications with low to medium power requirements. In addition, Kendrion develops customer‑specific induction heating solutions for special technical requirements.
Products
(9)
|
Title
|
Type
|
Device type
|
Functions
|
Field bus interfaces
|
Product status
|
Interfaces
|
Modul bus
|
Status indication
|
Integrated I/Os
|
Housing material
|
IP-Protection Class
|
Mounting
|
Dimensions (W x H x D)
|
Supply voltage
|
Operating temperature
|
Certifications
|
Load type
|
Number of channels
|
Operating power
|
Operating frequency
|
Cooling
|
Power density
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

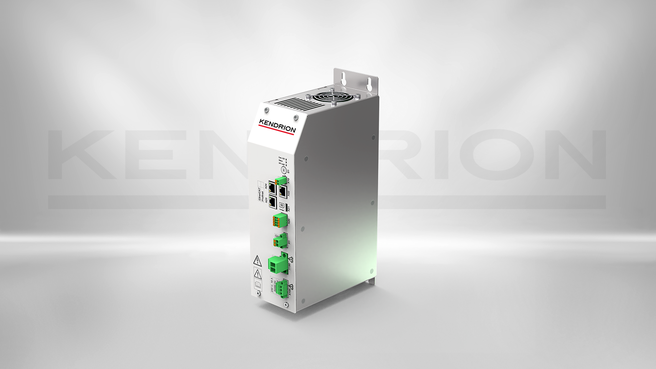

SHS Induction generator 1 x 2,5 kW |
610 611 00 | MHS Induction Generator | Integrated power measurement, short circuit detection, DC link monitoring, automatic frequency tuning, resonant frequency monitoring, current control | CANopen, optional PROFINET or EtherCAT | In preparation | 1 x RS485 + 1 x CAN, 1 x Ethernet 10/100 Mbit – RJ45, 1 x μSD(HC) card slot | Data communication via CAN | - | - | - | IP 20, Device for mounting in a closed, metallic control cabinet, side-by-side installation | Prepared for installation on cabinet mounting plates | Book Size steel housing with stainless steel cover, (323 x 90 x 176) | 230 VAC +10% /-15%; 50/60 Hz; Network configuration TT or TN | In vertical installation position: 0°C ... 45°C | CE, (NRTL Certification by TÜV SÜD for UL61010 in preparation) | specific induction coils | 1 | 1 x up to 2.5 kW | 2 ... 25 kHz, automatic operating point determination | Passive air cooling | 100 | |
|

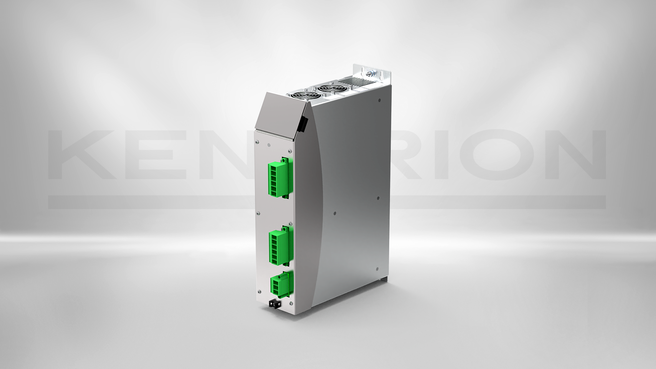

MHS Induction generator 6 x 3 kW |
610 660 12 | MHS Induction generator | Integrated power measurement, short circuit detection, DC link monitoring, automatic frequency tuning, resonance frequency monitoring | - | System product | - | Data communication via CAN, electronic supply 24 VDC | - | - | - | IP 20, Device for mounting in a closed, metallic control cabinet | Prepared for installation on cabinet mounting plates | Book Size steel housing with stainless steel cover, (451 x 105 x 313) | 3 x 400 VAC +10% /-15%; 50/60 Hz; Network configuration TT or TN | In vertical installation position: 0°C ... 35°C | CE, NRTL Certification by TÜV SÜD for UL61010 | specific induction coils | 6 | 6 x up to 3 kW, total power 18 kW (depends on the operating frequency) | 2 ... 25 kHz, automatic operating point determination | Forced air cooling, power loss approx. 250W | 100 | |
|
|
MHS Induction generator 4 x 3,5 kW |
610 640 01 | MHS Induction generator | Integrated power measurement, short circuit detection, DC link monitoring, automatic frequency tuning, resonance frequency monitoring | - | System product | - | Data communication via CAN, electronic supply 24 VDC | - | - | - | IP 20, Device for mounting in a closed, metallic control cabinet | Prepared for installation on cabinet mounting plates | Book Size steel housing with stainless steel cover, (451 x 105 x 313) | 3 x 400 VAC +10% /-15%; 50/60 Hz; Network configuration TT or TN | In vertical installation position: 0°C ... 35°C | CE, NRTL Certification by TÜV SÜD for UL61010 | specific induction coils | 4 | 4 x up to 3, 5 kW, total power 14 kW (depends on the operating frequency) | 2 ... 25 kHz, automatic operating point determination | Forced air cooling, power loss approx. 250W | 100 | |
|
|
MHS Induction generator 4 x 4,5 kW |
610 640 30 | MHS Induction generator | Integrated power measurement, short circuit detection, DC link monitoring, automatic frequency tuning, resonance frequency monitoring | - | System product | - | Data communication via CAN, electronic supply 24 VDC | - | - | - | IP 20, Device for mounting in a closed, metallic control cabinet | Prepared for installation on cabinet mounting plates | Book Size steel housing with stainless steel cover, (451 x 105 x 313) | 3 x 400 VAC +10% /-15%; 50/60 Hz; Network configuration TT or TN | In vertical installation position: 0°C ... 35°C | CE, NRTL Certification by TÜV SÜD for UL61010 | specific induction coils | 4 | 4 x up to 4, 5 kW, total peak power 26 kW (depends on the operating frequency) | 2 ... 25 kHz, automatic operating point determination | Forced air cooling, power loss approx. 250W | - | |
|
|
MHS Induction generator 4 x 6,5 kW |
610 640 00 | MHS Induction generator | Integrated power measurement, short circuit detection, DC link monitoring, automatic frequency tuning, resonance frequency monitoring | - | System product | - | Data communication via CAN, electronic supply 24 VDC | - | - | - | IP 20, Device for mounting in a closed, metallic control cabinet | Prepared for installation on cabinet mounting plates | Book Size steel housing with stainless steel cover, (451 x 105 x 313) | 3 x 400 VAC +10% /-15%; 50/60 Hz; Network configuration TT or TN | In vertical installation position: 0°C ... 35°C | CE, NRTL Certification by TÜV SÜD for UL61010 | specific induction coils (inductance 875 μH ± 150μH) | 4 | 4 x up to 6.5 kW, total peak power 26 kW (depends on the operating frequency | 2 ... 25 kHz, automatic operating point determination | Forced air cooling, power loss max. 350W | - | |
|
|
MHS Induction generator 4 x 5 kW |
610 640 03 | MHS Induction generator | Integrated power measurement, short circuit detection, DC link monitoring, automatic frequency tuning, resonance frequency monitoring | - | System product | - | Data communication via CAN, electronic supply 24 VDC | - | - | - | IP 20, Device for mounting in a closed, metallic control cabinet | Prepared for installation on cabinet mounting plates | Book Size steel housing with stainless steel cover, (451 x 105 x 313) | 3 x 400 VAC +10% /-15%; 50/60 Hz; Network configuration TT or TN | In vertical installation position: 0°C ... 35°C | CE, NRTL Certification by TÜV SÜD for UL61010 | specific induction coils | 4 | 4 x up to 5 kW, total peak power 26 kW (depends on the operating frequency) | 2 ... 25 kHz, automatic operating point determination | Forced air cooling, power loss max. 250W | - | |
|

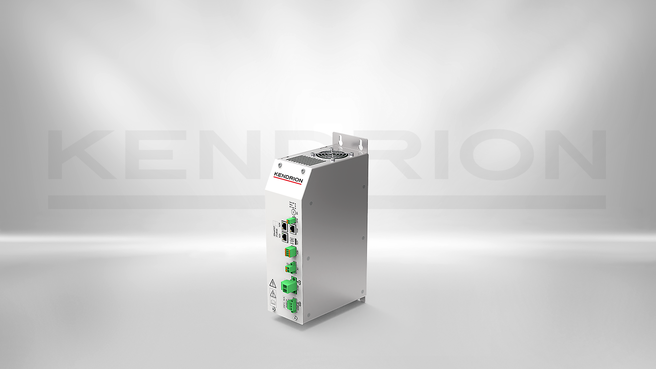

MHS Controller PROFINET | 610 610 02 | MHS Controller / fieldbus connection | Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD | PROFINET IO-Device | System product | 1 x Ethernet 10/100Mbit (on request) | Data communication via CAN, electronic supply 24 VDC | Heating system, PROFINET, CANopen, DC power supply | on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0, 5 A, Short circuit protection | module made of steel with stainless steel cover for use in a closed, metallic control cabinet | IP 20 | Prepared for left-side mounting on the power module | 451 mm x 44 mm x 286 mm | 24 VDC / -10% +10% (21, 6 V – 26, 4) | In vertical installation position: 0°C ... 35°C | CE, UL, PROFINET | - | - | - | - | - | - | |
|
|
MHS Controller CANopen | 610 610 10 | MHS Controller / fieldbus connection | Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD | CANopen Node | System product | 1 x Ethernet 10/100Mbit (on request) | Data communication via CAN, electronic supply 24 VDC | Heating system, Fieldbus, CANopen, DC power supply | on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0, 5 A, Short circuit protection | module made of steel with stainless steel cover for use in a closed, metallic control cabinet | IP 20 | Prepared for left-side mounting on the power module | 451 mm x 44 mm x 286 mm | 24 VDC / -10% +10% (21, 6 V – 26, 4) | In vertical installation position: 0°C ... 35°C | CE, UL | - | - | - | - | - | - | |
|
|
MHS Controller EtherCAT | 610 610 20 | MHS Controller / fieldbus connection | Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD | EtherCAT SubDevice | System product | 1 x Ethernet 10/100Mbit (on request) | Data communication via CAN, electronic supply 24 VDC | Heating system, EtherCAT, CANopen, DC power supply | on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0, 5 A, Short circuit protection | module made of steel with stainless steel cover for use in a closed, metallic control cabinet | IP 20 | Prepared for left-side mounting on the power module | 451 mm x 44 mm x 286 mm | 24 VDC / -10% +10% (21, 6 V – 26, 4) | In vertical installation position: 0°C ... 35°C | CE, UL | - | - | - | - | - | - |
