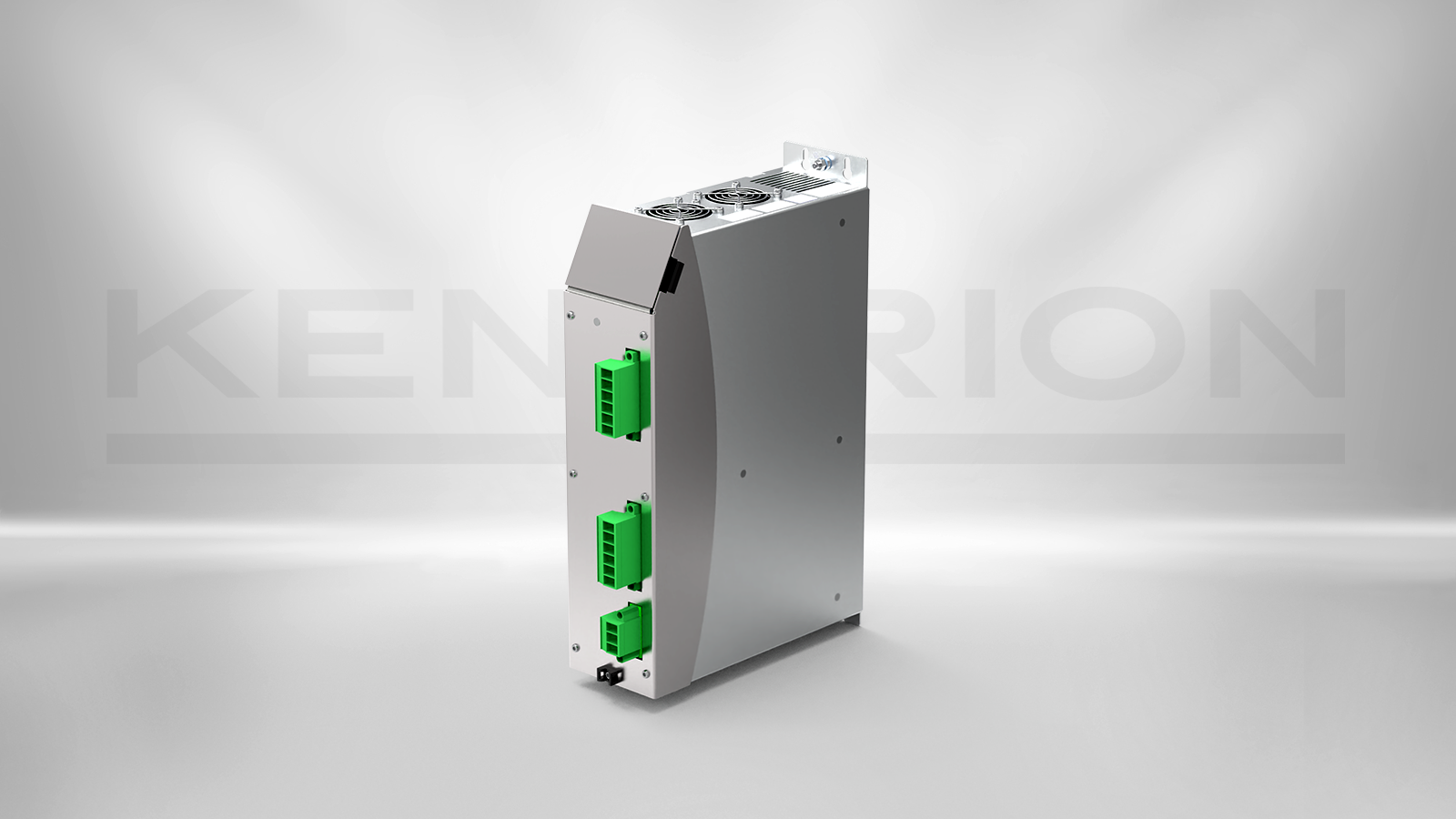

MHS Induction generator 4 x 7,5 kW

610 640 00

The induction generator is designed to supply up to 4 induction coils (inductors) with a power of up to 7.5 kW each.
The device operates on the three-phase mains with a voltage of up to 400 V and a frequency of 50/60 Hz.
The mains current is rectified and fed to the DC link, from which the inductors are individually supplied.
The output power is controlled via the Kendrion controller of the modular industrial heating system. The setting range from 0% to 100% can be selected individually for each channel.
By using state-of-the-art semiconductor switches, the output stages achieve high efficiencies, at working frequencies up to 25 kHz.

  • Independent control of 4 induction coils
  • Industrial-grade, rugged device design
  • 26 kW continuous power
  • Control connection via MHS controller

Technical details

Description Value
Functions Integrated power measurement, short circuit detection, DC link monitoring, automatic frequency tuning, resonance frequency monitoring

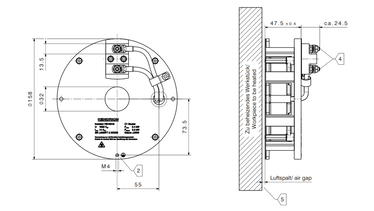

Load type specific induction coils (inductance 875 μH ± 150μH)
Number of channels 4 channels individually controllable
Operating power 4 x up to 7.5 kW, total peak power 30 kW, continuous power 26 kW
Operating frequency 2 ... 25 kHz, automatic operating point determination
Supply voltage 3 x 400 VAC +10% /-15%; 50/60 Hz; Network configuration TT or TN
Modul bus Data communication via CAN, electronic supply 24 VDC
Cooling Forced air cooling, power loss max. 350W
Mounting Prepared for installation on cabinet mounting plates
IP-Protection Class IP 20, Device for mounting in a closed, metallic control cabinet
Dimensions (W x H x D) Book Size steel housing with stainless steel cover, (451 x 105 x 313)
Operating temperature In vertical installation position: 0°C ... 35°C
