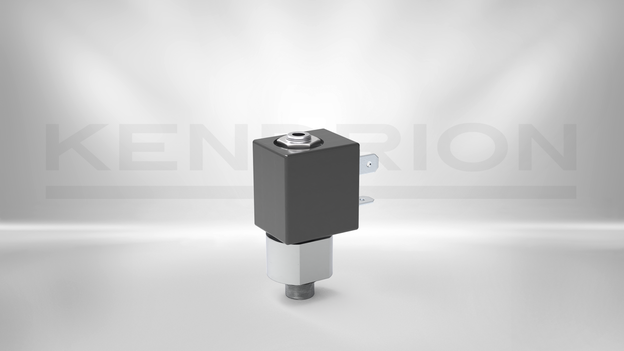

Solenoid Valve Type 65
65.120
These valves can be supplied in a wide variety of standard versions, e.g.: in three different base shapes (standard, flange and screw-in base), with connection for plug-in socket prefabricated or with flying leads, as 3/2 way NO/NC valve (2/2 way on request), also available as low watt version and with nominal orifice of 0.5, 1, 1.6 or 2 mm. For plug-in sockets, current indication and erasing diode please see valve accessories
Technical details
| Description | Value |
|---|---|
| Function | 3/2-way NC |
| Pressure range | 0 - 8 bar |
| Nominal orifice | 1.0 mm |
| Type of pneumatic connection | G1/8 |
| Kv-value | 0.45 l/min |
| Size | 20 mm |
| Actuation type | electrically actuated |
| Duty cycle | 100 % ED |
| Type of electric connection | Plug-in socket |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Nominal power | 5.0 W |
| Nominal voltage | 24 V DC |
| Returning mechanism | Spring |
| Protection class | IP65 |
| Ambient temperature | -10 ... +60 °C |
| Valve type | Poppet valve |
| Materials | Base: Brass, seal: NBR |
| Actuation | directly controlled |
| Identification number | 12170 |
