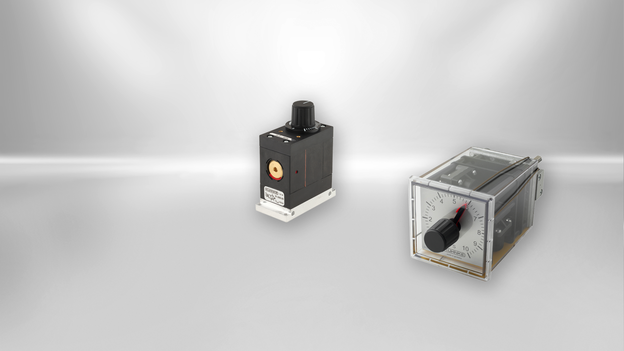

Pneumatic Timer
Precise time regulation of pneumatic signals
Pneumatic timers from Kendrion provide a fully adjustable time range from 0.3 seconds up to 100 hours depending on the type of timer. Working completely without any electrical signals, pneumatic timers from Kendrion are not rated as products under ATEX directive according to the ignition hazard assessment of EN 13463-1. Thus, they are usable in explosion-hazard areas according to IIG/IID. They work in fire protection equipment, devices for mining industry or in applications of oil and gas industry.
Kendrion pneumatic timers were formerly known as Kuhnke.
Products
(18)
show results as grid
show results as list
|
Title
|
Type
ascending
descending
|
Time intervall
ascending
descending
|
Function
ascending
descending
|
Pressure range (bar)
ascending
descending
|
Type of pneumatic connection
ascending
descending
|
Product type
ascending
descending
|
Mounting
ascending
descending
|
Medium
ascending
descending
|
Ambient temperature (°C)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Pneumatic Short Intervall Timer (3/2-way NC, subplate)
|
51.006 US | 0.5 - 60 s | 3/2-way NC | 1.5 - 8 | 1/8 NPT | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Short Intervall Timer (3/2-way NC, subplate)
|
51.006.00 | 0.5 - 60 s | 3/2-way NC | 1.5 - 8 | M5 | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|

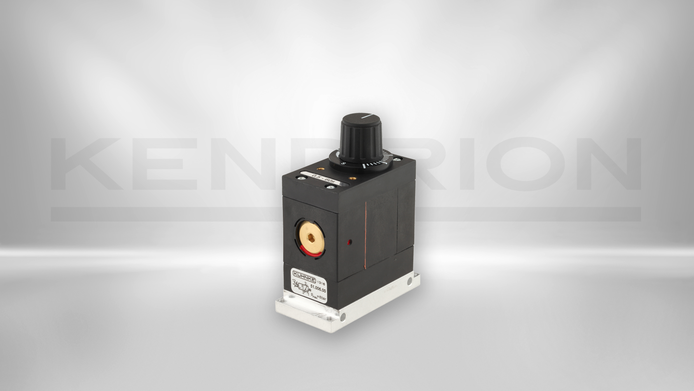

Pneumatic Short Intervall Timer (3/2-way NO, subplate)
|
51.006.01 | 0.5 - 60 s | 3/2-way NO | 1.5 - 8 | M5 | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Short Intervall Timer (3/2-way NO, subplate)
|
51.006.01 US | 0.5 - 60 s | 3/2-way NO | 1.5 - 8 | 1/8 NPT | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Short Intervall Timer (3/2-way NC, subplate)
|
51.012 US | 1 - 120 s | 3/2-way NC | 1.5 - 8 | 1/8 NPT | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Short Intervall Timer (3/2-way NC, subplate)
|
51.012.00 | 1 - 120 s | 3/2-way NC | 1.5 - 8 | M5 | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|

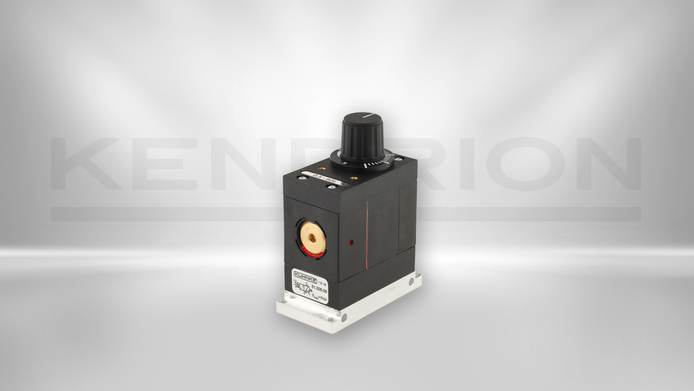

Pneumatic Short Intervall Timer (3/2-way NO, subplate)
|
51.012.01 | 1 - 120 s | 3/2-way NO | 1.5 - 8 | M5 | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|
|
Pneumatic Short Intervall Timer (3/2-way NO, subplate)
|
51.012.01 US | 1 - 120 s | 3/2-way NO | 1.5 - 8 | 1/8 NPT | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Short Intervall Timer (3/2-way NC, subplate)
|
51.018.00 | 3 - 180 s | 3/2-way NC | 1.5 - 8 | M5 | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|

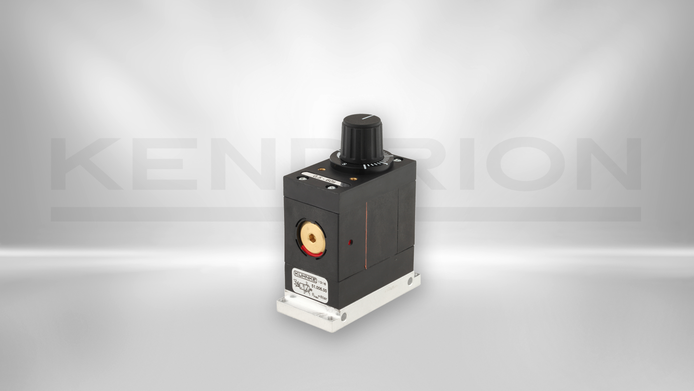

Pneumatic Short Intervall Timer (3/2-way NO, subplate)
|
51.018.01 US | 3 - 180 s | 3/2-way NO | 1.5 - 8 | 1/8 NPT | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|
|
Pneumatic Short Intervall Timer (3/2-way NO, subplate)
|
51.018.01 | 3 - 180 s | 3/2-way NO | 1.5 - 8 | M5 | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|
|
Pneumatic Short Intervall Timer (3/2-way NC, subplate)
|
51.018.00 US | 3 - 180 s | 3/2-way NC | 1.5 - 8 | 1/8 NPT | Timer | Subplate | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Timers (5/2-way, panel mounting)
|
54.021 | 0.3 - 10 s | 5/2-way | 0 - 10 | M5 | Timer | Panel mounting | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Timers (5/2-way, panel mounting)
|
54.022 | 3 - 100 s | 5/2-way | 0 - 10 | M5 | Timer | Panel mounting | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Timers (5/2-way, panel mounting)
|
54.023 | 0.3 - 10 min | 5/2-way | 0 - 10 | M5 | Timer | Panel mounting | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Timers (5/2-way, panel mounting)
|
54.024 | 3 - 100 min | 5/2-way | 0 - 10 | M5 | Timer | Panel mounting | Compressed air, non lubricated | -10 ... +60 | to the product |
|
Pneumatic Timers (5/2-way, panel mounting)
|
54.025 | 0.3 - 10 h | 5/2-way | 0 - 10 | M5 | Timer | Panel mounting | Compressed air, non lubricated | -10 ... +60 | to the product |
|

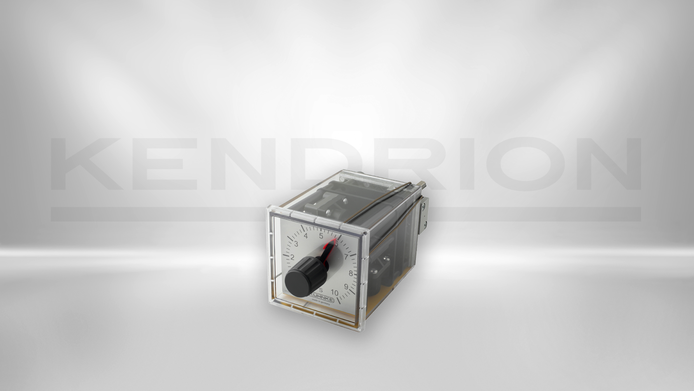

Pneumatic Timers (5/2-way, panel mounting)
|
54.026 | 3 - 100 h | 5/2-way | 0 - 10 | M5 | Timer | Panel mounting | Compressed air, non lubricated | -10 ... +60 | to the product |
