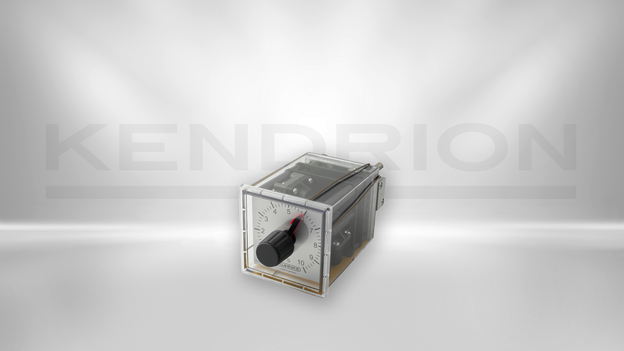

Pneumatic Timers (5/2-way, panel mounting)
54.024
The simple and compact design of this miniature PE converter with fixed switch-on pressure of 0.8 bar allows its use in various applications such as medical technology, dental treatment units, robotics, analysis systems, process and safety engineering. Easy mounting and high functional reliability are other advantages. By using silver contacts a long lifetime can be ensured even at high switching frequencies. As a result of the fire-risk evaluation according to EN 13463-1, the pneumatic timers are not subject to ATEX regulations. This means they may also be used in explosion hazardous areas as defined in IIG/ IID.
Technical details
| Description | Value |
|---|---|
| Time intervall | 3 - 100 min |
| Function | 5/2-way |
| Pressure range | 0 - 10 bar |
| Type of pneumatic connection | M5 |
| Product type | Timer |
| Mounting | Panel mounting |
| Medium | Compressed air, non lubricated |
| Ambient temperature | -10 ... +60 °C |
