Locking solenoids
Locking units for protective devices

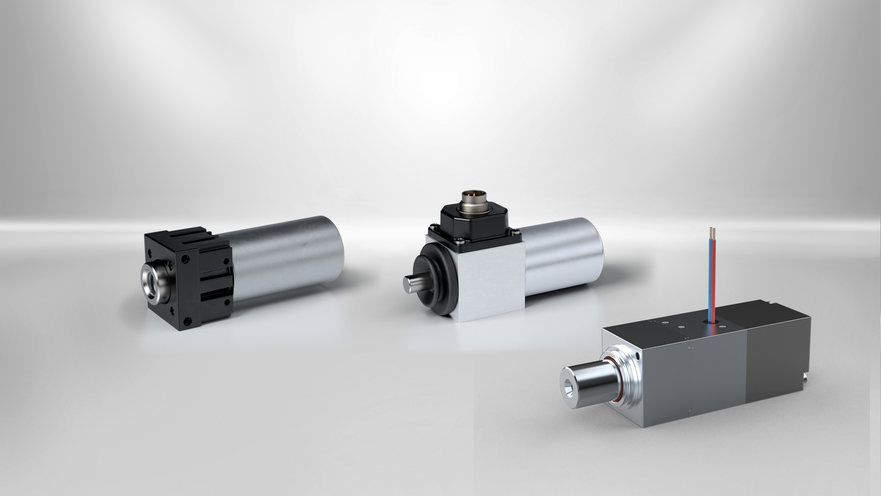

Locking solenoids from Kendrion were developed specifically for use in protective devices. They are characterized by a compact design, long service life and a high lateral force load capacity.
The locking solenoids are available in different designs for the following applications:
- Devices unlocked without voltage, in which a spring resets the locking bolt.
- Devices locked without voltage, in which an electromagnetic force resets the locking bolt.
Electromagnetic locking units from Kendrion are used in protective devices of machines and automation equipment as well as direct function in sequence controls.
Products
(14)
|
Title
|
Type
|
Nominal voltage (V)
|
Locking mode
|
Radial work load bearing (N)
|
Duty cycle (%)
|
Power consumption (W)
|
Stroke (mm)
|
Inital force (N)
|
Return mechanism
|
Emergency opener
|
Thermal class
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Locking Solenoid LHP035 (CL) | LHP0350291 | 24 | currentless locked | 3000 | 100 | 14.1 | 15 | 7.8 | Spring | no | F 155 | |
|
Locking Solenoid LLV040 (CU) | 1333420 | 24 | currentless unlocked | 1200 | 100 | 12.8 | 8 | 5 | Spring | no | F 155 | |
|
Locking Solenoid LLV040 (CL) | 1333424 | 24 | currentless locked | 1200 | 100 | 12.8 | 8 | 5 | Spring | no | F 155 | |
|
Locking Solenoid LLV050 (CL) | 1333547 | 24 | currentless locked | 3000 | 100 | 18.3 | 10 | 7 | Spring | no | F 155 | |
|
Locking Solenoid LLV050 (CU) | 1333550 | 24 | currentless unlocked | 3000 | 100 | 18.5 | 10 | 7 | Spring | no | F 155 | |
|
Locking Solenoid LLV050 (CU) | 1333560 | 24 | currentless unlocked | 3000 | 100 | 18.3 | 10 | 7 | Spring | no | F 155 | |
|
Locking Solenoid LLV050 (CL) | 1333585 | 24 | currentless locked | 3000 | 100 | 18.3 | 10 | 7 | Spring | no | F 155 | |
|
Locking Solenoid LLV050 (CL) | 1333580 | 24 | currentless locked | 3000 | 100 | 18.3 | 10 | 7 | Spring | yes | F 155 | |
|
Locking Solenoid LLV060 (CU) | 1333655 | 24 | currentless unlocked | 4000 | 100 | 30 | 15 | 12 | Spring | yes | F 155 | |
|
Locking Solenoid 57x80 (CL) | 17040001 | 24 | currentless locked | 1500 | 100 | 16 | 12 | 17.5 | Spring | no | B 130 | |
|
Locking Solenoid 57x80 (CU) | 17040002 | 24 | currentless unlocked | 1500 | 100 | 16 | 12 | 17.5 | Spring | no | B 130 | |
|
Locking Solenoid 57x80 (CL) AC | 17040003 | 230V AC | currentless locked | 1500 | 100 | 21.5 | 12 | 17.5 | Spring | no | B 130 | |
|
Locking Solenoid 57x80 (CU) AC | 17040004 | 230V AC | currentless unlocked | 1500 | 100 | 21.5 | 12 | 17.5 | Spring | no | B 130 | |
|
|
Locking Solenoid LHP035 | LHP0350284 | 24 | currentless unlocked | 3000 | 100 | 14.1 | 15 | 7.8 | Spring | no | F 155 |
